Passenger Compartment Harness Routing - Right Front (2 of 2)

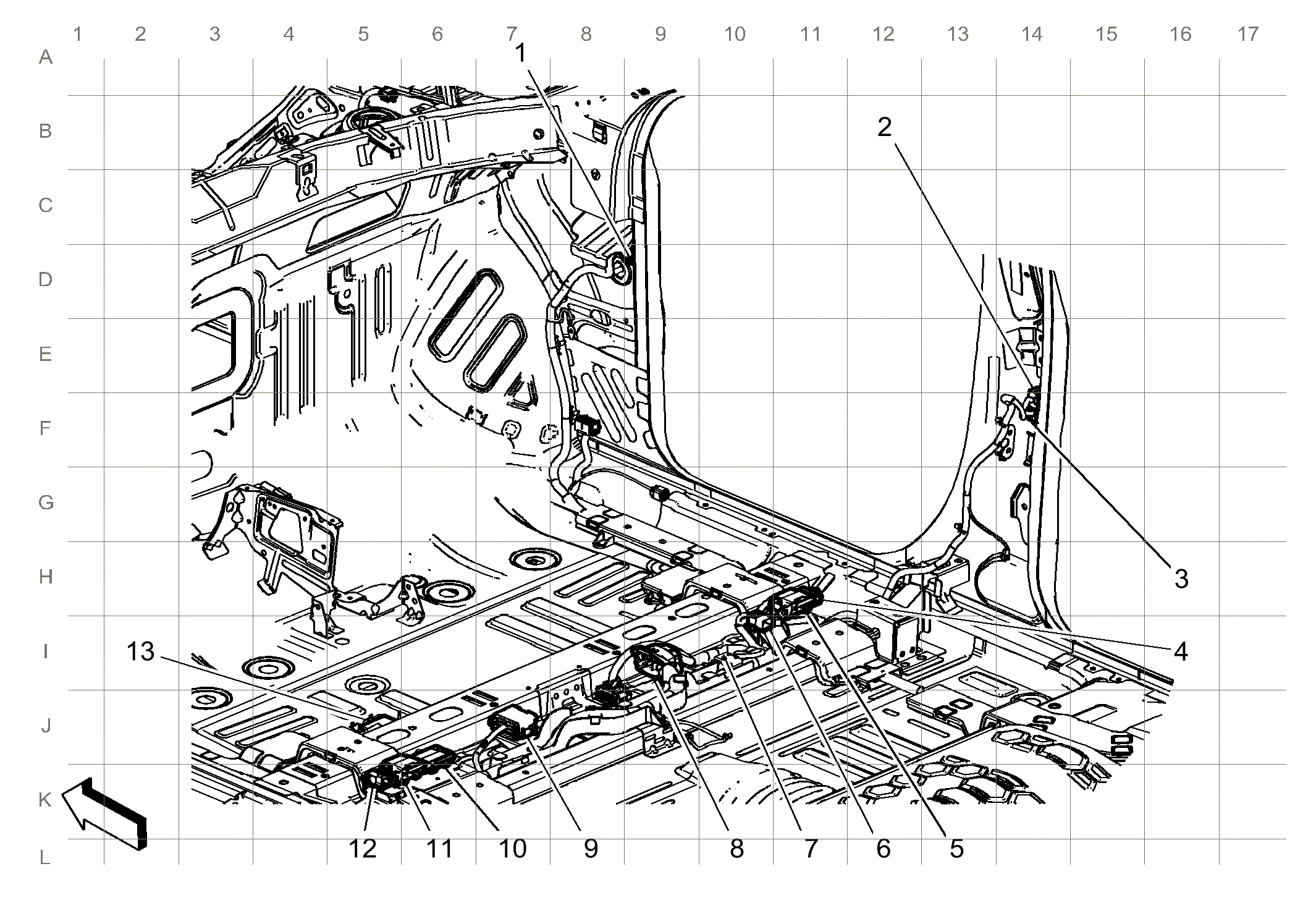

Fig 1: View Of Passenger Compartment Harness Routing Diagram - Right Front (2 Of 2)
GM2298315Courtesy of GENERAL MOTORS COMPANY
Items
1:  X600 X600 Body Harness to Passenger Door Harness
2:  X800 X800 Body Harness to Right Rear Door Harness
3:  X800 X800 Body Harness to Right Rear Door Harness
4:  X316 X316 Passenger Seat Harness to Body Harness (AG2)X316 Passenger Seat Harness to Body Harness (without AG2)
5:  X320 X320 Passenger Seat Cushion Harness (AG2) to Body HarnessX320 Passenger Seat Harness to Body Harness (without AG2)
6:  X310 (UWG) X310 Passenger Seat Back Harness to Passenger Seat Cushion Harness (UWG)
7:  JX300
8:  X205 X205 Instrument Panel Harness to Body Harness
9:  X301 X301 Body Harness to Floor Console Harness
10:  X309 (UWG) X309 Driver Seat Back Harness to Driver Seat Cushion Harness
11:  X315 X315 Driver Seat Harness to Body Harness
12:  X317 X317 Driver Seat Harness to Body Harness
13:  X350 X350 Fuel Tank Harness to Body Harness
