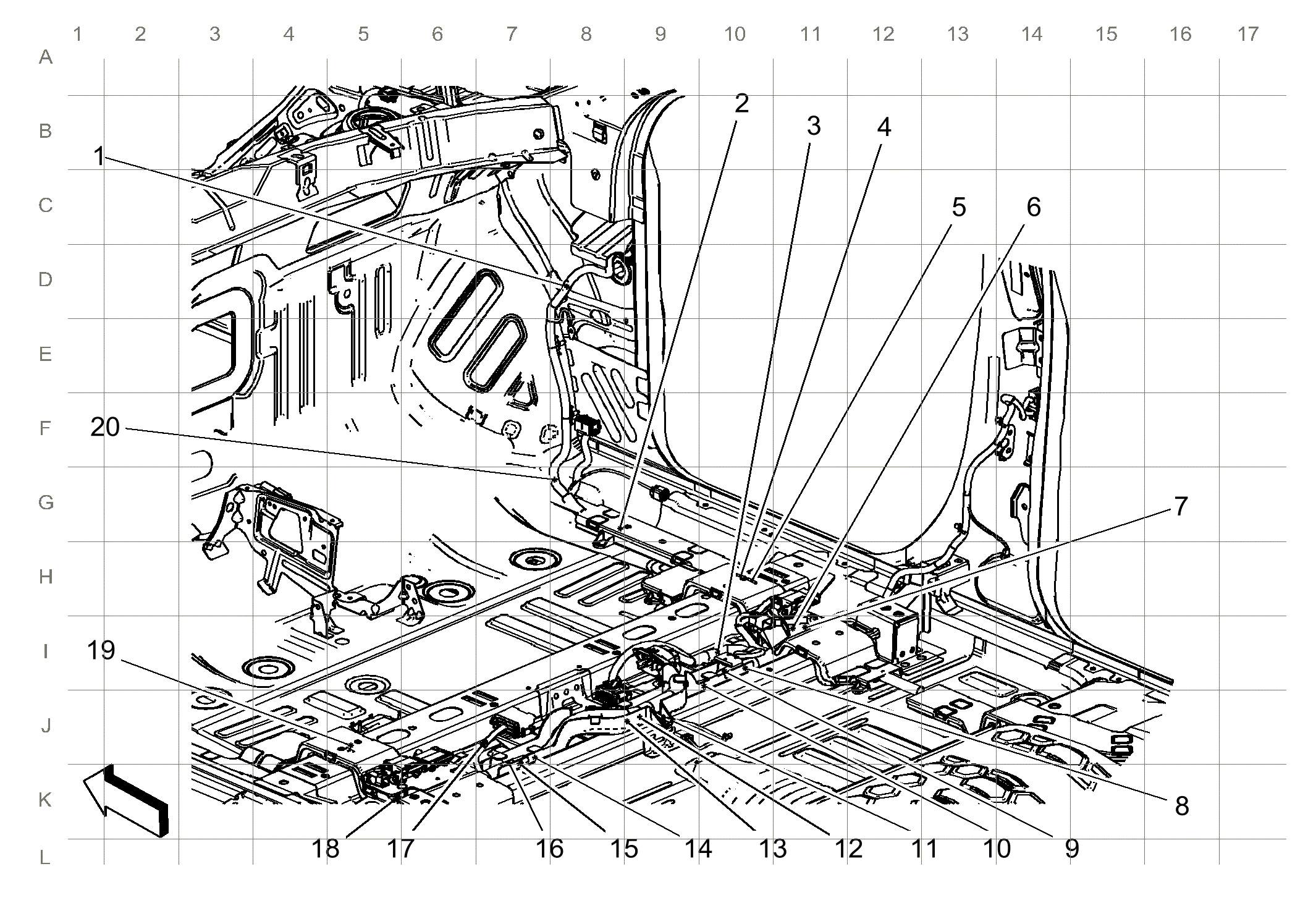

Passenger Compartment Harness Routing - Right Front (1 of 2)
Courtesy of GENERAL MOTORS COMPANY
| Items |
| 1:
J345 |
| 2:
J376 |
| 3:
J309 |
| 4:
J301 |
| 5:
J381 |
| 6:
J360 |
| 7:
J378 |
| 8:
J329 |
| 9:
J369 |
| 10:
J312 |
| 11:
J347 |
| 12:
J311 (TSQ or EAL) |
| 13:
J365 |
| 14:
J362 (UA2 or UTC) |
| 15:
J320 |
| 16:
J368 |
| 17:
J389 |
| 18:
J339 |
| 19:
J380 |
| 20:
J377 |
