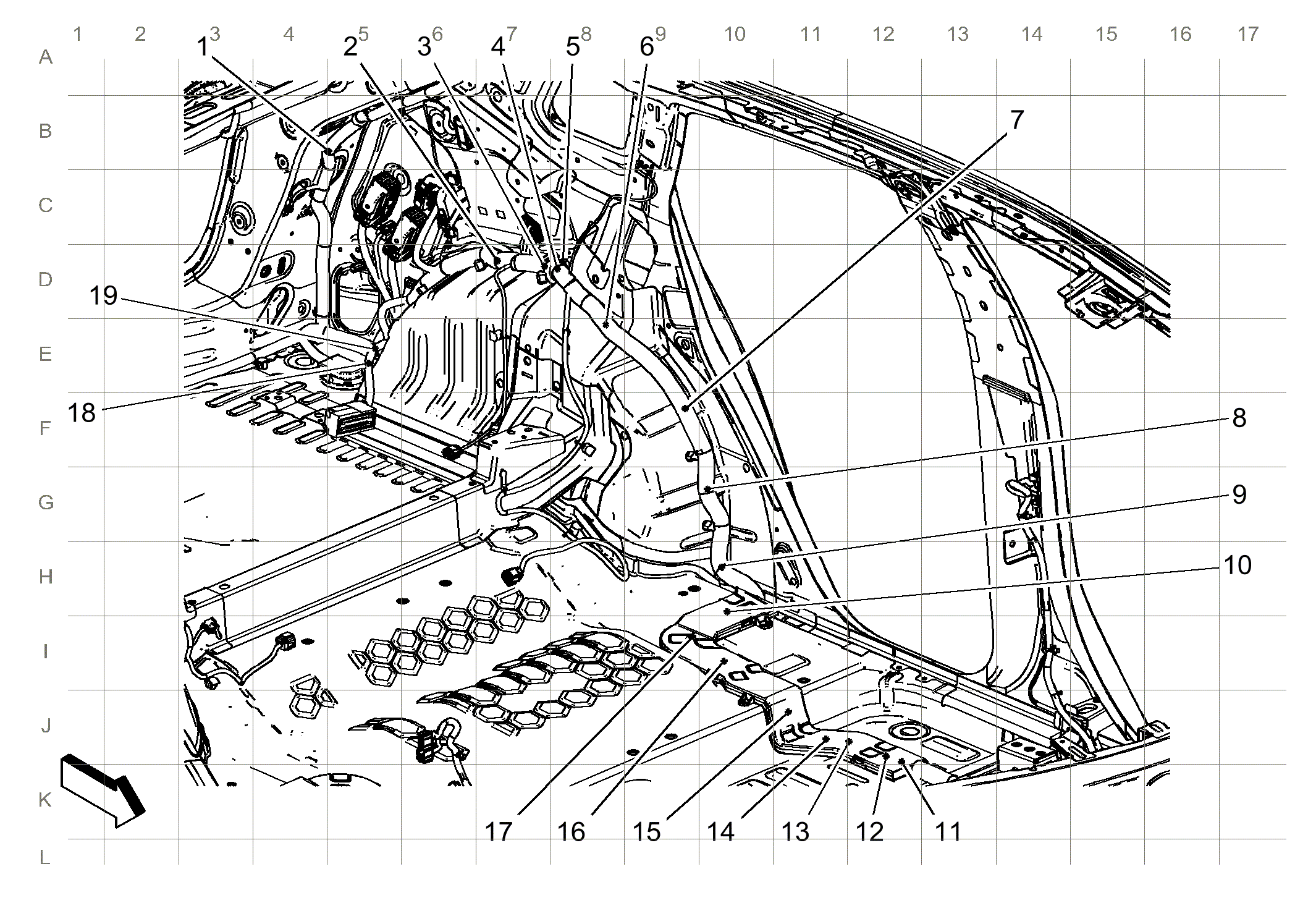

Passenger Compartment Harness Routing - Left Rear (1 of 2)
Courtesy of GENERAL MOTORS COMPANY
| Items |
| 1:
J415 |
| 2:
J307 |
| 3:
J351 (UD5 with UVC) |
| 4:
J401 |
| 5:
J348 |
| 6:
J413 |
| 7:
J406 |
| 8:
J364 |
| 9:
J338 |
| 10:
J361 (UWG) |
| 11:
J363 |
| 12:
J367 |
| 13:
J358 (KU3) |
| 14:
J342 (without ASP) |
| 15:
J343 |
| 16:
J405 |
| 17:
J359 |
| 18:
J332 |
| 19:
J331 |
