Passenger Compartment Harness Routing - Left Front

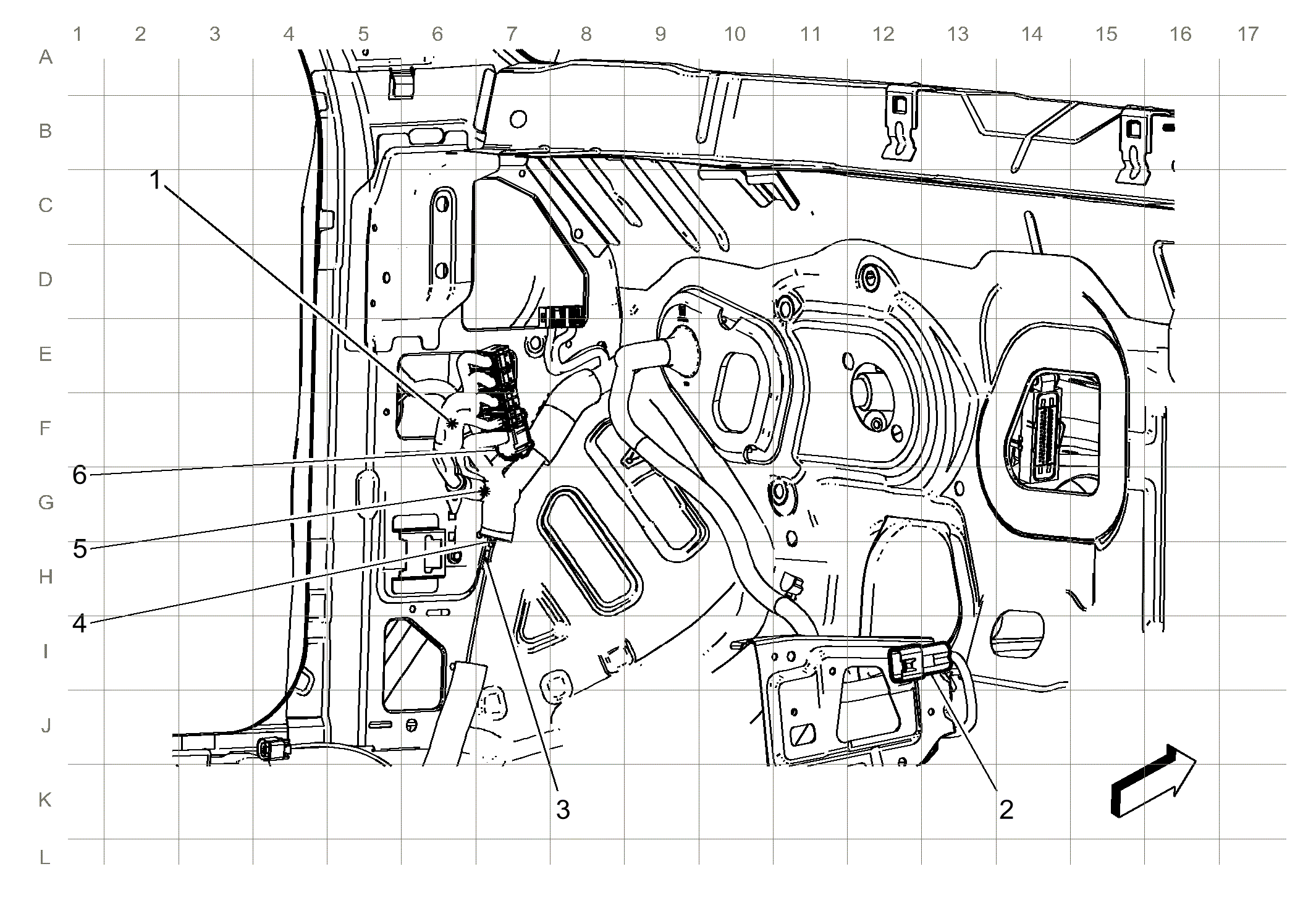

Fig 1: View Of Passenger Compartment Harness Routing Diagram - Left Front
GM2298295Courtesy of GENERAL MOTORS COMPANY
Items
1:  J229
2:  X207 X207 Instrument Panel Harness to Body Harness
3:  J366
4:  J339
5:  J380
6:  X202 X202 Body Harness to Instrument Panel Harness
