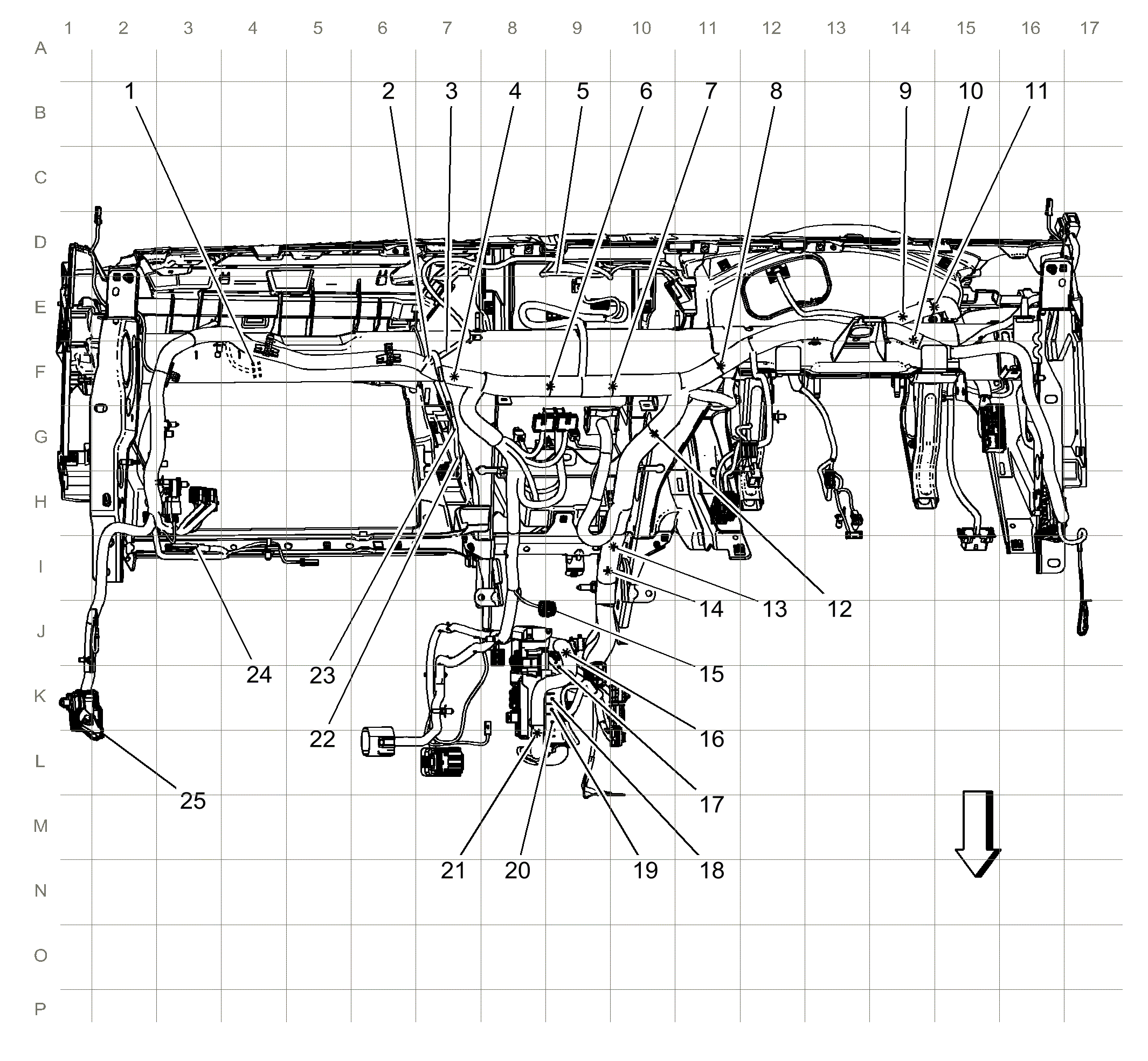

Instrument Panel Harness Routing - Rear
| Items |
|---|
| 1: X206 X206 Instrument Panel Harness to Passenger Instrument Panel Air Bag Harness |
| 2: X207 X207 Instrument Panel Harness to Body Harness |
| 3: J219 |
| 4: J204 (CJ4) |
| 5: J234 |
| 6: J230 |
| 7: J217 |
| 8: J238 |
| 9: J207 |
| 10: J227 |
| 11: J241 |
| 12: J216 |
| 13: J215 |
| 14: J220 |
| 15: X205 X205 Instrument Panel Harness to Body Harness |
| 16: J223 |
| 17: J228 |
| 18: J224 |
| 19: J226 |
| 20: J210 |
| 21: J228 |
| 22: J240 |
| 23: J208 (TSQ or EBS) |
| 24: JX200 |
| 25: X203 X203 Body Harness to Instrument Panel Harness |
