Instrument Panel Harness Routing - Front

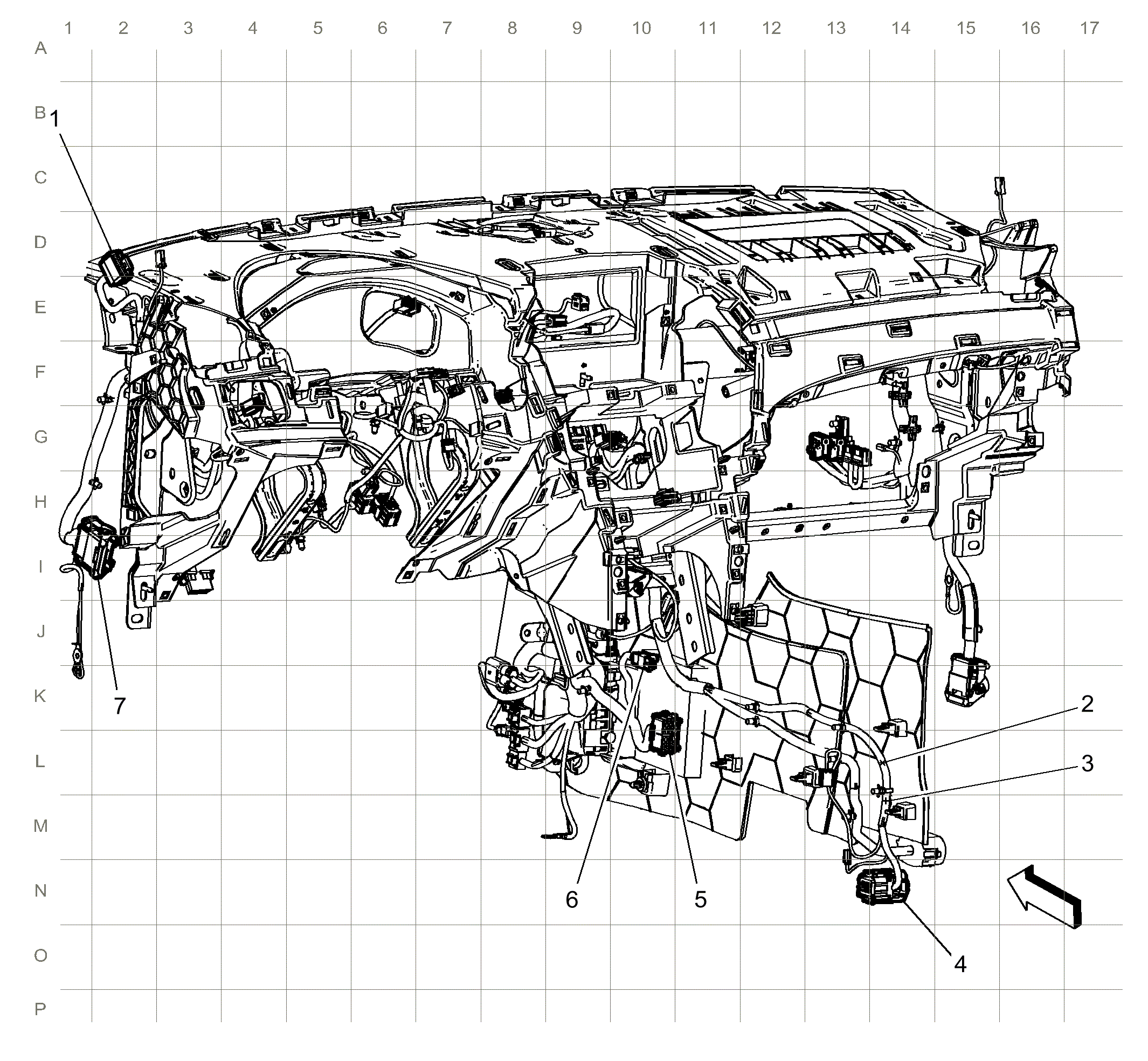

Fig 1: View Of Instrument Panel Harness Routing Diagram - Front
GM2297027Courtesy of GENERAL MOTORS COMPANY
Items
1:  X204 X204 Instrument Panel Harness to Headliner Harness
2:  J210
3:  J235
4:  X205 X205 Instrument Panel Harness to Body Harness
5:  X211 X211 Instrument Panel Harness to Floor Console Harness
6:  X207 X207 Instrument Panel Harness to Body Harness
7:  X202 X202 Body Harness to Instrument Panel Harness
