Headliner Harness Routing

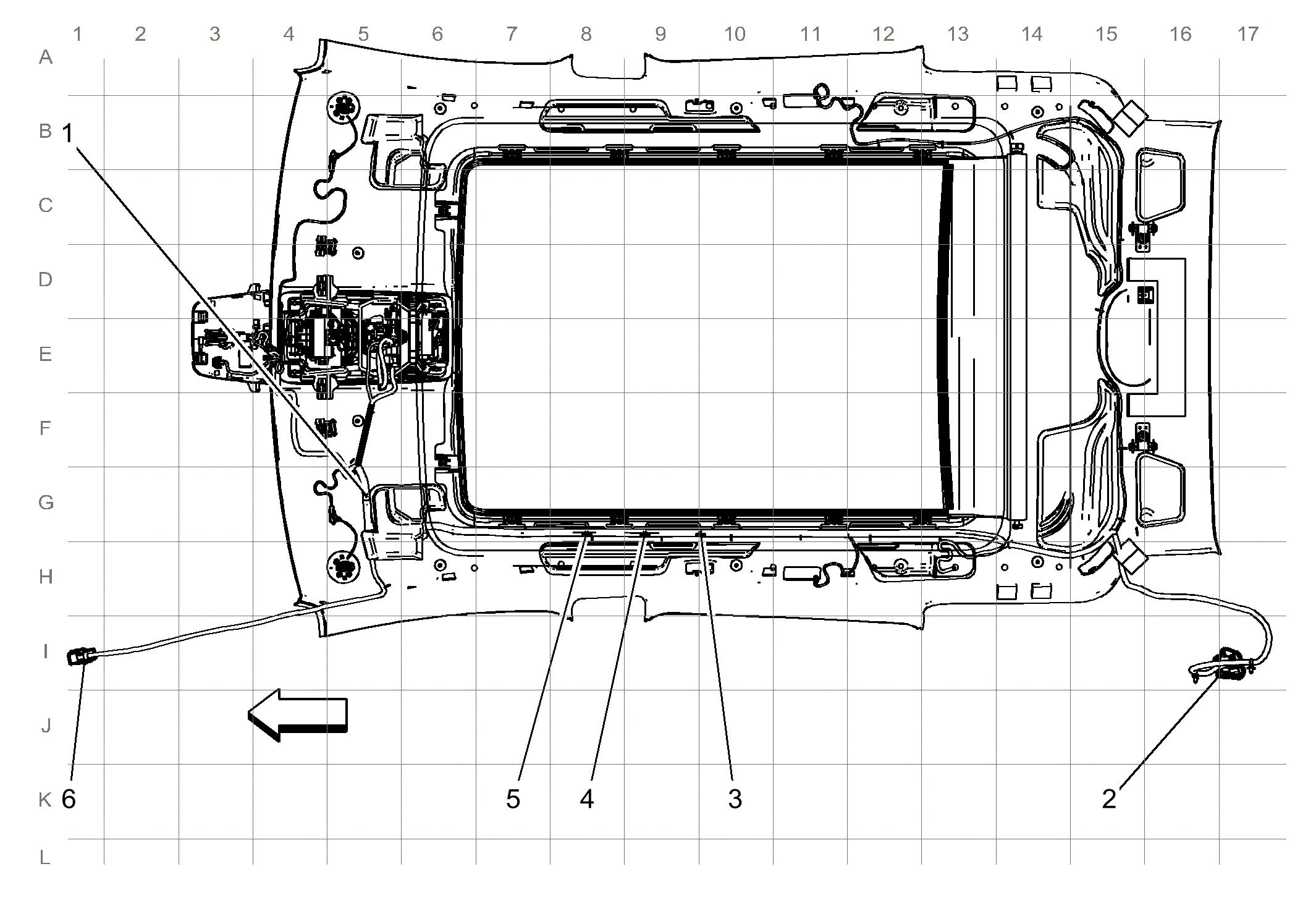

Fig 1: View Of Headliner Harness Routing Diagram
GM2298158Courtesy of GENERAL MOTORS COMPANY
Items
1:  J335
2:  X400 X400 Body Harness to Headliner Harness
3:  J356
4:  J308
5:  J306
6:  X204 X204 Instrument Panel Harness to Headliner Harness
