Forward Lamp Harness Routing Diagram - Splices

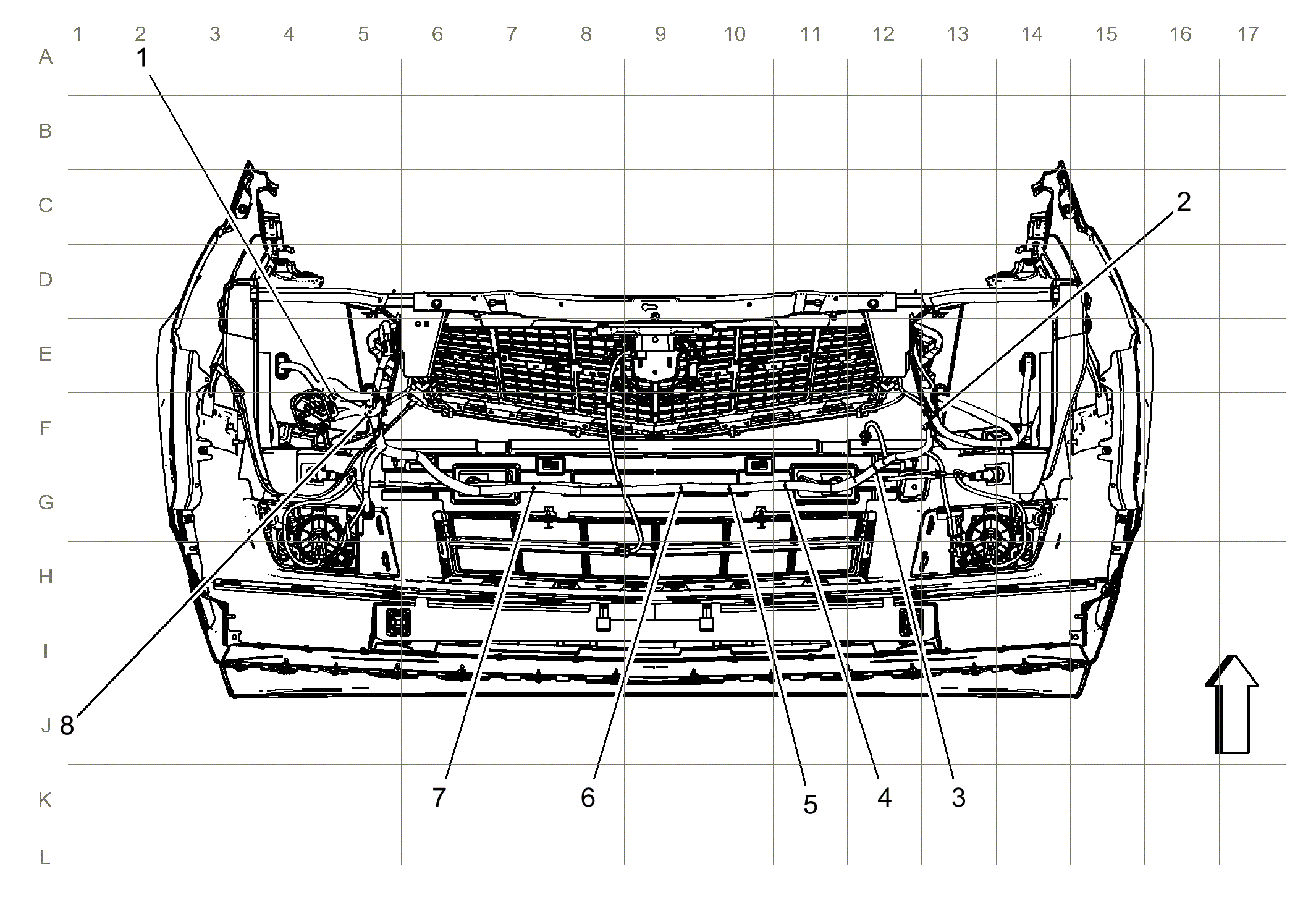

Fig 1: View Of Forward Lamp Harness Routing - Splices
GM2298552Courtesy of GENERAL MOTORS COMPANY
Items
1:  J109
2:  J120
3:  J110
4:  J115
5:  J141 (T84 or T85)
6:  J142
7:  J116
8:  J119
