Engine Harness Routing - Left Rear

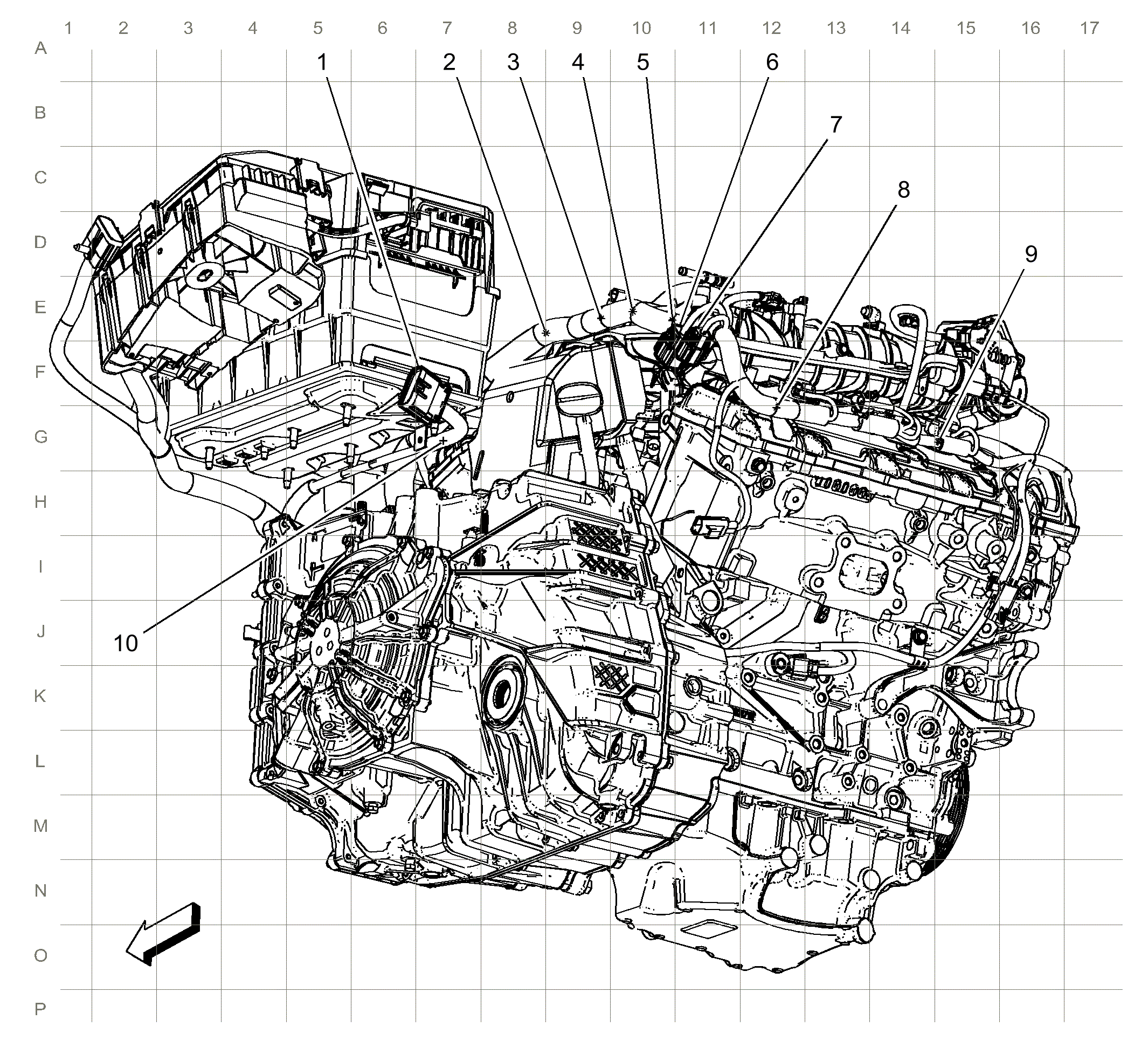

Fig 1: Identifying Engine Harness Routing Diagram - Left Rear (LF1)
GM2293977Courtesy of GENERAL MOTORS COMPANY
Items
1:  X104 X104 Body Harness to Engine Harness
2:  J108
3:  J126
4:  J127
5:  J136
6:  X161 X161 Engine Harness to Even Fuel Injector Harness
7:  X160 X160 Engine Harness to Odd Fuel Injector Harness
8:  J107
9:  J135
10:  J129
