Driver Door Harness Routing

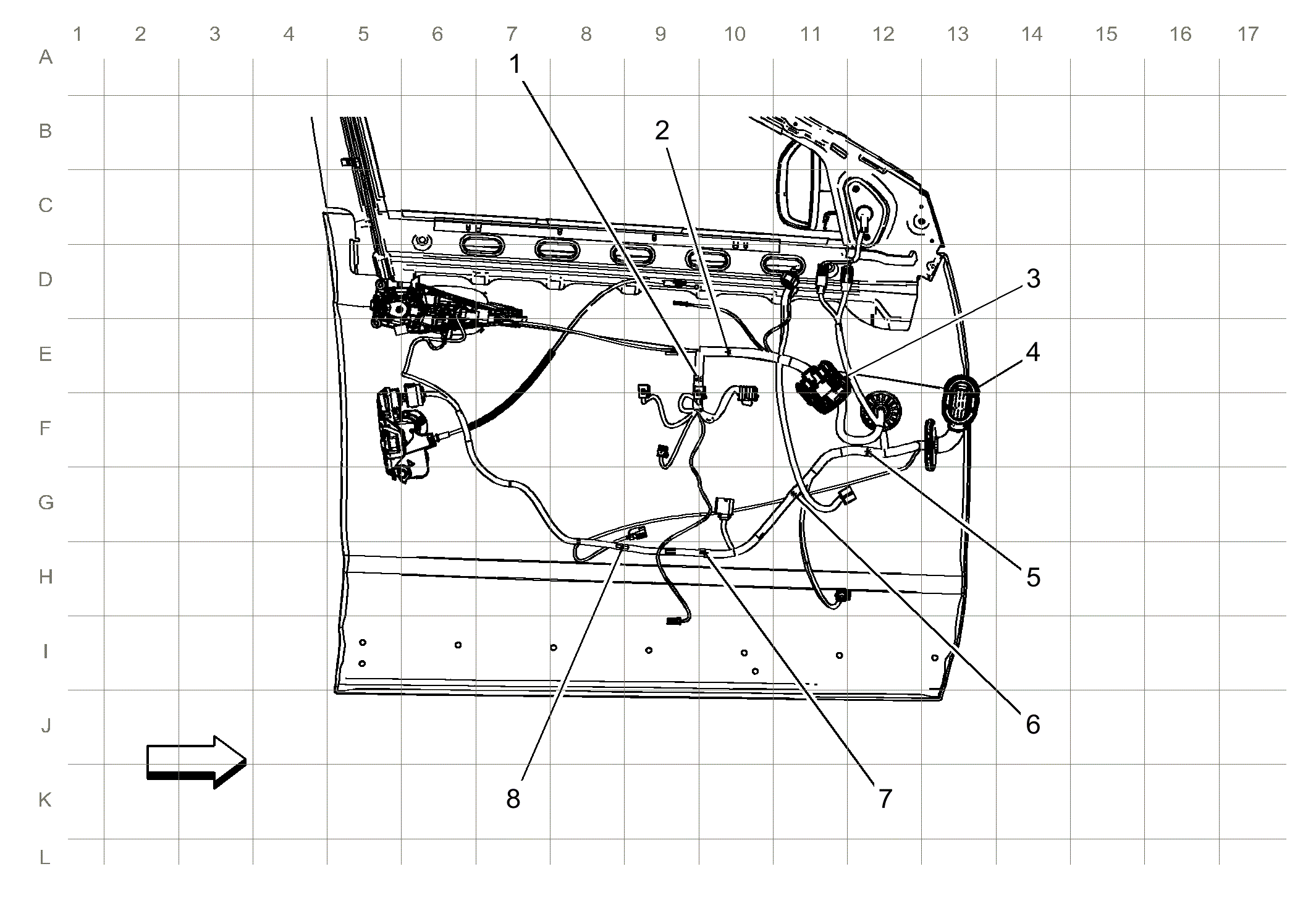

Fig 1: View Of Driver Door Harness Routing Diagram
GM2298163Courtesy of GENERAL MOTORS COMPANY
Items
1:  J505
2:  J506
3:  X505 X505 Driver Door Harness to Driver Door Trim Harness
4:  X500 X500 Body Harness to Driver Door Harness
5:  J507
6:  J502 (DR4)
7:  J504
8:  J503 (DR4)
