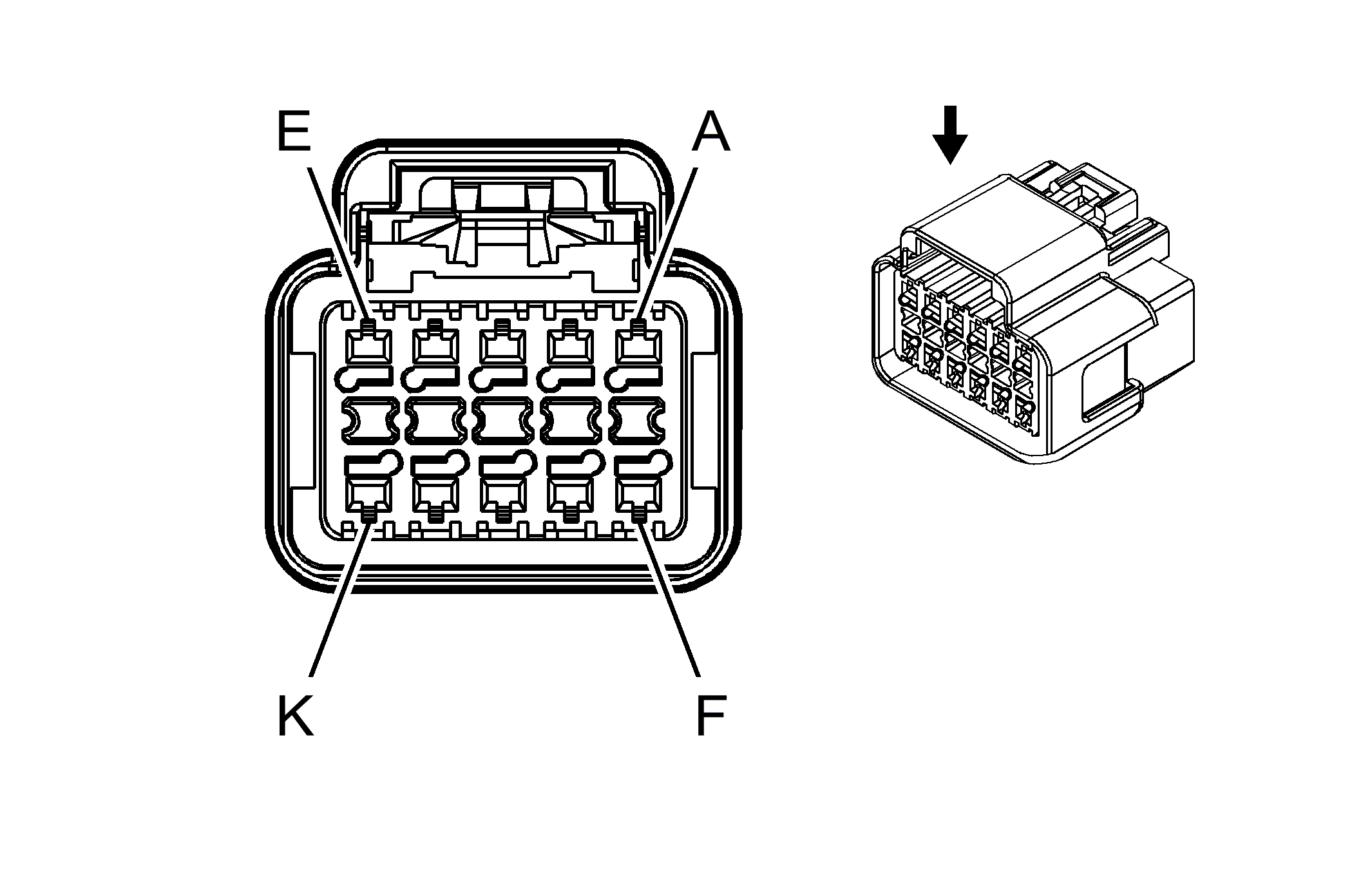

X910 Liftgate Harness to Liftgate Trim Harness

Connector Part Information Harness Type: Liftgate OEM Connector: 13668279 Service Connector: Service by Harness - See Part Catalog Description: 10-Way F GT FBT 150 Series (BK)	Connector Part Information Harness Type: Liftgate Trim OEM Connector: 15332158 Service Connector: 19153745 Description: 10-Way M 150 GT Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Available	J-35616-2A (GY)	Not Available	Not Available	Not Available	Not Available	Not Available
II	13575502	J-35616-3 (GY)	J-38125-553	15304702	12	2	4
III	13327129	J-35616-3 (GY)	J-38125-553	15304702	12	E	4
IV	13327129	J-35616-3 (GY)	J-38125-553	15304702	12	E	C

X910 Liftgate Harness to Liftgate Trim Harness

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
A	1	YE/BN	1859	I	UQS	Left Rear Midrange Speaker (+)	A	1	YE/L-GN	1855	II	UQS
B	0.5	BK/VT	5801	I	TB5	Lift Gate Object Sensor Low Reference	B	0.5	BK/VT	5801	III	TB5
C	0.5	GY/WH	3034	I	TB5	Lift Gate Shut Face Switch LED Control	C	0.5	GY/WH	3034	III	TB5
D	0.35	BK	1350	I	TB5/UQS	Ground	D	0.35	BK	1350	IV	TB5/UQS
E	1	YE/BN	1859	I	UQS	Left Rear Midrange Speaker (+)	E	1	YE/BN	1859	II	UQS
F	1	WH/BK	1959	I	UQS	Left Rear Midrange Speaker (-)	F	1	GY/D-BU	1955	II	UQS
G	0.5	D-GN	3033	I	TB5	Lift Gate Shut Face Switch Signal	G	0.5	L-GN	3033	III	TB5
H	0.5	BK	1350	I	TB5	Ground	H	0.5	BK	1350	III	TB5
J	0.35	D-GN/GY	737	I	TB5/UQS	Trunk Lamp Control	J	0.35	L-GN/GY	737	IV	TB5/UQS
K	1	WH/BK	1959	I	UQS	Left Rear Midrange Speaker (-)	K	1	WH/BK	1959	II	UQS
