X900 Body Harness to Liftgate Harness

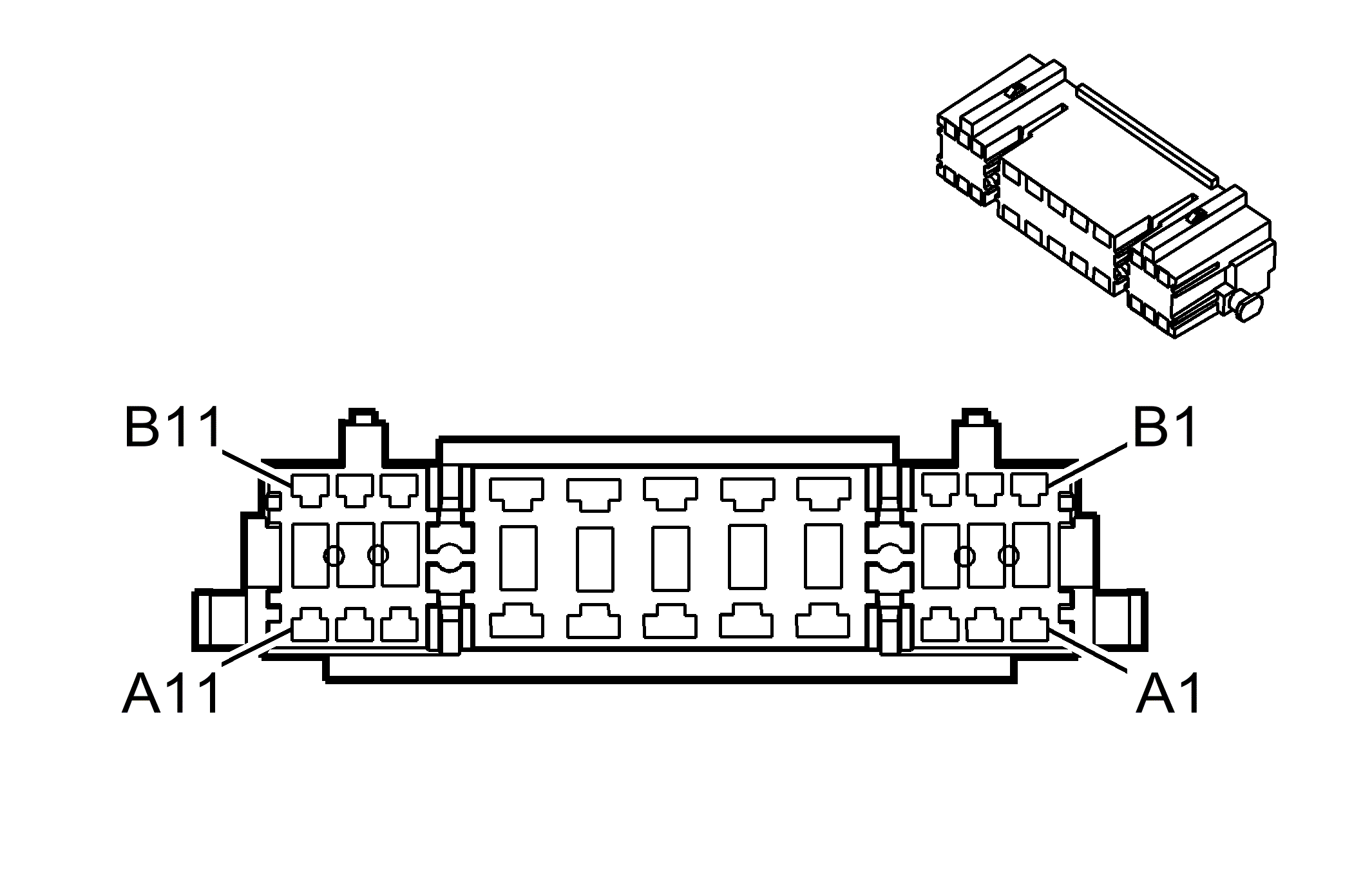

GM2889075
GM655773
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13839172
  • Service Connector: 19300896
  • Description: 22-Way F 150, 280 FBT Series (GY)
 Connector Part Information
  • Harness Type: Liftgate
  • OEM Connector: 15317322
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 22-Way M GT 150/280 Series (L-GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13575492 J-35616-2A (GY) J-38125-29 Not Available Not Available Not Available Not Available
II 13575499 J-35616-4A (PU) J-38125-29 Not Available Not Available Not Available Not Available
III 13575497 J-35616-4A (PU) J-38125-29 Not Available Not Available Not Available Not Available
IV Not Available J-35616-3 (GY) Not Available Not Available Not Available Not Available Not Available
V Not Available J-35616-5 (PU) Not Available Not Available Not Available Not Available Not Available
X900 Body Harness to Liftgate Harness

Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
A1 0.35 VT/WH 5065 I - Stop Lamp Relay Coil Supply Voltage A1 0.35 VT/WH 5065 IV -
A2-A3 - - - - - Not Occupied A2-A3 - - - - -
A4 2.5 BN/WH 293 II - Rear Defog Element Supply Voltage A4 1.5 BN/VT 293 V -
A5 2.5 BK 1350 II - Ground A5 2.5 BK 1350 V -
A6 0.75 RD/YE 3040 III - Battery Positive Voltage A6 0.75 RD/YE 3040 V -
A7 0.75 D-BU 393 III - Rear Window Wiper Motor Control A7 0.75 D-BU 393 V -
A8 0.35 L-GN/GY 737 III - Trunk Lamp Control A8 0.35 D-GN/GY 737 V -
A9 0.35 BN/RD 5803 I TB5 Lift Gate Position Sensor Voltage Reference A9 0.5 BN/RD 5803 IV TB5
A10 0.35 D-BU/WH 5805 I TB5 Lift Gate Position Sensor Signal (1) A10 0.5 D-BU/WH 5805 IV TB5
A11 0.35 BK/L-GN 5804 I TB5 Lift Gate Position Sensor Low Reference A11 0.5 BK/D-GN 5804 IV TB5
B1 0.35 BN/YE 5806 I TB5 Lift Gate Position Sensor Signal (2) B1 0.5 BN/YE 5806 IV TB5
B2 0.35 WH/BK 6126 I TB5 Lift Gate Object Sensor 2 Signal B2 0.5 WH/BK 6126 IV TB5
B3 0.35 BK/VT 5801 I TB5 Lift Gate Object Sensor Low Reference B3 0.5 BK/VT 5801 IV TB5
B4 - - - - - Not Occupied B4 - - - - -
B5 1 YE/BN 1859 III UQS Left Rear Midrange Speaker (+) B5 1 YE/BN 1859 V UQS
B6 1 WH/BK 1959 III UQS Left Rear Midrange Speaker (-) B6 1 WH/BK 1959 V UQS
B7 0.5 L-GN/WH 24 III UVC Backup Lamp Supply Voltage B7 0.35 D-GN/WH 24 V UVC
B8 0.5 L-GN/YE 6846 III - Rear License Lamp Supply Voltage B8 0.5 D-GN/YE 6846 V -
B9 0.35 YE/D-BU 5797 I TB5 Rear Closure Handle Switch Open Signal B9 0.5 YE/D-BU 5797 IV TB5
B10 1
1		 BK
YE/BN		 1350
6129		 I without TB5/UA2/UTC
without TB5 with UA2/UTC		 Ground
Rear Closure Unlatch Motor Latch Control		 B10 1 YE/BN 6129 IV without TB5
B11 - - - - - Not Occupied B11 - - - - -
