X500 Body Harness to Driver Door Harness

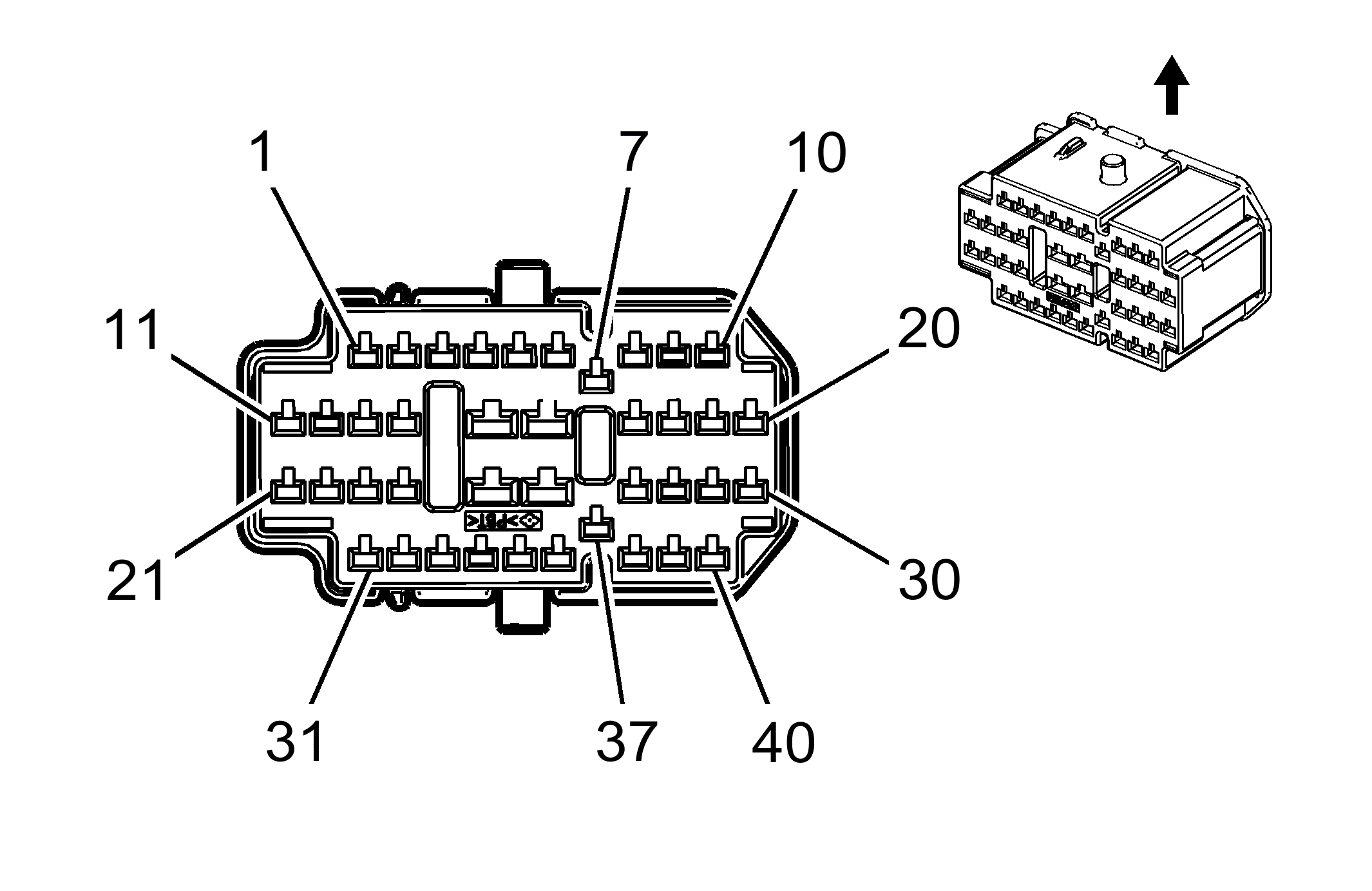

GM2394114

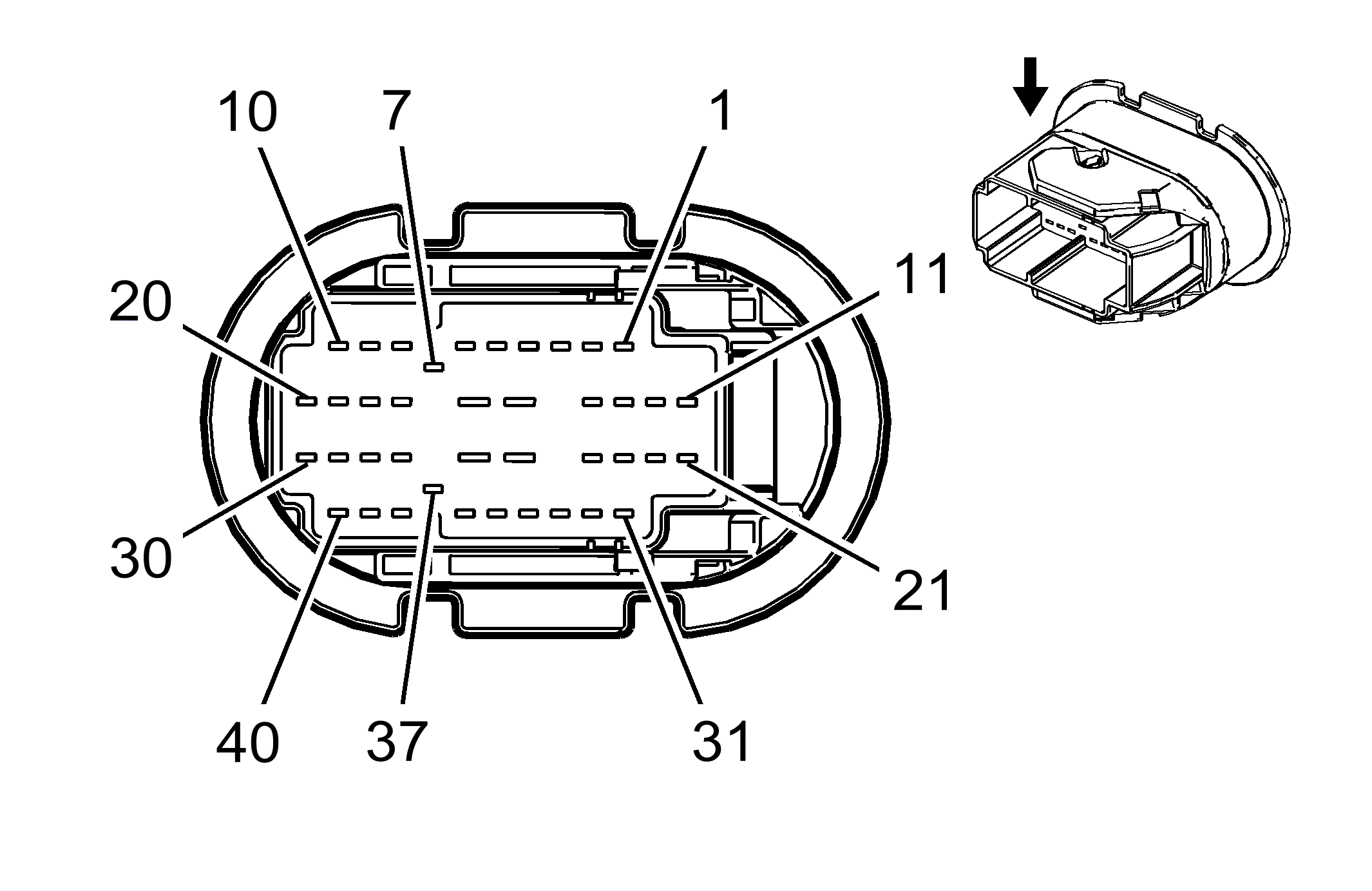

GM2394116
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13670763
  • Service Connector: 25843714
  • Description: 40-Way F 1.5 2.8 Series (L-GY)
 Connector Part Information
  • Harness Type: Driver Door
  • OEM Connector: 13647588
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 40-Way M 1.5 2.8 Series (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13327111 J-35616-2A (GY) J-38125-553 12191812 19 C A
II 13575479 J-35616-2A (GY) J-38125-553 12191812 19 C A
III 13327109 J-35616-2A (GY) J-38125-553 12191812 19 E C
IV 13575558 J-35616-4A (PU) J-38125-553 15304713 19 F D
V 13575557 J-35616-4A (PU) J-38125-553 15304711 8 E A
VI Not Available J-35616-3 (GY) Not Available Not Available Not Available Not Available Not Available
VII Not Available J-35616-5 (PU) Not Available Not Available Not Available Not Available Not Available
X500 Body Harness to Driver Door Harness

Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 1 BN/D-BU 118 I - Left Front Speaker Signal (-) (1) 1 0.75 BN/D-BU 118 VI -
2 1 D-BU 201 I - Left Front Speaker (+) (1) 2 0.75 D-BU 201 VI -
3 0.35 VT 3560 III - Passive Entry Driver Door Antenna Signal Hi 3 0.35 VT 3560 VI -
4 0.35 VT/GY 3561 III - Passive Entry Driver Door Antenna Signal Lo 4 0.35 VT/GY 3561 VI -
5-6 - - - - - Not Occupied 5-6 - - - - -
7 0.35 WH/YE 3574 III ULS Driver Door Open Switch Signal 7 0.35 WH/YE 3574 VI ULS
8 - - - - - Not Occupied 8 - - - - -
9 0.75 BN/YE 294 II - Door Lock Actuator Unlock Control 9 0.75 BN/YE 294 VI -
10 0.75 BN 5910 II AF8 Door Double Lock Actuator Lock Control 10 0.75 BN 5910 VI AF8
11 1 GY 5911 I - Door Lock Actuator Lock Control 2 11 0.75 GY 5911 VI -
12 0.35 WH/YE 7557 III TSQ LED Ambient Lighting Control 1 12 0.35 WH/YE 7557 VI TSQ
13 0.35 GY 157 III - Interior Lamp Control 13 0.35 GY 157 VI -
14 0.35 YE 6817 III - LED Backlight Dimming Control 14 0.35 YE 6817 VI -
15 2.5 RD/D-BU 1842 IV - Battery Positive Voltage 15 2.5 RD/D-BU 1842 VII -
16 0.35 GY/YE 5853 V - Driver Side Object Detection LED Signal (1) 16 0.35 GY/YE 5853 VI -
17 - - - - - Not Occupied 17 - - - - -
18 0.35 L-GN/YE 6134 III - Linear Interconnect Network Bus 3 18 0.35 L-GN/YE 6134 VI -
19 0.35 L-GN/WH 7530 III DR4 Linear Interconnect Network Bus 8 19 0.35 L-GN/WH 7530 VI DR4
20 - - - - - Not Occupied 20 - - - - -
21 0.35 WH 3398 III DR5/DR4 without AAB Co-Driver Mirror Motor Common Control 21 0.35 WH 3398 VI DR5/DR4 without AAB
22 0.35 L-GN/BK 3396 III DR5/DR4 without AAB Co-Driver Mirror Motor Right (+) Left (-) Control 22 0.35 L-GN/BK 3396 VI DR5/DR4 without AAB
23 0.35 YE/VT 3397 III DR5/DR4 without AAB Co-Driver Mirror Motor Up (+) Down (-) Control 23 0.35 YE/VT 3397 VI DR5/DR4 without AAB
24 0.5 BN/YE 2267 III - Mirror Heating Element Supply Voltage 24 0.5 BN/YE 2267 VI -
25 0.5 VT/YE 3409 V DR4 without AAB Mirror Motor Fold Out Control 25 0.5 VT/YE 3409 VI DR4 without AAB
26 2.5 BK 750 IV - Ground 26 2.5 BK 750 VII -
27 0.5 WH/BN 3410 III DR4 without AAB Mirror Motor Fold In Control 27 0.5 WH/BN 3410 VI DR4 without AAB
28 0.35 YE/WH 1690 III DD8/DR4 Automatic Day/Night Mirror Signal 28 0.35 YE/WH 1690 VI DD8/DR4
29 0.35 BK/YE 1691 III DD8/DR4 Automatic Day/Night Mirror Low Reference 29 0.35 BK/YE 1691 VI DD8/DR4
30 0.35 BK/WH 751 III ATH Signal Ground 30 0.35 BK/WH 751 VI ATH
31 0.35 L-GN 6112 III - Power Lift Gate On/Off Switch Signal 31 0.35 L-GN 6112 VI -
32 0.35 GY/BK 6113 III - Rear Lift Gate Open/Close Switch Signal 32 0.35 GY/BK 6113 VI -
33 0.35 BN/YE 780 III - Driver Door Lock Switch Lock Signal 33 0.35 BN/YE 780 VI -
34 0.35 BN/WH 781 III - Driver Door Lock Switch Unlock Signal 34 0.35 BN/WH 781 VI -
35 0.5 OG/L-GN 2132 III - Left Front Side Impact Sensing Module Signal 35 0.5 OG/L-GN 2132 VI -
36 0.5 BK/OG 6628 III - Left Front Side Impact Sensing Module Low Reference 36 0.5 BK/OG 6628 VI -
37-38 - - - - - Not Occupied 37-38 - - - - -
39 0.35 L-GN/WH 3570 III ATH Driver Door Handle Switch Signal 39 0.35 L-GN/WH 3570 VI ATH
40 0.5 RD/VT 1940 III - Battery Positive Voltage 40 0.5 RD/VT 1940 VI -
