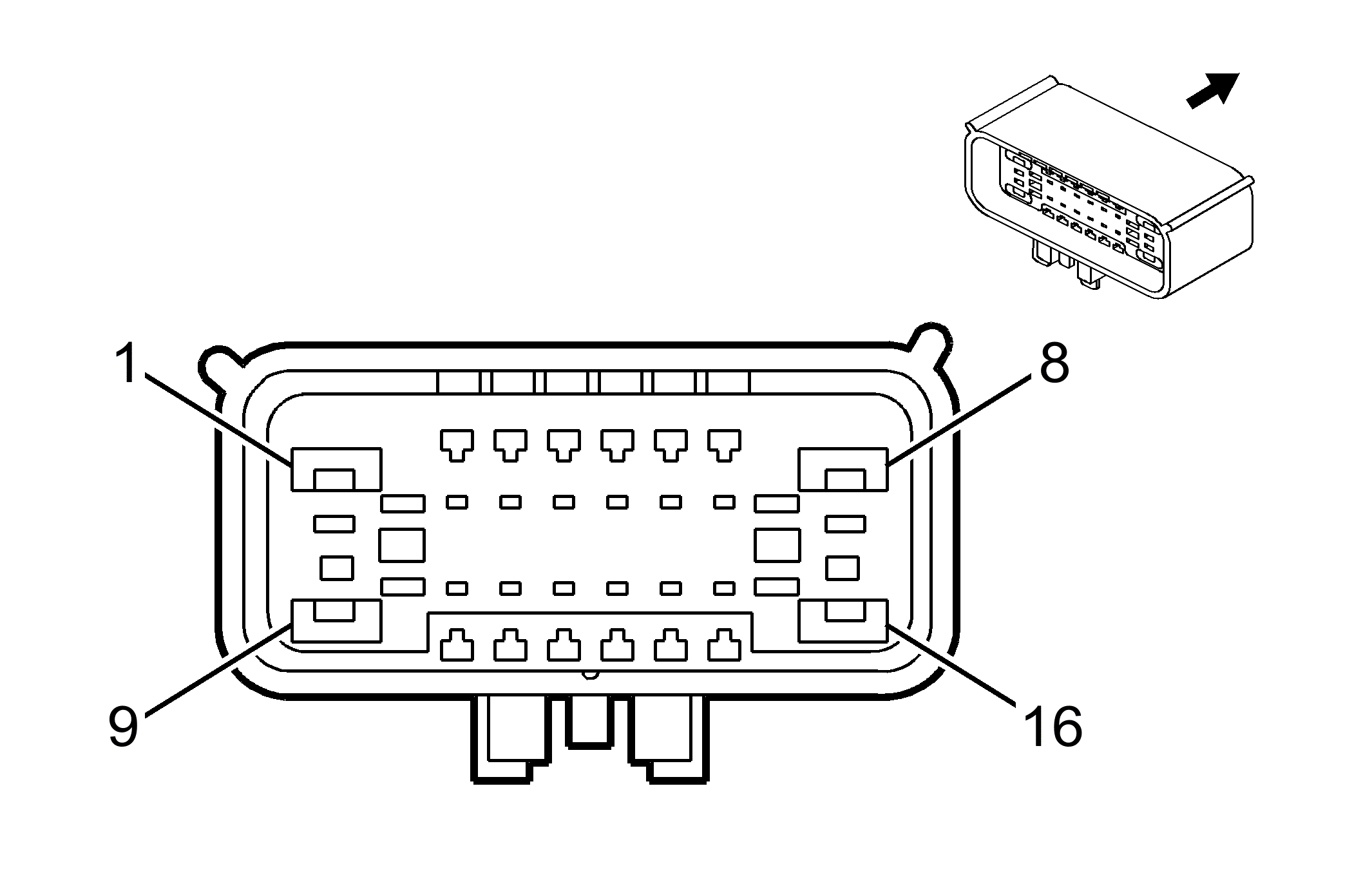

X309 Driver Seat Back Harness to Driver Seat Cushion Harness
|
|
|
Connector Part Information
- Harness Type: Driver Seat Back
- OEM Connector: 13914053
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way F 1.5, 2.8 Series, Sealed (YE)
|
Connector Part Information
- Harness Type: Driver Seat Cushion
- OEM Connector: 13914052
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way M MX150 Series, Sealed (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-35 (VT) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
X309 Driver Seat Back Harness to Driver Seat Cushion Harness
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
1.5 |
L-GN/YE |
276 |
I |
- |
Driver Power Seat Recline Motor Forward Control |
1 |
1.5 |
L-GN/YE |
276 |
I |
- |
| 2 |
0.5 |
WH/BK |
570 |
I |
AAB |
Driver Memory Seat Recline Motor Position Sensor Signal |
2 |
0.5 |
WH/BK |
570 |
I |
AAB |
| 3 |
1.5 |
YE/BN |
768 |
I |
- |
Driver Power Seat Lumbar Motor Up Control |
3 |
1.5 |
YE/BN |
768 |
I |
- |
| 4 |
1 |
VT/BK |
739 |
I |
KU1 |
Run/Crank Ignition 1 Voltage |
4 |
1 |
VT/BK |
739 |
I |
KU1 |
| 5 |
0.35 |
D-GN/VT |
5906 |
I |
- |
Driver Seat Vent Motor Control (1) |
5 |
0.35 |
D-GN/VT |
5906 |
I |
- |
| 6 |
0.5 |
RD/GY |
4840 |
I |
UWG |
Battery Positive Voltage |
6 |
0.5 |
RD/GY |
4840 |
I |
UWG |
| 7 |
0.35 |
D-GN/YE |
7066 |
I |
- |
Entertainment Remote Enable Signal |
7 |
0.35 |
D-GN/YE |
7066 |
I |
- |
| 8 |
1 |
GY |
2045 |
I |
- |
Driver Heated Back Element Supply Voltage |
8 |
1 |
GY |
2045 |
I |
- |
| 9 |
1.5 |
D-BU/YE |
277 |
I |
- |
Driver Power Seat Recline Motor Rearward Control |
9 |
1.5 |
D-BU/YE |
277 |
I |
- |
| 10 |
0.35 |
WH/RD |
3298 |
I |
- |
Memory Sensor High Reference (2) |
10 |
0.35 |
WH/RD |
3298 |
I |
- |
| 11 |
1.5 |
YE/D-BU |
767 |
I |
- |
Driver Power Seat Lumbar Motor Down Control |
11 |
1.5 |
YE/D-BU |
767 |
I |
- |
| 12 |
1 |
BK |
750 |
I |
KU1 |
Ground |
12 |
1 |
BK |
750 |
I |
KU1 |
| 13 |
0.5 |
L-GN/BK |
3068 |
I |
- |
Driver Side Impact Module High Control |
13 |
0.5 |
OG/D-BU |
3068 |
I |
- |
| 14 |
0.5 |
L-BU |
3069 |
I |
- |
Driver Side Impact Module Low Control |
14 |
0.5 |
L-GN/OG |
3069 |
I |
- |
| 15 |
0.5 |
BK/WH |
1551 |
I |
UWG |
Signal Ground |
15 |
0.5 |
BK/WH |
1551 |
I |
UWG |
| 16 |
1 |
BK |
750 |
I |
- |
Ground |
16 |
1 |
BK |
750 |
I |
- |
