X205 Instrument Panel Harness to Body Harness

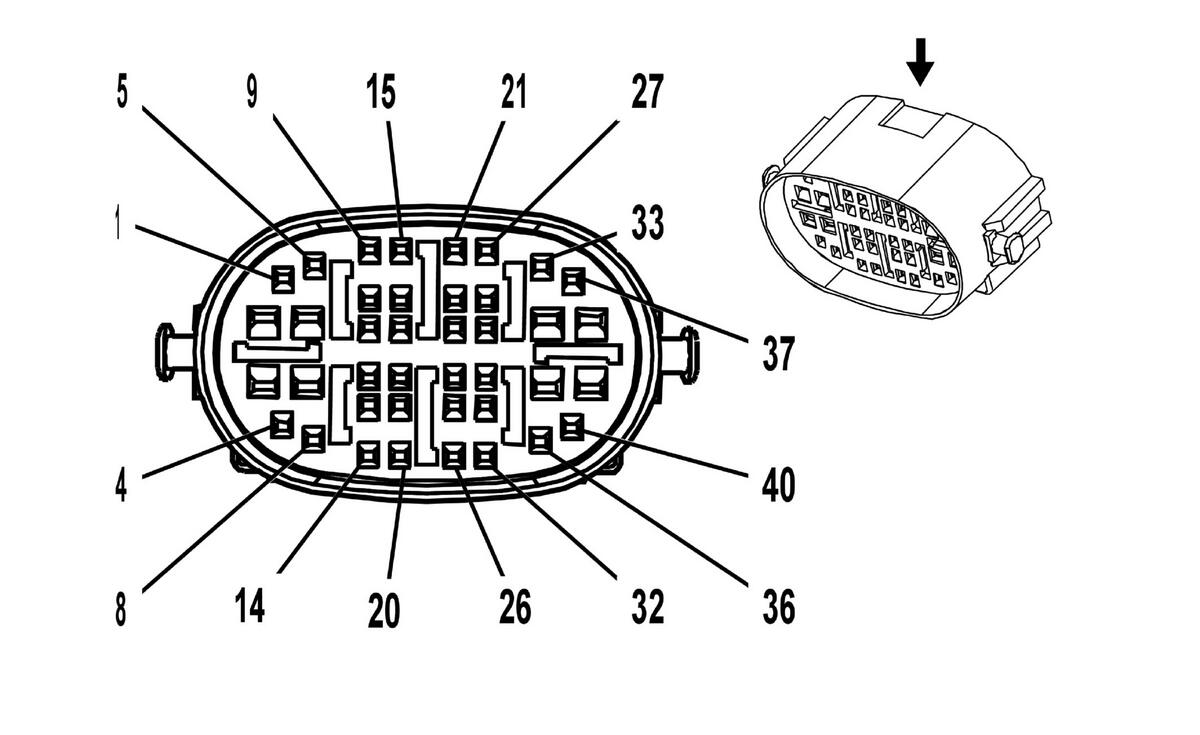

GM1713502

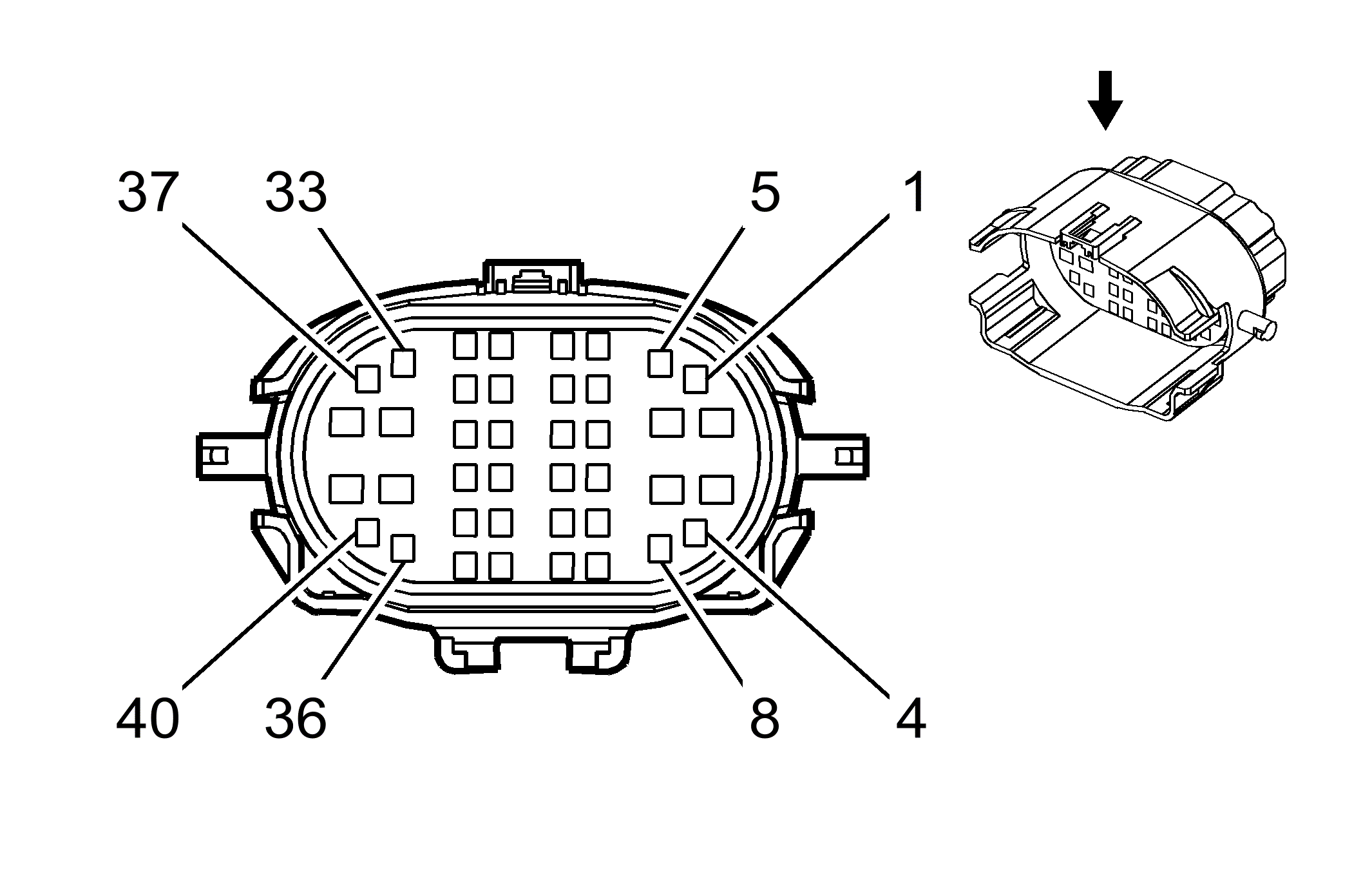

GM1844783
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13601803
  • Service Connector: 19166997
  • Description: 40-Way F GT 150/280 Series, Sealed (BK)
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13880240
  • Service Connector: 19300894
  • Description: 40-Way M GT 150 280 Series, Sealed (BK)
  • Harness Type: Body
  • OEM Connector: 13880240
  • Service Connector: Not Available
  • Description: 40-Way M GT 150 280 Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13578912 J-35616-35 (VT) J-38125-553 12191819 8 E 1
II 13578915 J-35616-35 (VT) J-38125-553 15304719 19 E 5
III 13578906 J-35616-35 (VT) J-38125-553 15304720 19 4 5
IV 13582291 J-35616-35 (VT) J-38125-553 15326269 19 E 4
V 13582240 J-35616-35 (VT) J-38125-553 15304731 19 E 5
VI 13582291 J-35616-35 (VT) J-38125-553 15326269 19 E 1
VII Not Available Not Available Not Available Not Available Not Available Not Available Not Available
VIII 13575511 J-35616-35 (VT) J-38125-553 15304732 8 A 5
X205 Instrument Panel Harness to Body Harness

Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.35 BN/WH 419 I - Check Engine Indicator Control 1 0.5 BN/WH 419 IV -
2 0.5 RD/YE 240 II CEC Battery Positive Voltage 2 0.35 RD/YE 240 V CEC
3 - - - - - Not Occupied 3 - - - - -
4 0.35 VT 185 I - Low Washer Fluid Indicator Control 4 0.35 VT 185 IV -
5 0.5 D-BU/YE 68 I T89 Low Coolant Level Indicator Control 5 0.5 D-BU/YE 68 IV T89
6 0.35 VT/YE 5985 II - Accessory Wakeup Serial Data 6 0.35 VT/YE 5985 V -
7 0.35 VT/GY 139 II - Run/Crank Ignition 1 Voltage 7 0.35 VT/GY 139 V -
8 0.5 BN/BK 3552 I - Passive Start Interior Antenna 1 Signal Hi 8 0.35 BN/BK 3552 IV -
9 0.5 WH 3553 I - Passive Start Interior Antenna 1 Signal Lo 9 0.35 WH 3553 IV -
10 0.35 VT/BK 3 I - Run/Crank Ignition 1 Voltage 10 0.35 VT/BK 3 IV -
11 0.35 VT/YE 4 I - Accessory Voltage 11 0.35 VT/YE 4 IV -
12 0.35 L-GN/BK 3558 I - Passive Start Switch Signal 2 12 0.35 L-GN/BK 3558 IV -
13 0.35 BK/GY 3559 I - Passive Start Switch 2 Low Reference 13 0.35 BK/GY 3559 IV -
14 0.35 WH/VT 5905 I - Key Capture/Column Lock Shift Position Signal 14 0.35 WH/VT 5905 IV -
15 0.35 WH 6974 I UVC Camera Drain Wire 15 0.5 WH 6974 IV UVC
16 0.35 GY/YE 6972 I UVC Camera Signal #2 + 16 0.35 GY/YE 6972 IV UVC
17 0.35 WH/D-BU 6973 I UVC Camera Signal #2 17 0.35 WH/D-BU 6973 IV UVC
18 0.5 BK/WH 1551 I UWG Signal Ground 18 0.5 BK/WH 1551 IV UWG
19 0.35 WH/D-BU 5986 I - Serial Data Communication Enable 19 0.35 WH/D-BU 5986 IV -
20 0.35 GY/L-GN 328 I - Interior Lamp Defeat Switch Signal 20 0.35 GY/L-GN 328 IV -
21 0.35 L-GN/D-BU 6133 I - Linear Interconnect Network Bus 2 21 0.35 L-GN/D-BU 6133 IV -
22 0.35 VT/WH 5203 I UEC Air Quality Sensor Signal 22 0.5 VT/WH 5203 IV UEC
23 0.5 D-BU/GY 636 I - Outside Ambient Air Temperature Sensor Signal 23 0.5 D-BU/GY 636 IV -
24 0.5 BK/D-BU 61 I - Outside Ambient Temperature Sensor Low Reference 24 0.5 BK/D-BU 61 IV -
25 0.5 D-BU/YE 7574 I - Electric Variable Displacement Control 25 0.5 D-BU/YE 7574 IV -
26 0.5 VT 7575 I - Electric Variable Displacement Compressor Supply 26 0.5 VT 7575 IV -
27 0.35 WH/YE 7557 I TSQ/EBS LED Ambient Lighting Control 1 27 0.35 WH/YE 7557 IV TSQ/EBS
28 0.35 L-GN/VT 1601 I ULS Steering Column Lock Signal 28 0.35 L-GN/VT 1601 IV ULS
29 0.5 VT/BK 739 I CJ4 Run/Crank Ignition 1 Voltage 29 0.75 VT/BK 739 VI CJ4
30 0.35 BN/VT 193 I - Rear Defog Relay Control 30 0.35 BN/VT 193 IV -
31 0.5 RD/VT 102 I - Battery Positive Voltage 31 0 - - VII -
32 0.35 VT/GY 539 I - Run/Crank Ignition 1 Voltage 32 0.5 VT/GY 539 IV -
33 - - - - - Not Occupied 33 - - - - -
34 0.5 WH/BN 6815 II - Inadvertent Power Control 34 0.5 WH/BN 6815 V -
35 2.5 RD/WH 3440 III - Battery Positive Voltage 35 2.5 RD/WH 3440 VIII -
36-38 - - - - - Not Occupied 36-38 - - - - -
39 0.35 L-GN/GY 6135 II - Linear Interconnect Network Bus 4 39 0.35 L-GN/GY 6135 V -
40 - - - - - Not Occupied 40 - - - - -
