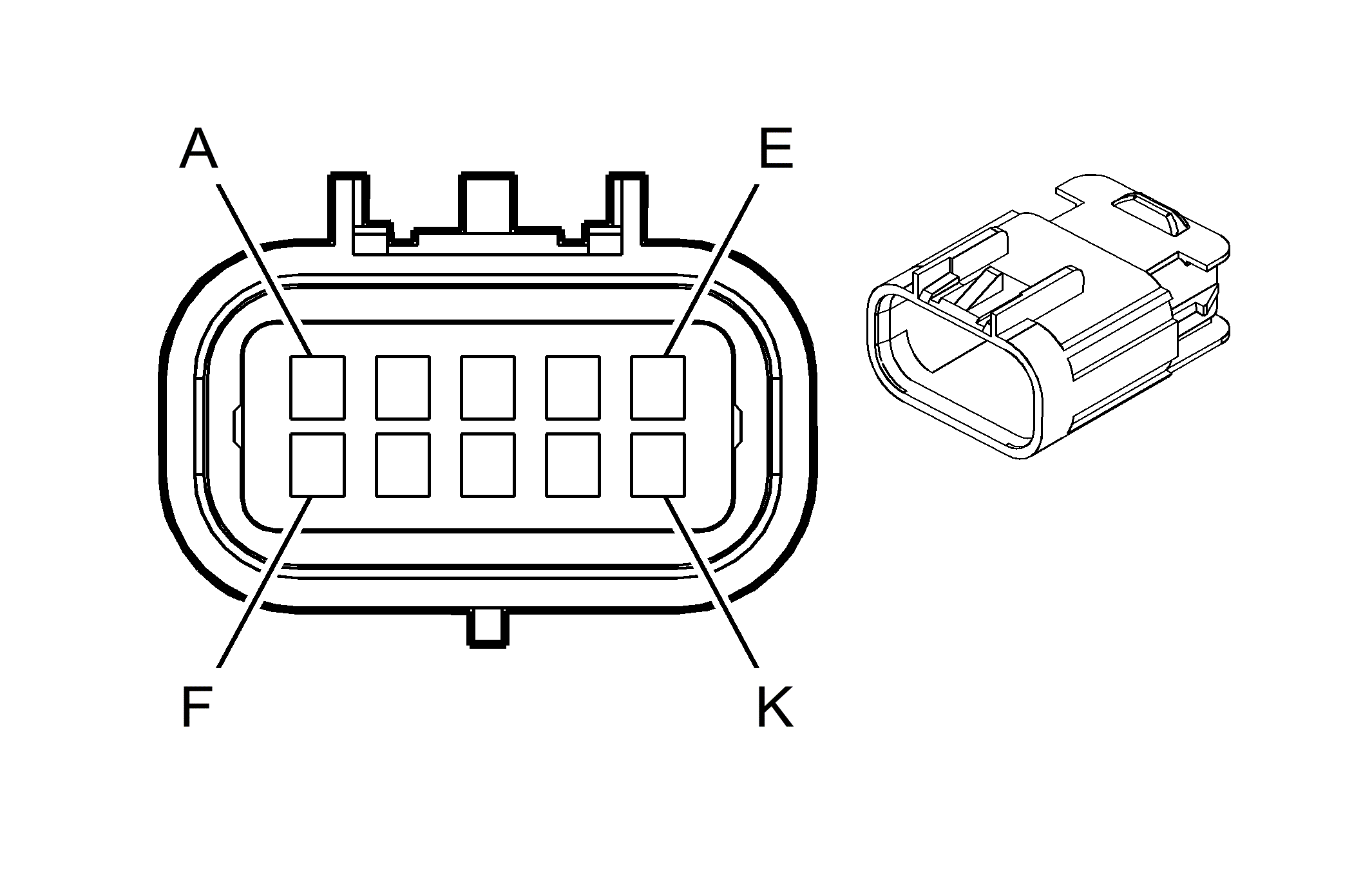

X113 Body Harness to Left Front Wheel Speed Sensor Harness

Connector Part Information Harness Type: Body OEM Connector: 15326842 Service Connector: 15326843 Description: 10-Way F 150 GT Series, Sealed (BK)	Connector Part Information Harness Type: Left Front Wheel Speed Sensor OEM Connector: 15326846 Service Connector: Service by Harness - See Part Catalog Description: 10-Way M 150 GT Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13578912	J-35616-35 (VT)	J-38125-553	12191819	8	E	1
II	Not Available	J-35616-35 (VT)	Not Available	Not Available	Not Available	Not Available	Not Available

X113 Body Harness to Left Front Wheel Speed Sensor Harness

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
A	0.5	BK/GY	873	I	-	Left Front Wheel Speed Sensor Low Reference	A	0.8	YE	873	II	-
B	0.5	GY	830	I	-	Wheel Speed Sensor Signal Left Front	B	0.8	L-BU	830	II	-
C	0.5	YE/RD	1817	I	F45	Left Front Wheel Accelerometer Voltage Reference	C	0.8	YE	1817	II	F45
D	0.5	WH	1100	I	F45	Left Front Wheel Damping Accelerometer Signal	D	0.8	WH	1100	II	F45
E	0.5	BK/BN	1099	I	F45	Left Front Wheel Damping Accelerometer Low Reference	E	0.8	PK/BK	1099	II	F45
F	0.5	GY	1113	I	F45	Left Front Damping Servo Control	F	0.8	GY	1113	II	F45
G	0.5	BN/WH	1107	I	F45	Left Front Damping Servo Supply Voltage	G	0.8	L-BU/WH	1107	II	F45
H	0.5	WH/RD	7524	I	TT6/TT7/TT8	Front Axle Level Sensor 5 Volt Reference	H	0.8	GY/WH	7524	II	TT6/TT7/TT8
J	0.5	BK/GY	7526	I	TT6/TT7/TT8	Front Axle Level Sensor Low Reference	J	0.8	PU/WH	7526	II	TT6/TT7/TT8
K	0.5	BN/WH	7525	I	TT6/TT7/TT8	Front Axle Level Sensor Signal	K	0.8	BN/WH	7525	II	TT6/TT7/TT8
