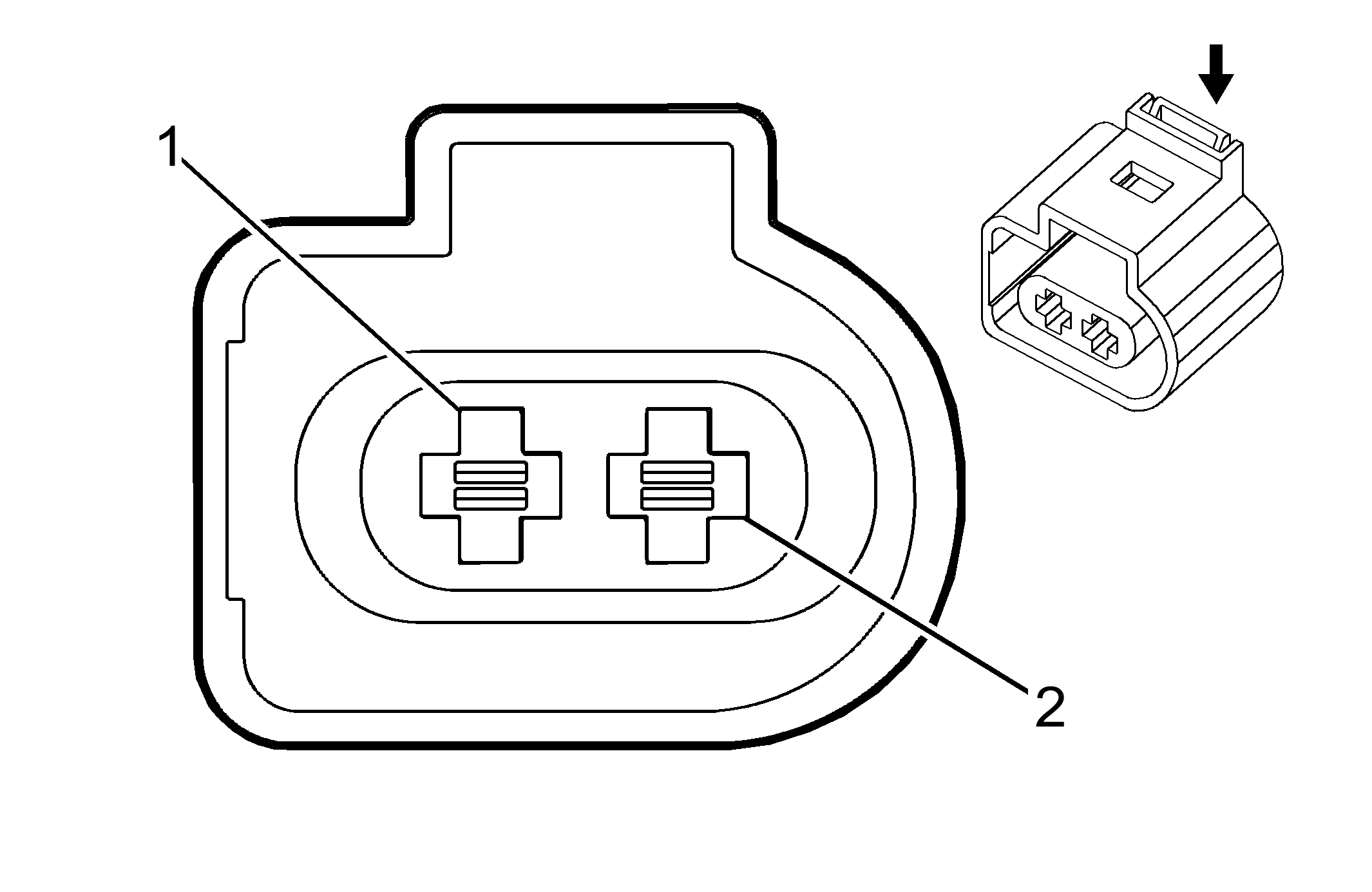

Q49 Rear Differential Clutch Solenoid Valve Connector End View (F46)
|
|
Connector Part Information
- Harness Type: Rear Differential
- OEM Connector: 10833916
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Harness- See Part Catalog |
Not Available |
Not Available |
Service by Harness- See Part Catalog |
Not Available |
Not Available |
Not Available |
Q49 Rear Differential Clutch Solenoid Valve Connector End View (F46)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
RD* |
934 |
Differential Lock Actuator High Control |
I |
- |
| 2 |
0.75 |
BK* |
935 |
Differential Lock Actuator Low Control |
I |
- |
| * Wire Colors May Vary - The wire colors in these cavities are known to have been changed during production by the wiring harness supplier. Not all possible wire color combinations are known at this time. The following lists some of the colors known to have been used in these cavities: RD wires in both cavities, BK wires in both cavities, and BK in cavity 1, RD in cavity 2. |
