Windshield Wiper Blade Replacement

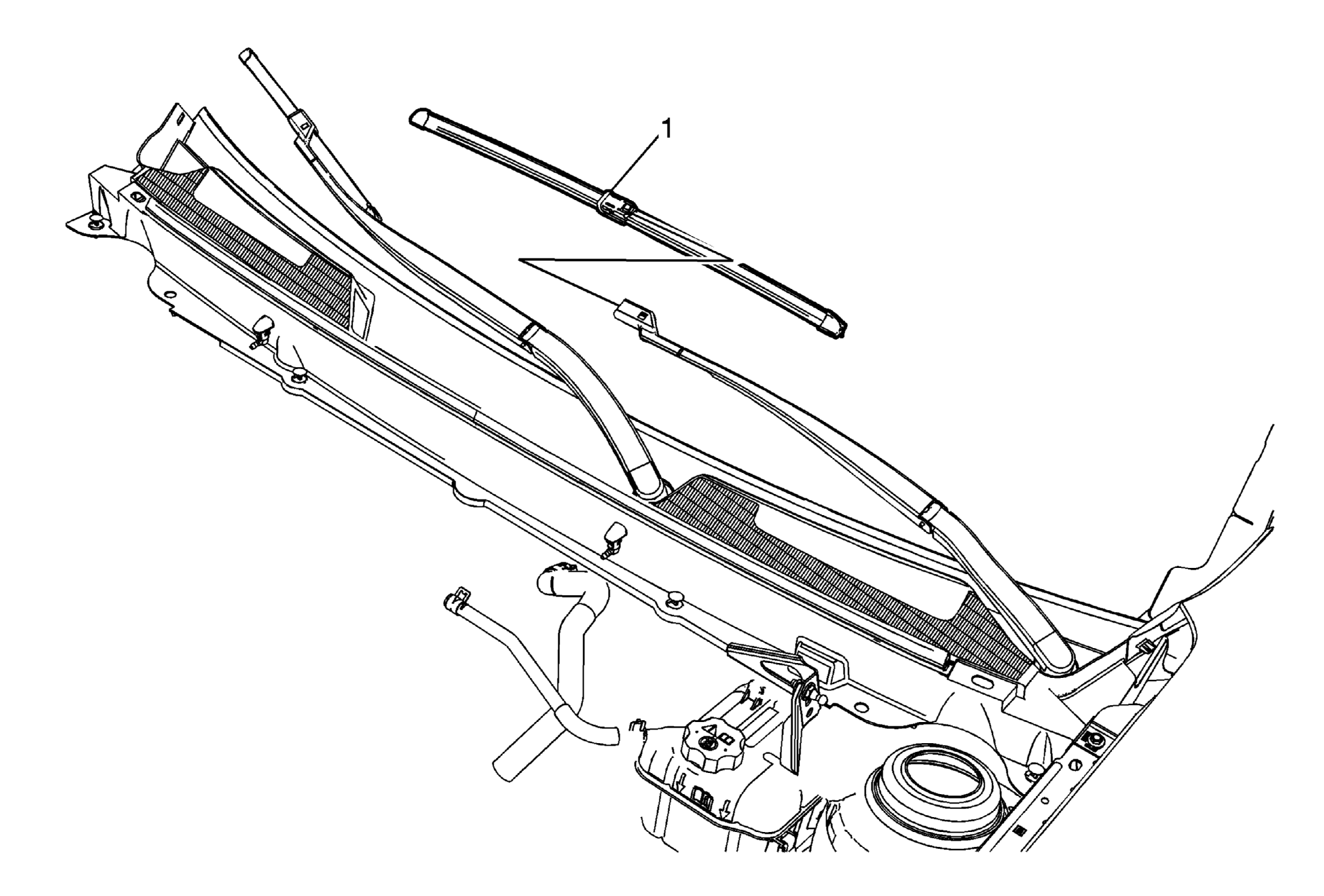

Fig 1: Identifying Windshield Wiper Blade
GM2222831Courtesy of GENERAL MOTORS COMPANY
Windshield Wiper Blade Replacement

Callout Component Name
1 Windshield Wiper Blade Assembly

Procedure

  1. Lift the wiper arm from the windshield.
  2. Release the retention tab securing the blade to the arm assembly.
  3. Pull the blade assembly from the wiper arm.
  4. Remove the wiper blade assembly.
