Windshield Outside Moisture Sensor Replacement

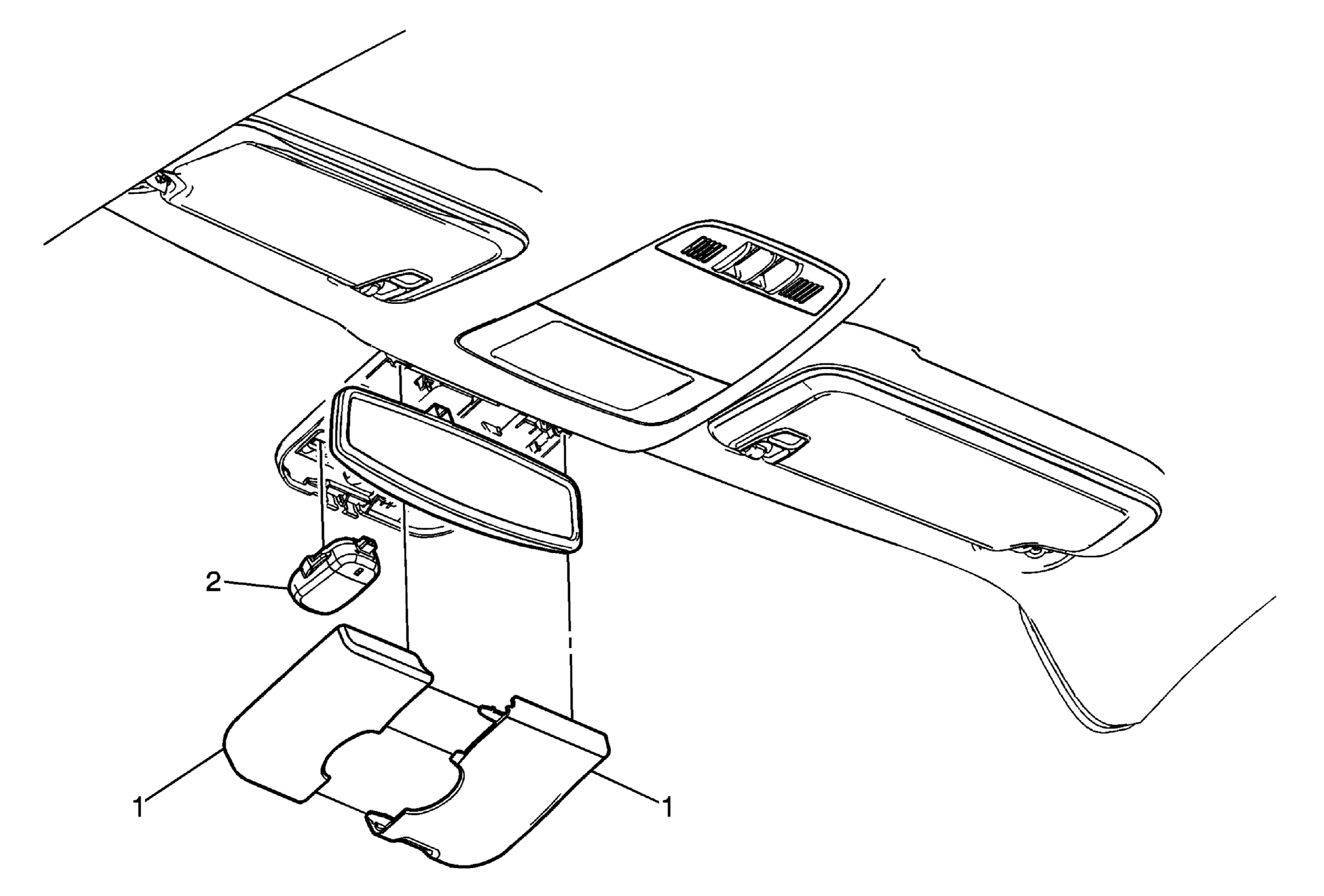

Fig 1: Identifying Windshield Outside Moisture Sensor
GM2223880Courtesy of GENERAL MOTORS COMPANY
Windshield Outside Moisture Sensor Replacement

Callout Component Name
1 Inside Rear View Mirror Mounting Plate Cover

Procedure

  1. Unsnap the mounting plate cover from the windshield outside moisture sensor bracket.
  2. Remove the right side from the left side in order to clear the inside rear view mirror.
2 Windshield Outside Moisture Sensor Assembly

Procedure

  1. Squeeze the outside moisture sensor tabs in order to disengage the windshield outside moisture sensor from the outside moisture sensor bracket tabs.
  2. Disengage the electrical connector from the moisture sensor.
  3. Remove the windshield outside moisture sensor from the outside moisture sensor bracket.
