Intermediate Steering Shaft Upper Seal Replacement

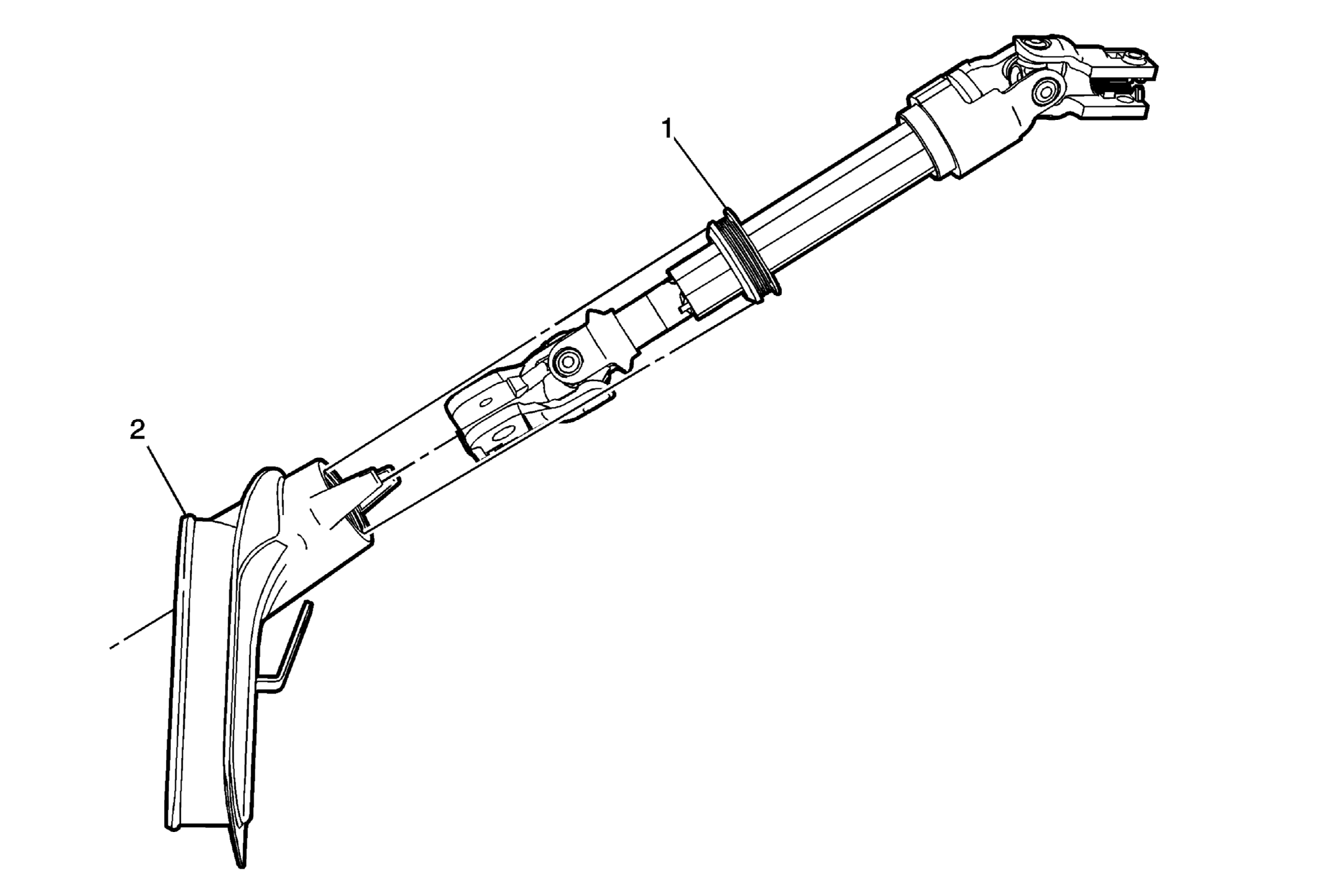

Fig 1: View Of Intermediate Steering Shaft Upper Seal

Courtesy of GENERAL MOTORS COMPANY

Intermediate Steering Shaft Upper Seal Replacement

Callout	Component Name
Preliminary Procedure  Remove the intermediate steering shaft. Refer to Intermediate Steering Shaft Replacement .
1	Intermediate Steering Shaft Upper Seal Collar Procedure  Disengage the collar from the intermediate steering shaft upper seal.
2	Intermediate Steering Shaft Upper Seal
