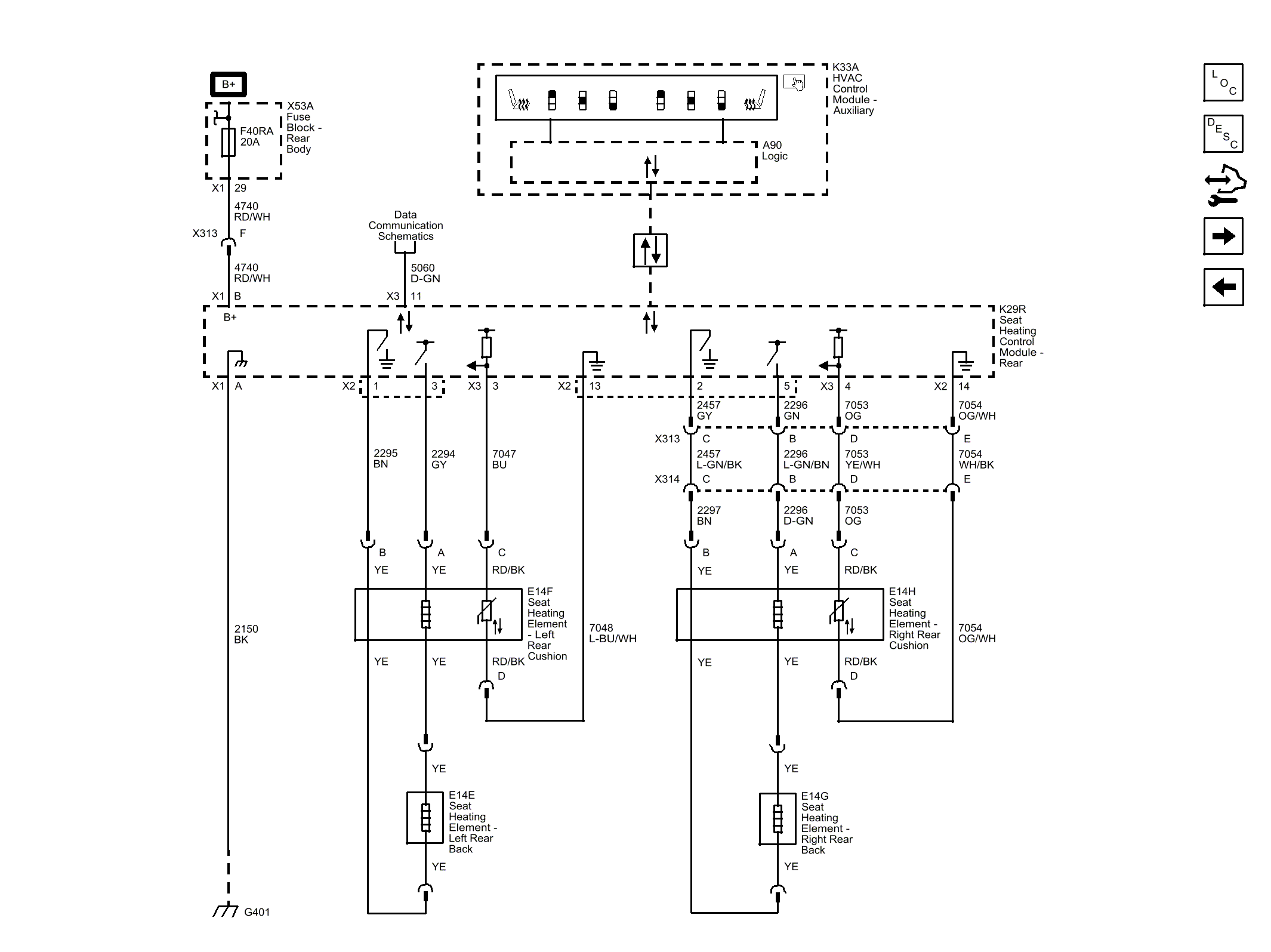

Home >> Cadillac >> 2014 >> SRX Performance, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Seat Heating System And Seat Cooling System >> Schematic Wiring Diagrams >> Heated/Cooled Seat Wiring Schematics >> Heated Seats Rear (KA6)
