Rear Heated Seat Block Diagram

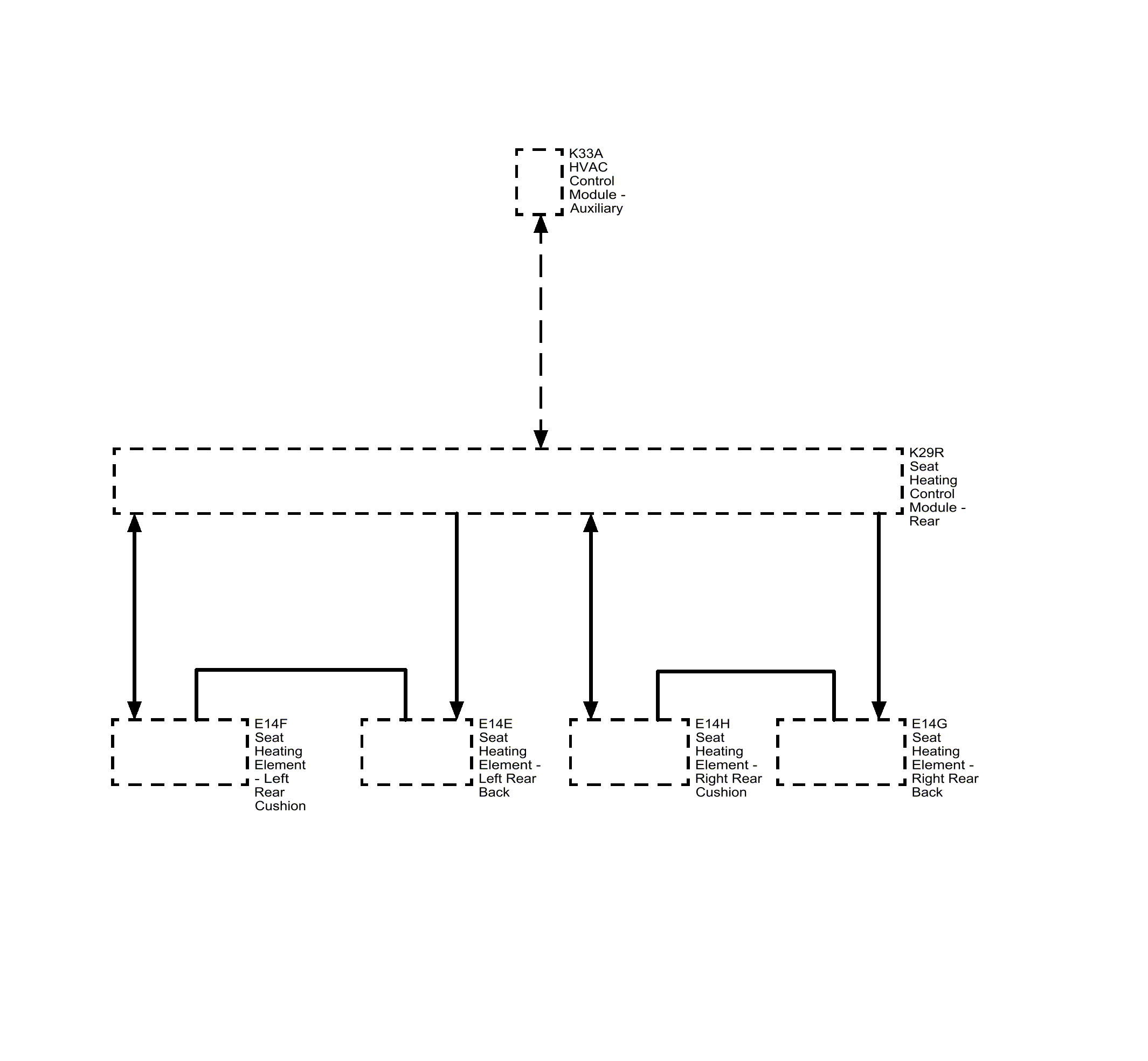

Fig 1: Rear Heated Seat Block Diagram
GM3460778Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
DA Serial Data
HW Hard-Wired
HW Hard-Wired
HW Hard-Wired
HW Hard-Wired
HW Hard-Wired
K33A K33A HVAC Control Module - Auxiliary
K29R K29R Seat Heating Control Module - Rear
E14G E14G Seat Heating Element - Right Rear Back
E14H E14H Seat Heating Element - Right Rear Cushion
E14E E14E Seat Heating Element - Left Rear Back
E14F E14F Seat Heating Element - Left Rear Cushion
