Rear Seat Recliner Handle Replacement

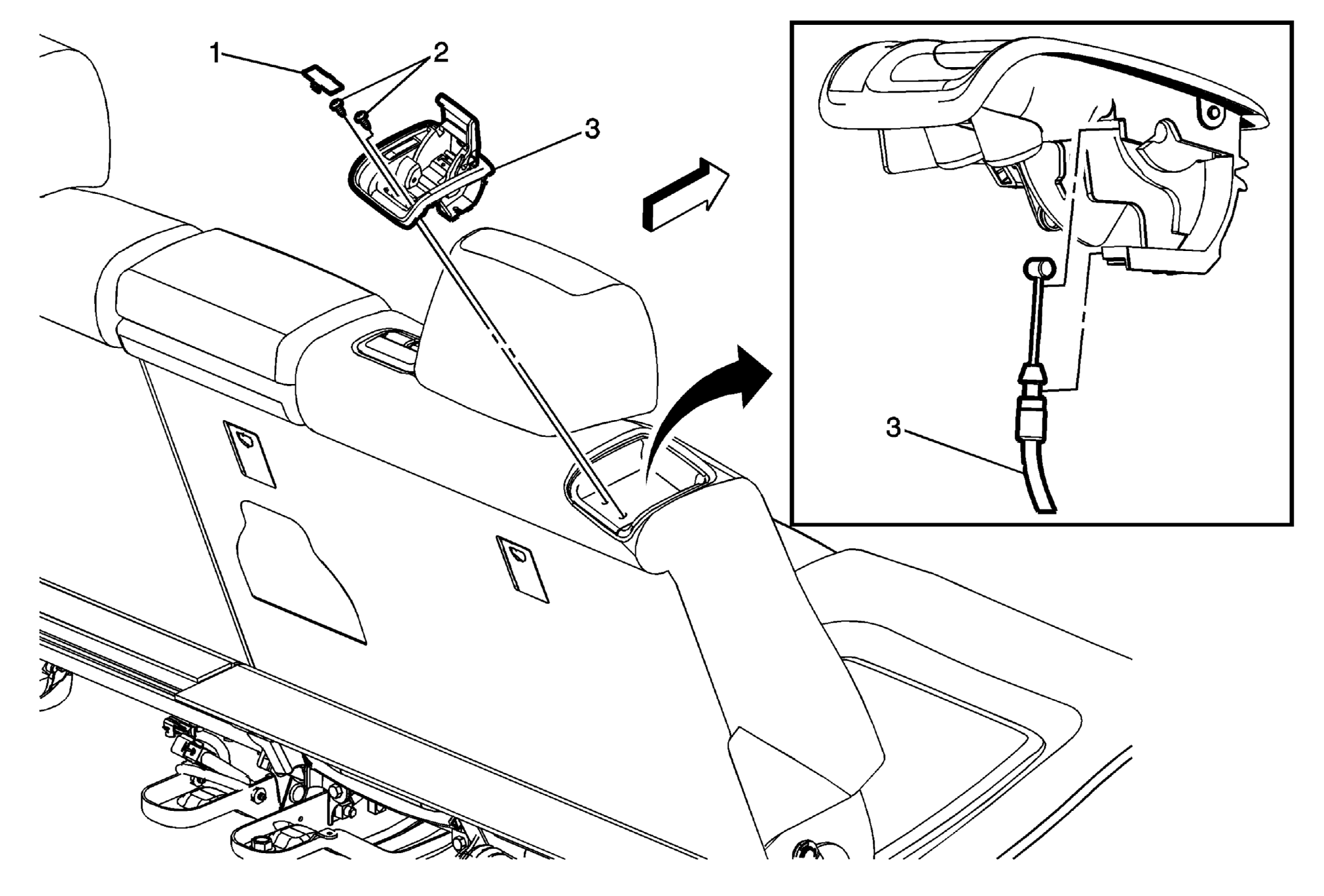

Fig 1: Identifying Rear Seat Recliner Handle, Bezel & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Recliner Handle Bezel
2	Rear Seat Recliner Handle Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Lift up on the rear seat recliner handle to gain access to the screws. Remove the fasteners from the rear seat back latch and then pull the latch out from the seat back assembly. Tighten 3 N.m (26 lb in)
3	Driver or Passenger Seat Back Cushion Latch Release Handle Assembly Procedure Note the location and routing of the cable prior to removal in order to ensure proper reinstallation. Detach the latch cable from the latch. Make sure there are no wrinkles around the cover bezel to ensure a proper reinstallation.

Callout

Component Name

Rear Seat Recliner Handle Bezel

Rear Seat Recliner Handle Screw (Qty: 2)

CAUTION:

Procedure

Lift up on the rear seat recliner handle to gain access to the screws.
Remove the fasteners from the rear seat back latch and then pull the latch out from the seat back assembly.

Tighten
3 N.m (26 lb in)

Driver or Passenger Seat Back Cushion Latch Release Handle Assembly

Procedure

Note the location and routing of the cable prior to removal in order to ensure proper reinstallation.
Detach the latch cable from the latch.
Make sure there are no wrinkles around the cover bezel to ensure a proper reinstallation.
