Rear Seat Armrest Hinge Replacement

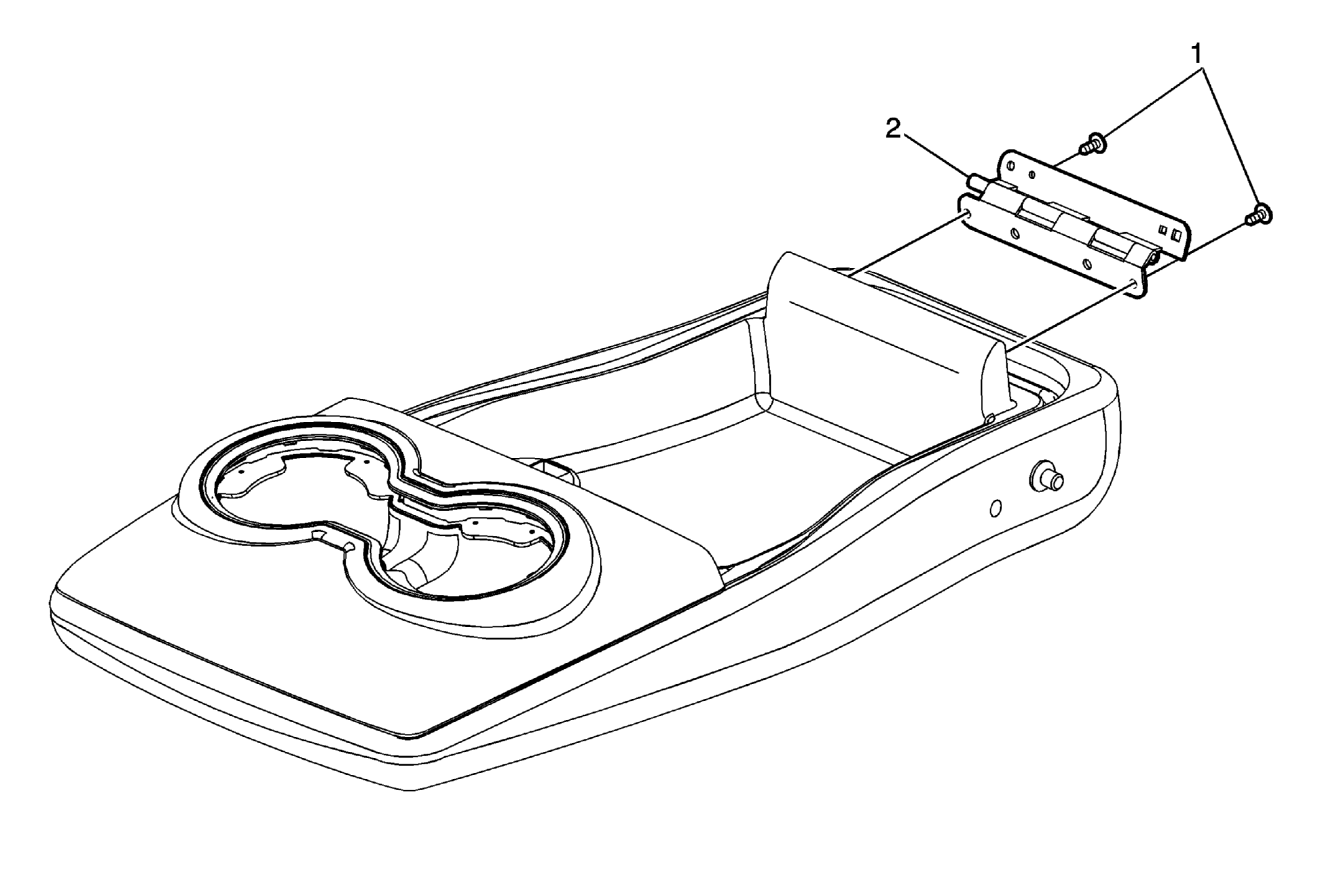

Fig 1: Identifying Rear Seat Armrest Hinge & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement . Remove the rear seat armrest cover. Refer to Rear Seat Armrest Cover Replacement .
1	Rear Seat Armrest Hinge Retainer (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (25 lb in)
2	Rear Seat Armrest Hinge

Callout

Component Name

Preliminary Procedure

Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement .
Remove the rear seat armrest cover. Refer to Rear Seat Armrest Cover Replacement .

Rear Seat Armrest Hinge Retainer (Qty: 2)

CAUTION:

Tighten
3 N.m (25 lb in)

Rear Seat Armrest Hinge
