Rear Seat Armrest Cup Holder Replacement

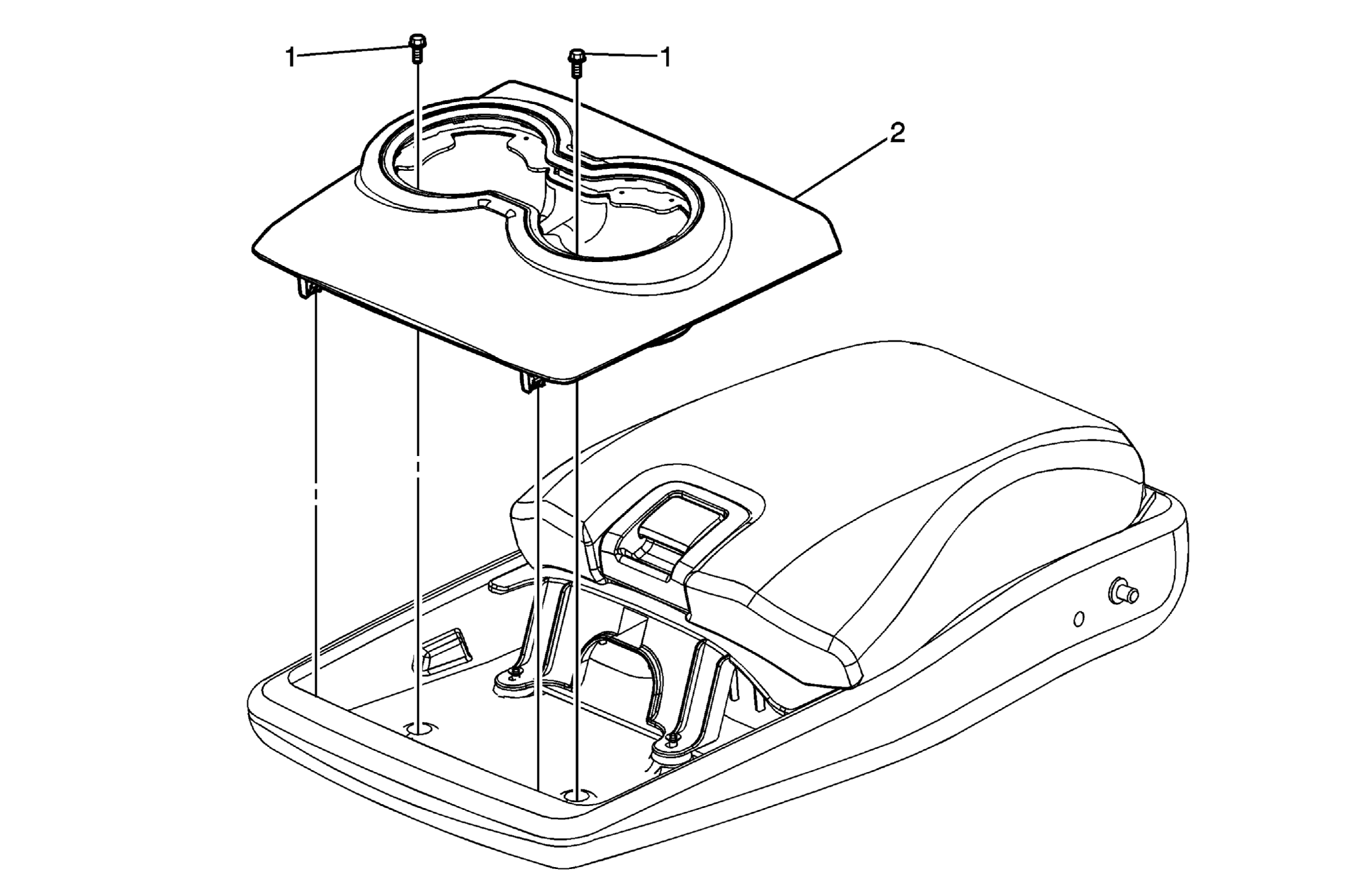

Fig 1: View Of Rear Seat Armrest Cup Holder & Screws
GM2237696Courtesy of GENERAL MOTORS COMPANY
Rear Seat Armrest Cup Holder Replacement

Callout Component Name
1 Rear Seat Armrest Cup Holder Screw (Qty: 2)
Procedure
Remove the cupholder insert.
2 Rear Seat Armrest Cup Holder
