Rear Seat Armrest Cover Replacement

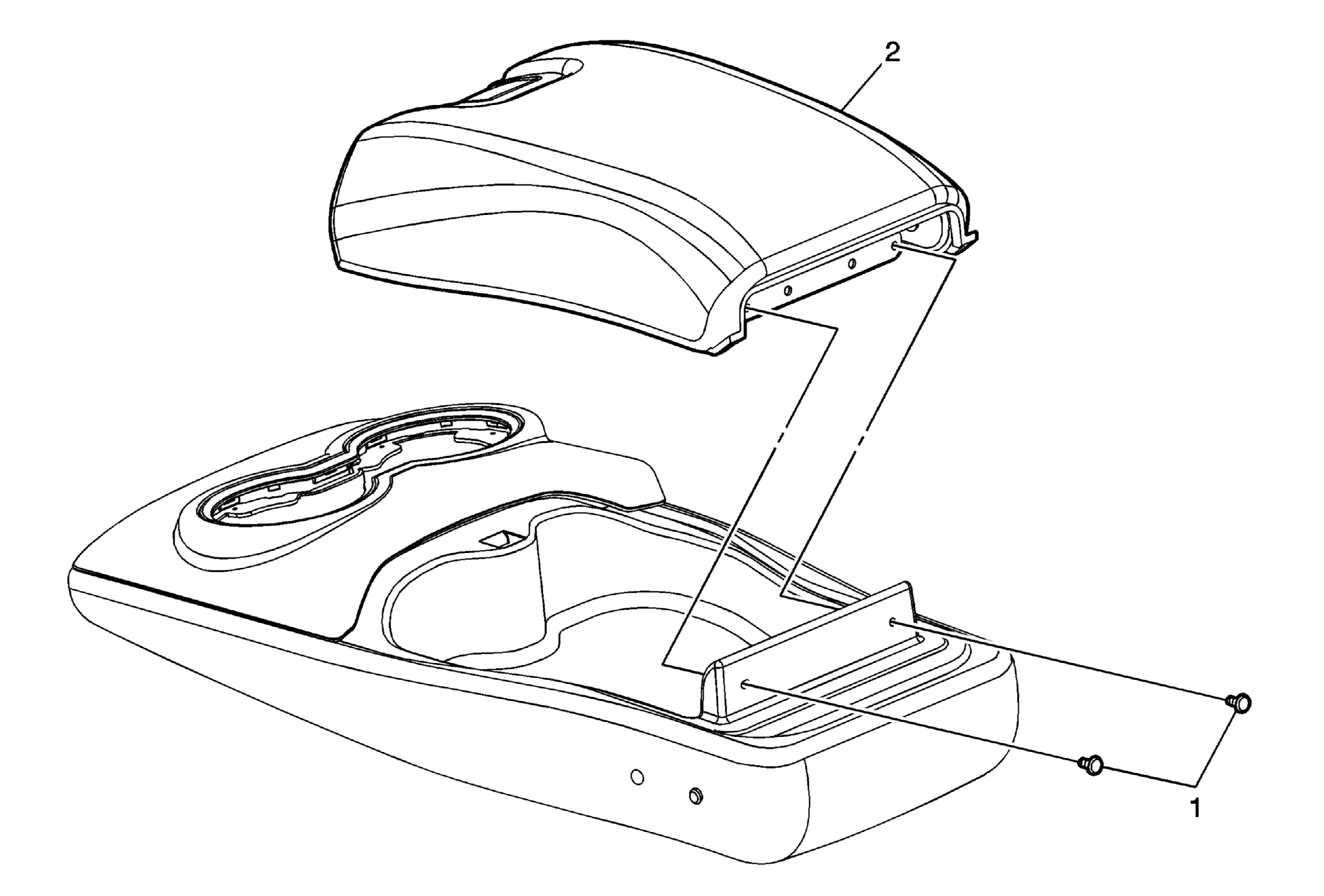

Fig 1: View Of Rear Seat Armrest Cover & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Armrest Cover Retainer (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (25 lb in) Procedure Fold down the armrest and close the armrest cover to gain access to the hinge fasteners.
2	Rear Seat Armrest Cover Procedure Transfer components as necessary
