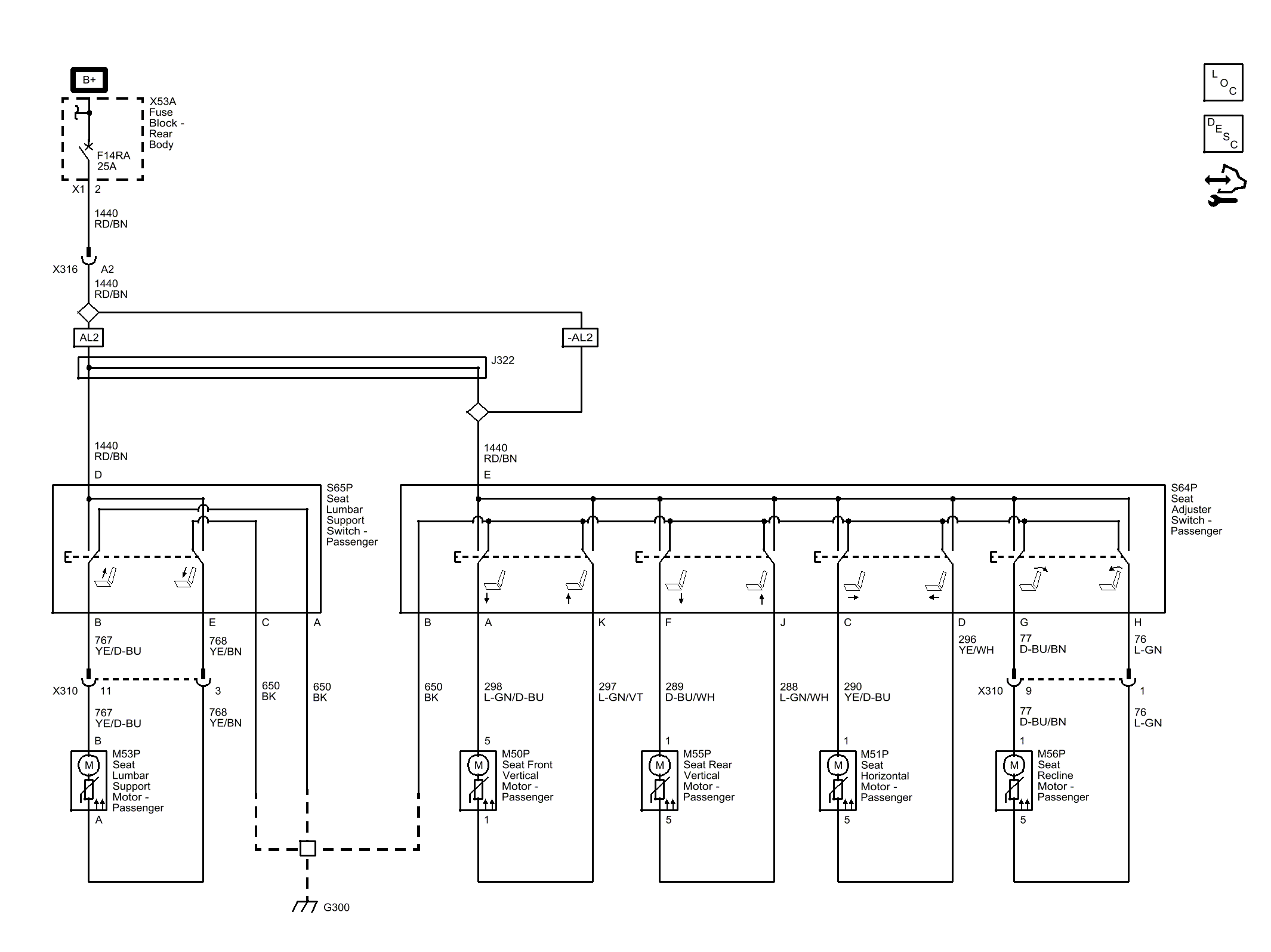

Home >> Cadillac >> 2014 >> SRX Performance, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Power Seat System >> Schematic Wiring Diagrams >> Passenger Seat Wiring Schematics >> Power Seat (AG2)
