Headlamp Bulb Replacement - Left Side (T84, T85)

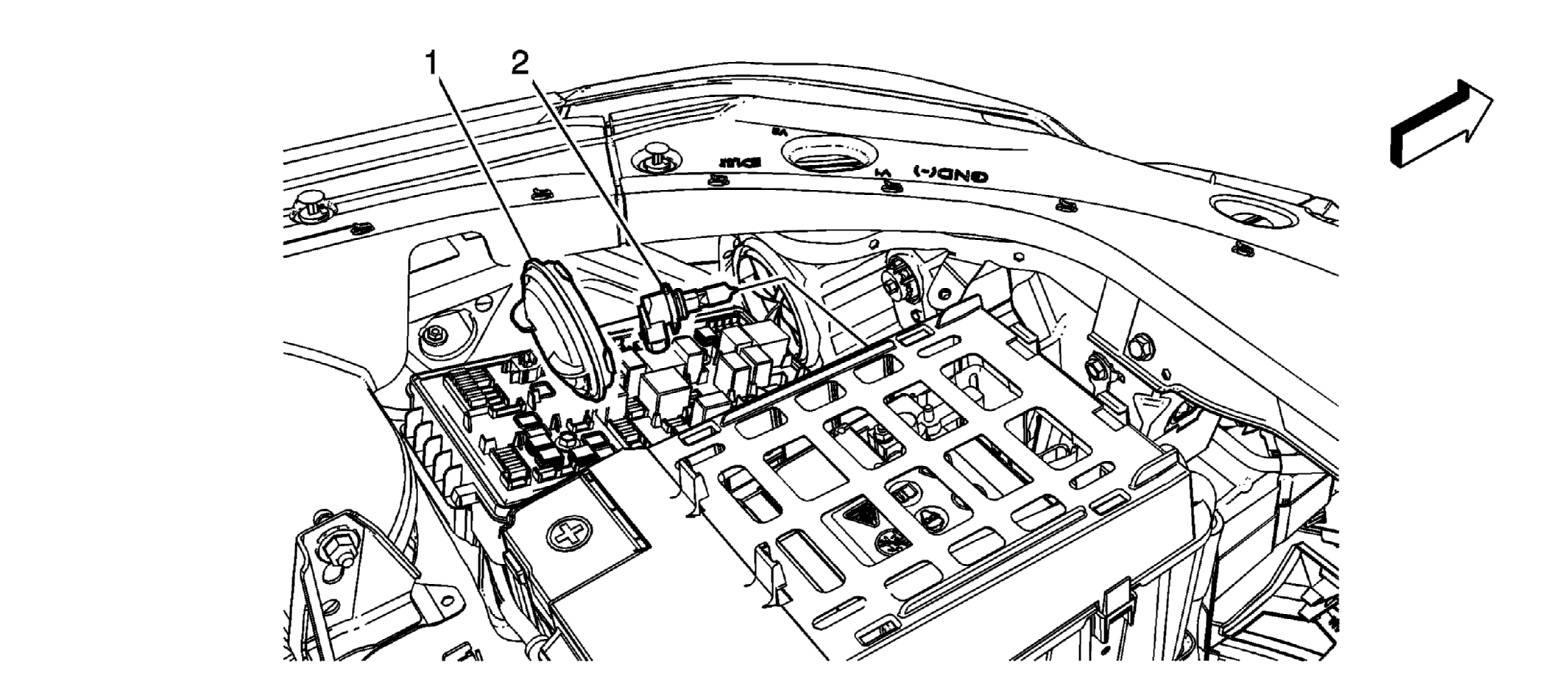

Fig 1: Identifying Headlamp Bulb - Left Side (T84, T85)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the under electrical center (UEC) cover. Disengage the three locking tabs from the cover and remove.
1	Headlamp Bulb Accessory Cover Procedure Rotate the cover counter-clockwise and remove. TIP: Notice the direction of the arrow on the cover, ensure the arrow points downward upon re-installing the cover.
2	Headlamp Bulb (High Beam) WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector prior to removing the headlamp bulb from the headlamp assembly. Rotate the bulb socket counter-clockwise and remove.

Callout

Component Name

Preliminary Procedure

Remove the under electrical center (UEC) cover.
Disengage the three locking tabs from the cover and remove.

Headlamp Bulb Accessory Cover
Procedure
Rotate the cover counter-clockwise and remove.
TIP: Notice the direction of the arrow on the cover, ensure the arrow points downward upon re-installing the cover.

Headlamp Bulb (High Beam)

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Disconnect the electrical connector prior to removing the headlamp bulb from the headlamp assembly.
Rotate the bulb socket counter-clockwise and remove.
