Luggage Carrier Cross Rail Replacement

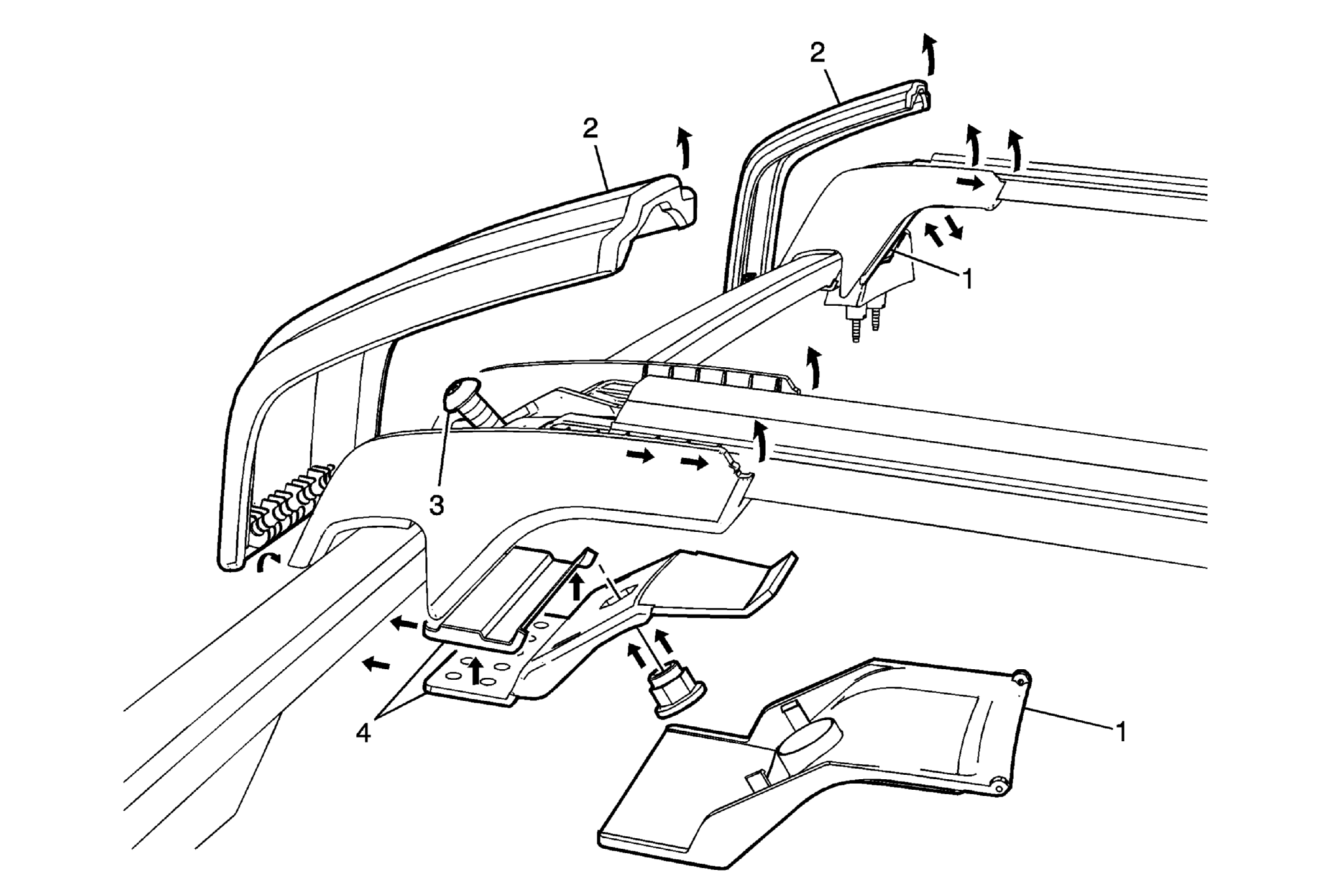

Fig 1: Identifying Luggage Carrier Cross Rail & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Luggage Carrier Cross Rail Clamp Cover (Qty: 4)
2	Luggage Carrier Cross Rail Cover (Qty: 4) Procedure Slide the luggage carrier cover forward, pull upward releasing the front tabs of the cover from the front support. Do this for all four covers. Ensure that the retainers on the luggage carrier cover is fully seated when closed.
3	Luggage Carrier Cross Rail Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Do Not remove the bolt all the way out from luggage carrier clamp, loosen. Tighten 10 N.m (89 lb in)
4	Luggage Carrier Cross Rail Clamp and Insulator (Qty: 4) TIP: The clamp and insulator stay together to secure the cross rail to the roof side rail.
