Instrument Panel Compartment Door Dampener Replacement (Lower Compartment)
Instrument Panel Compartment Door Dampener Replacement (Lower Compartment)

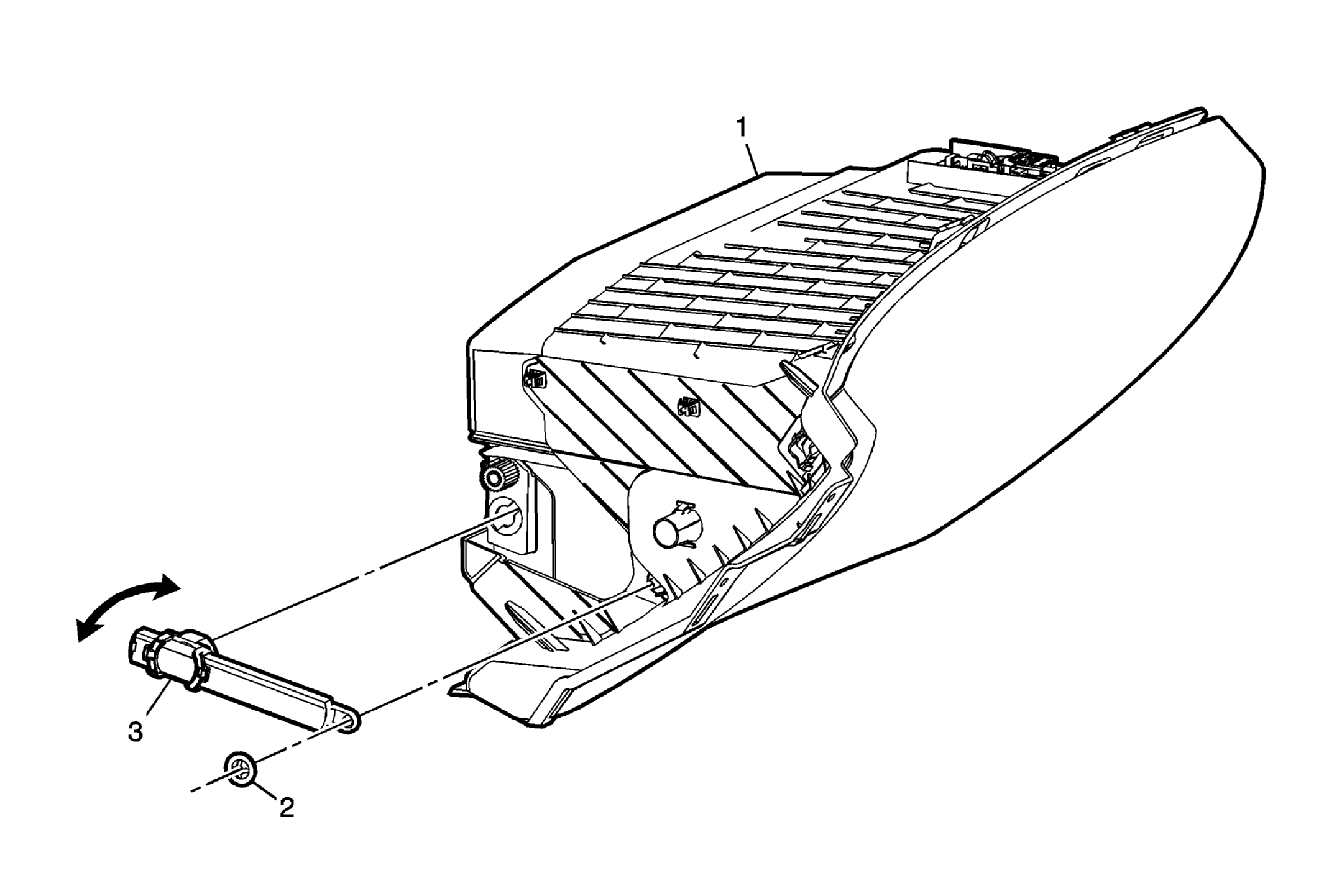

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Compartment Assembly Refer to Instrument Panel Compartment Replacement . |
| 2 | Instrument Panel Compartment Door Dampener Fastener |
| 3 | Instrument Panel Compartment Door Dampener Procedure Rotate the compartment door dampener assembly while pulling outward to remove the dampener from the instrument panel compartment assembly |
