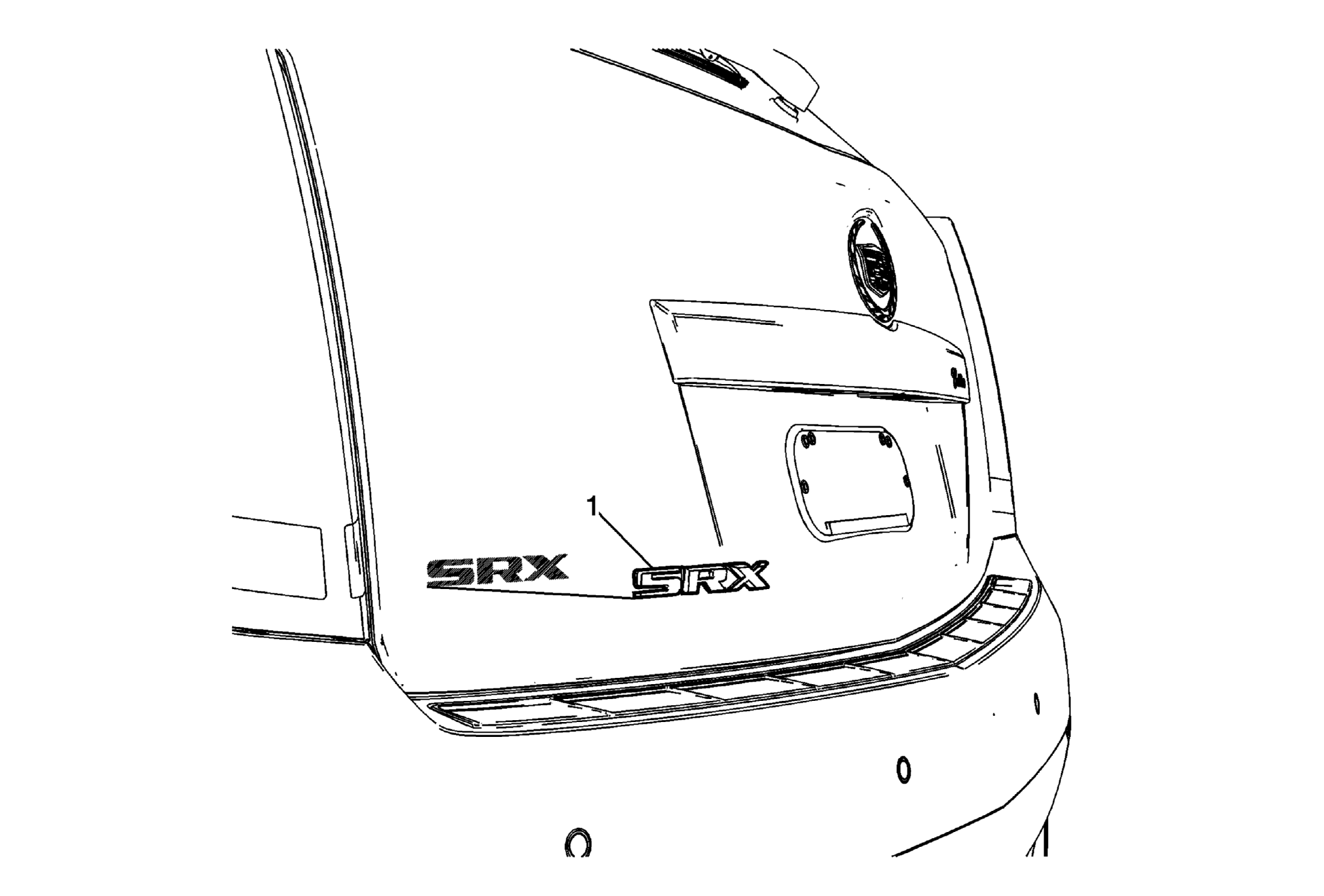

Liftgate Emblem/Nameplate Replacement (SRX)

Procedure

1. The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
2. Use a J 25070  Heat Gun or equivalent to remove the old nameplate.
3. Clean all adhesive from the liftgate and wipe the surface dry with a clean lint-free towel prior to installing the new nameplate.
4. Ensure the liftgate is in the closed position.
5. When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
6. Position and adhere the new nameplate to the liftgate.
7. Using the palm of the hand, wet out the nameplate to the liftgate to ensure full adhesion of the nameplate is made.
