Rear Side Door Window Belt Reveal Molding Replacement

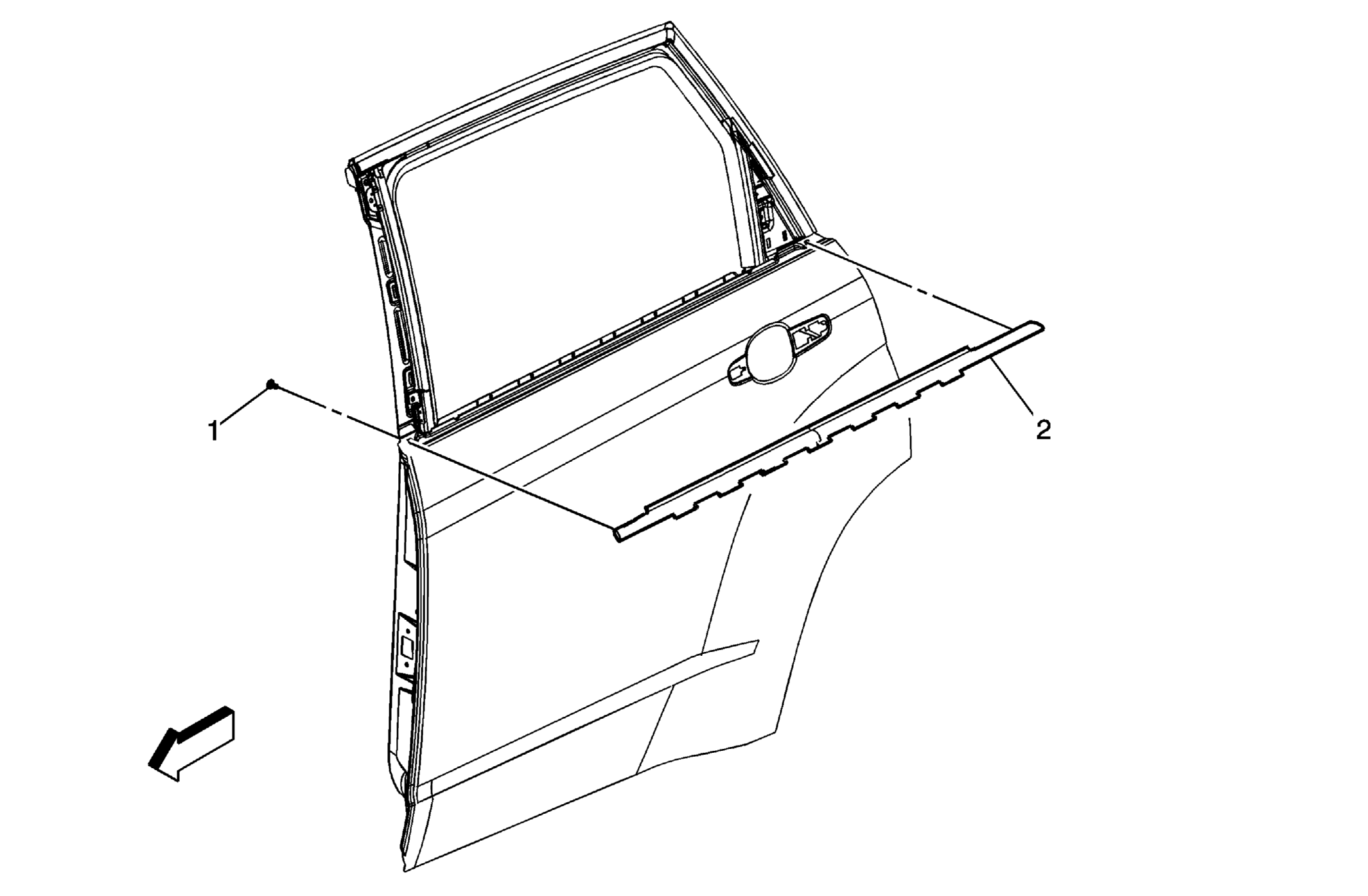

Fig 1: View Of Rear Door Window Belt Outer Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Window Belt Reveal Molding Screws (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 1.5 N.m (13 lb in)
2	Rear Side Door Window Belt Reveal Molding Procedure Remove the belt reveal molding by lifting up at one end, working from the rear of the door. When re-installing, align belt reveal fastener location with hole in door structure and outer panel retaining tabs. Start at rear of belt reveal molding, push down onto flange until fully seated.

Callout

Component Name

Rear Side Door Window Belt Reveal Molding Screws (Qty: 2)

CAUTION:

Tighten
1.5 N.m (13 lb in)

Rear Side Door Window Belt Reveal Molding

Procedure

Remove the belt reveal molding by lifting up at one end, working from the rear of the door.
When re-installing, align belt reveal fastener location with hole in door structure and outer panel retaining tabs.
Start at rear of belt reveal molding, push down onto flange until fully seated.
