Dome/Reading and Sunshade Lamps, and Passenger Air Bag Disable

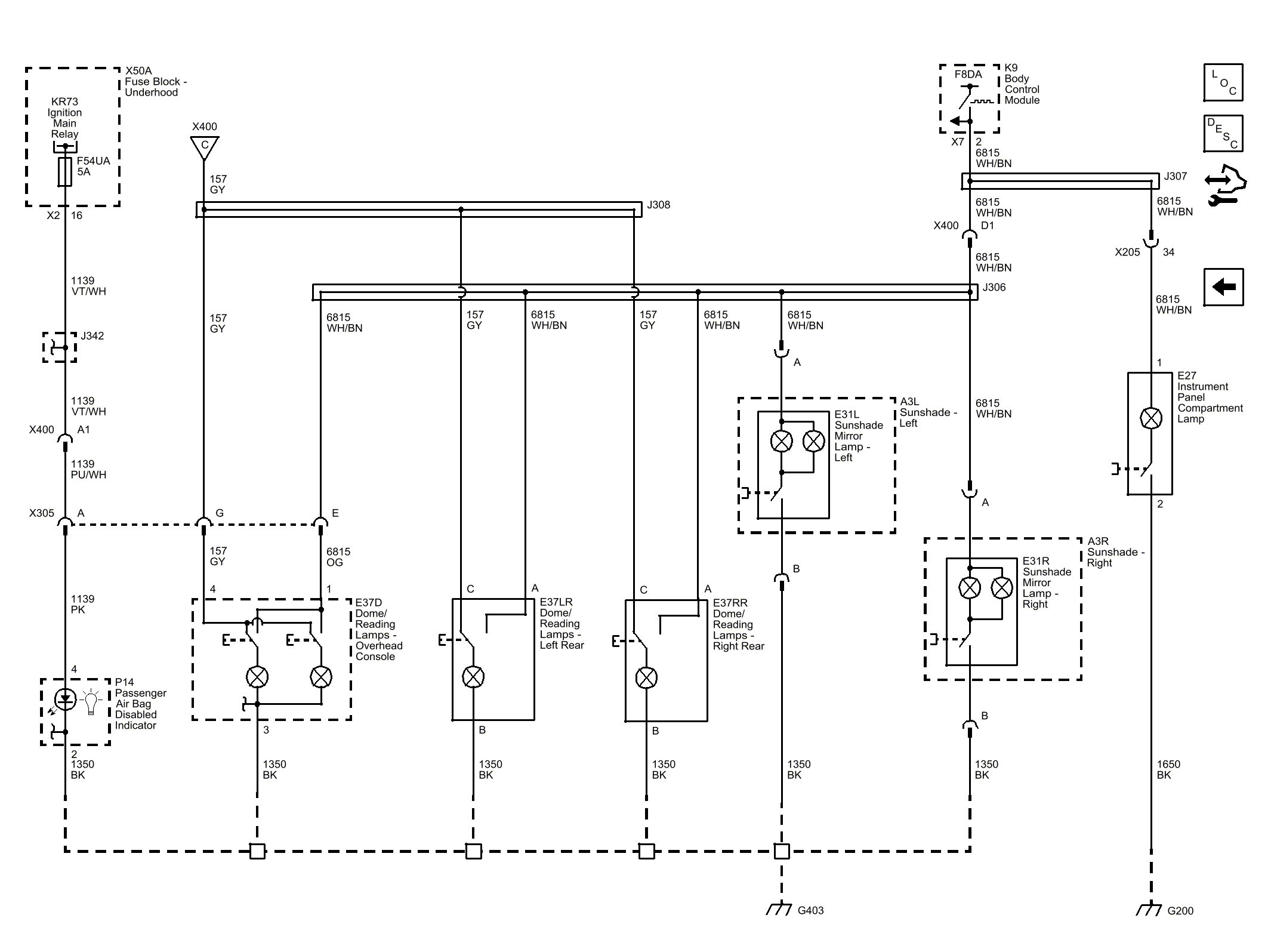

Fig 1: Dome/Reading and Sunshade Lamps, and Passenger Air Bag Disable Wiring Schematic

GM3412629

Courtesy of GENERAL MOTORS COMPANY
