Courtesy and Cargo Lamps

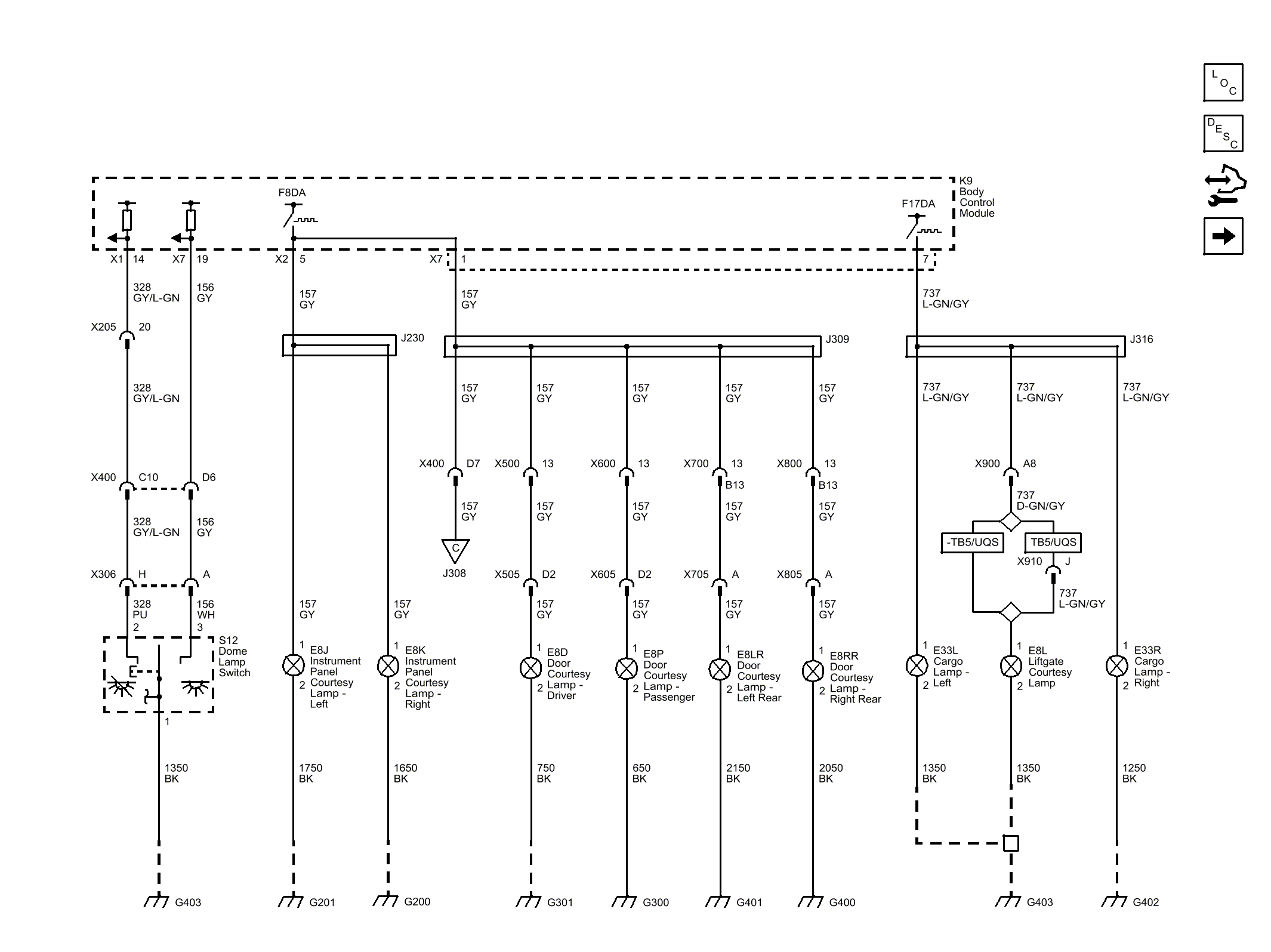

Fig 1: Courtesy and Cargo Lamps Wiring Schematic

GM3412628

Courtesy of GENERAL MOTORS COMPANY
