Interior Lights Dimming Wiring Schematics: Roof

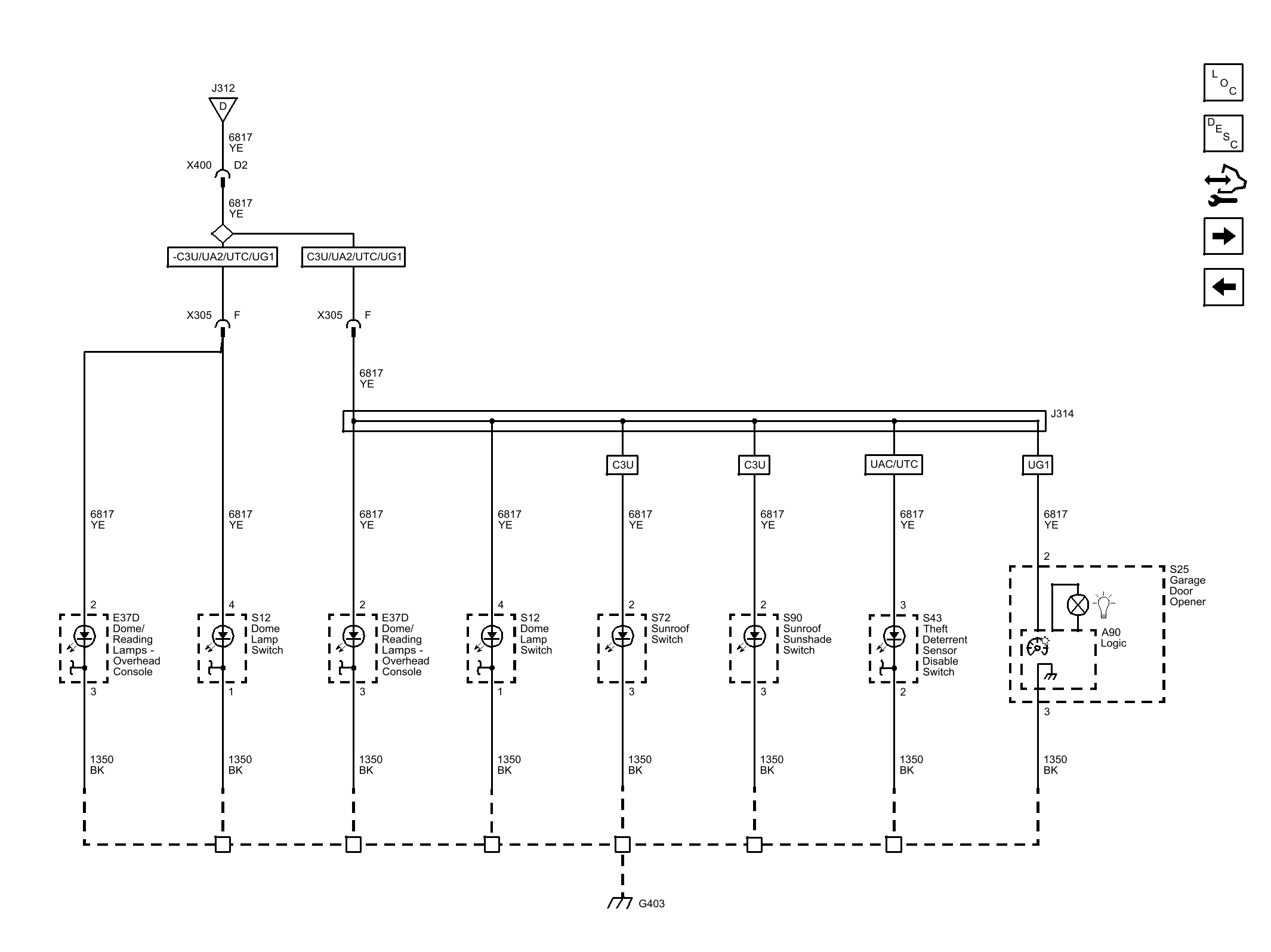

Fig 1: Roof Wiring Schematic

GM3412633

Courtesy of GENERAL MOTORS COMPANY
