Accent, Seat Courtesy, and Door Sill Plate Lamps

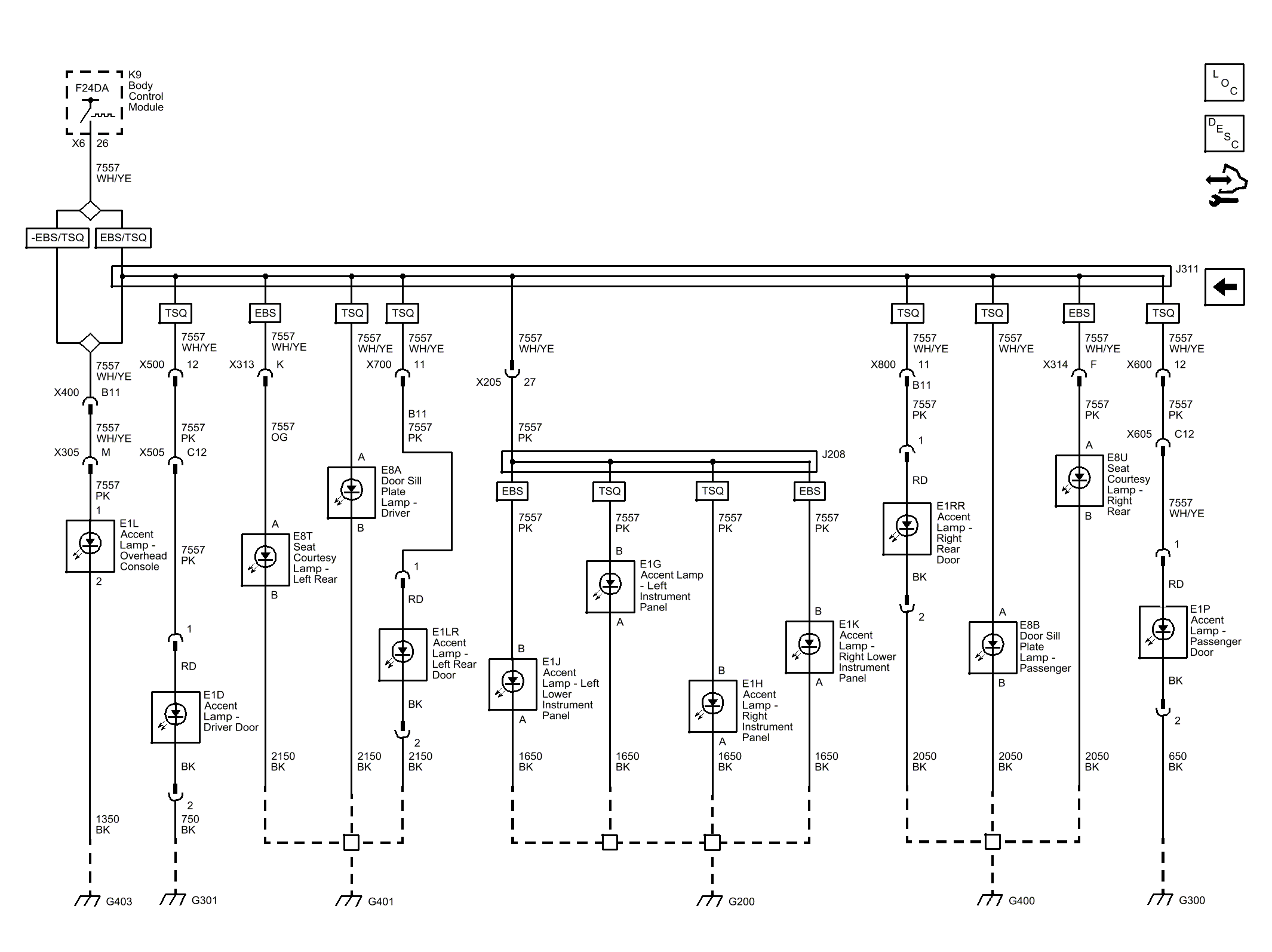

Fig 1: Accent, Seat Courtesy, and Door Sill Plate Lamps Wiring Schematic

GM3412635

Courtesy of GENERAL MOTORS COMPANY
