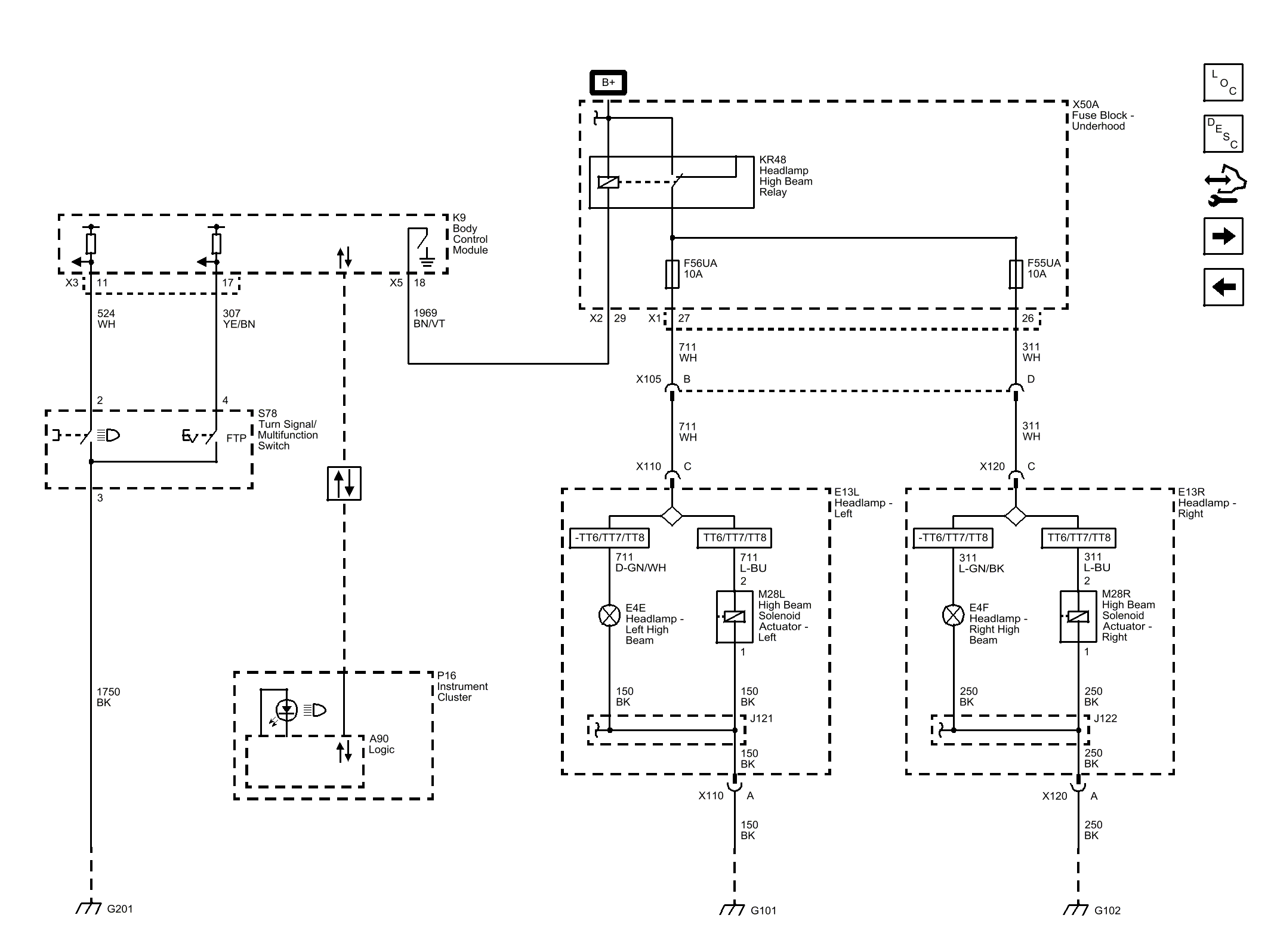

Home >> Cadillac >> 2014 >> SRX Performance, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Headlights/Daytime Running Lights (DRL) Wiring Schematics >> High Beams
