Automatic Headlamp Leveling and Steering (TT6, TT7, or TT8)

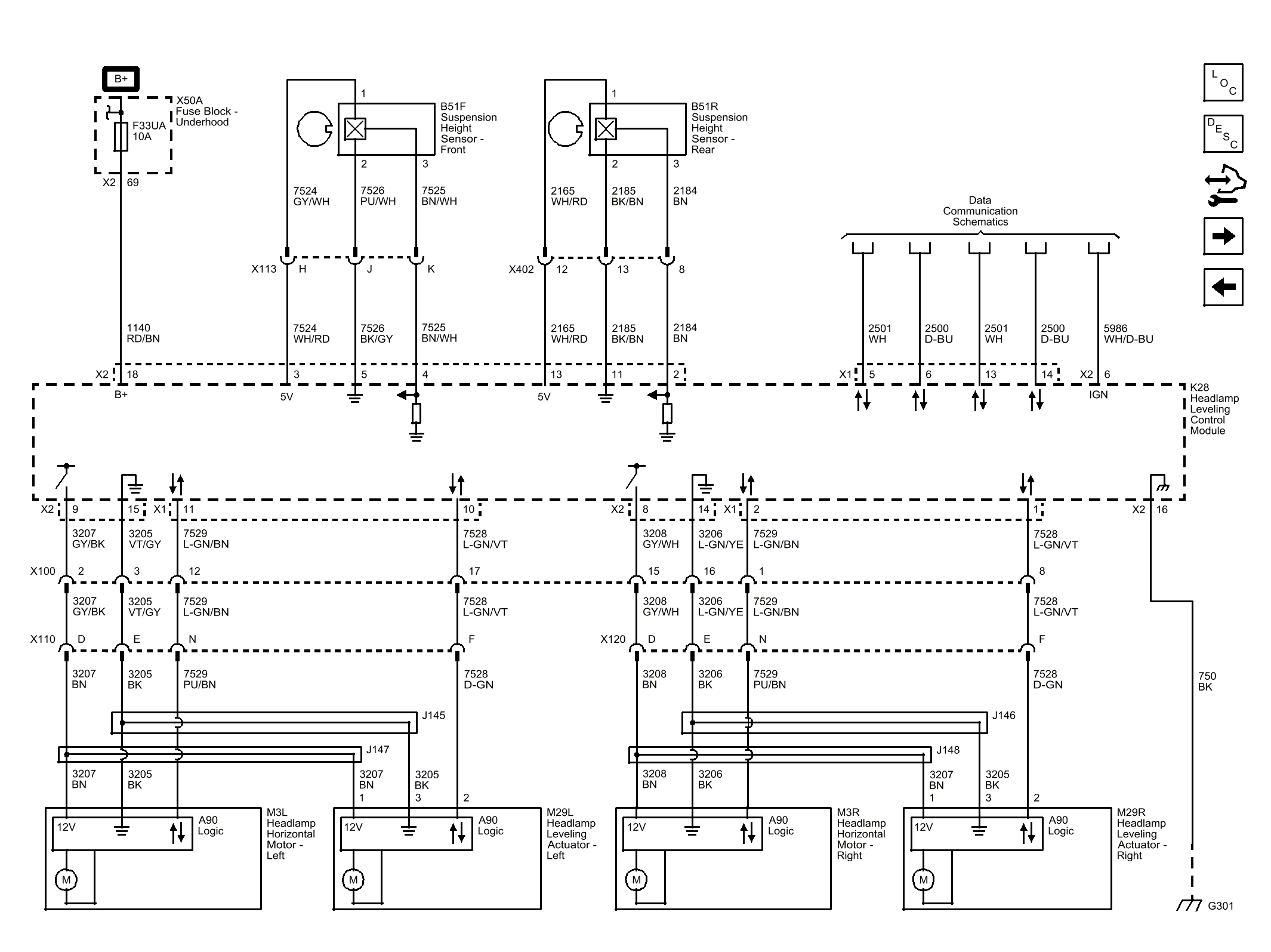

Fig 1: Automatic Headlamp Leveling and Steering Wiring Schematic (TT6, TT7, or TT8)

GM3412616

Courtesy of GENERAL MOTORS COMPANY
