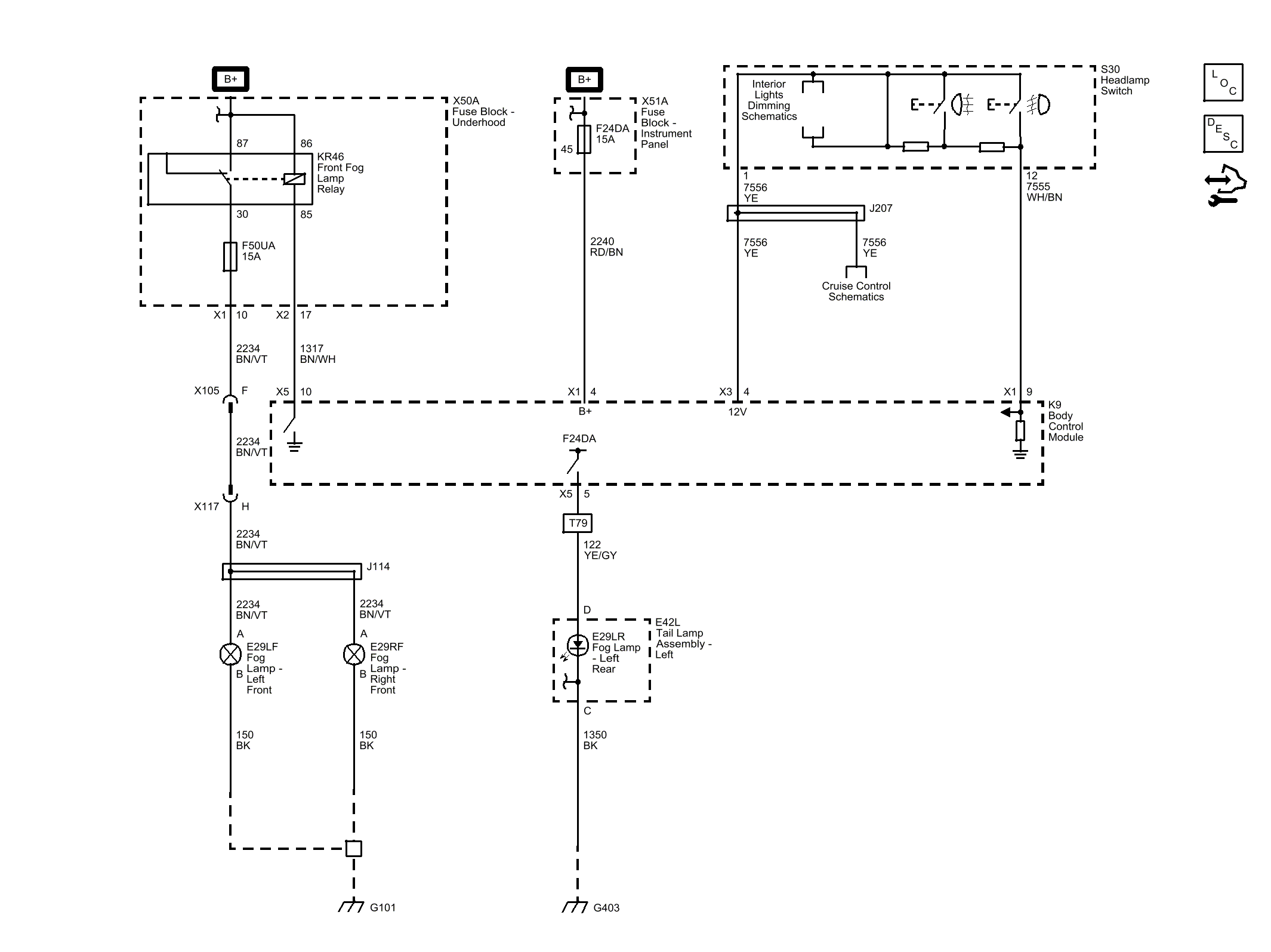

Home >> Cadillac >> 2014 >> SRX Performance, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Fog Lights Wiring Schematics >> Front (T96) and Rear (T79)
