Turn Signal Lamps Controls and Indicators

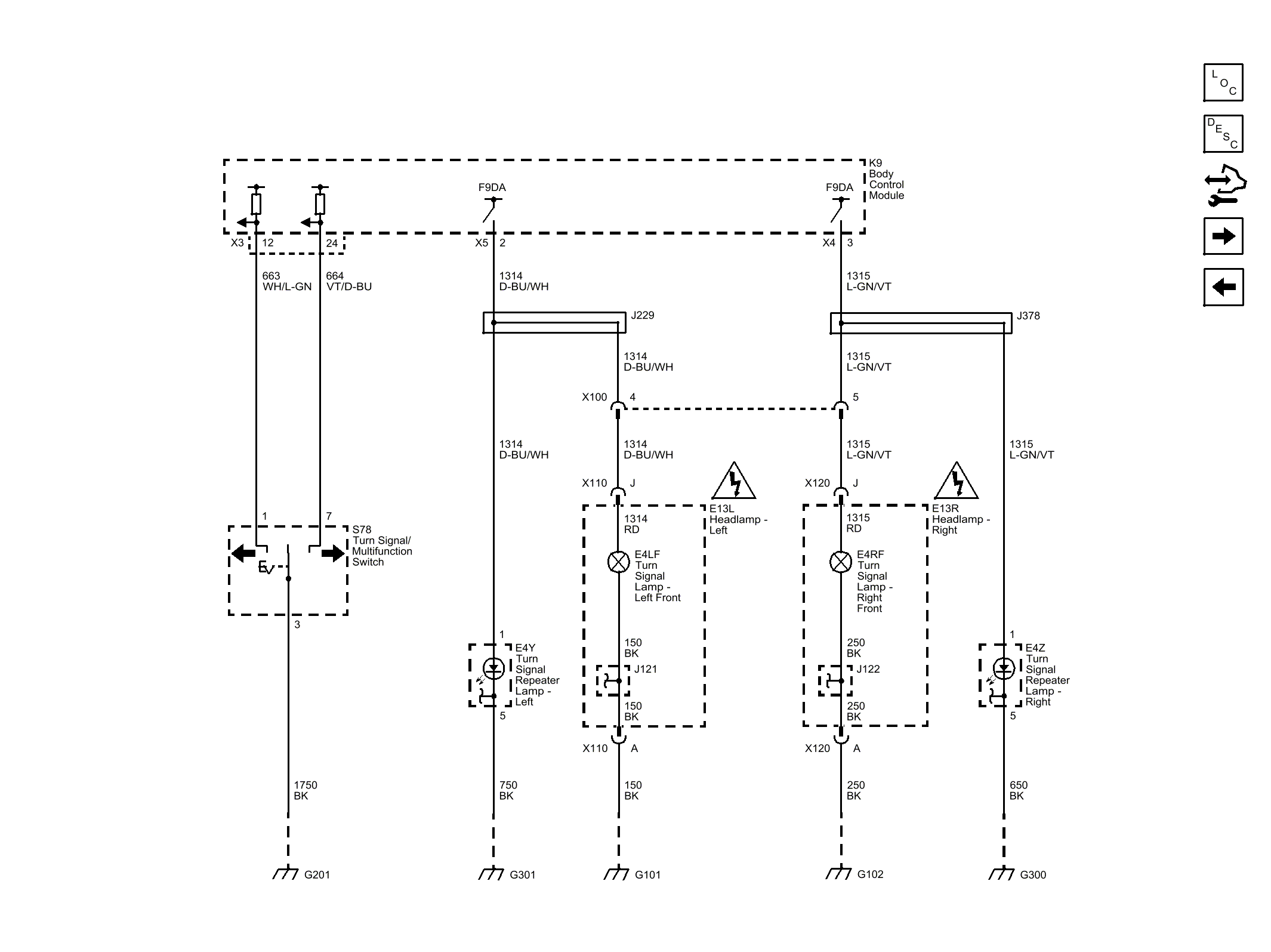

Fig 1: Turn Signal Lamps Controls and Indicators Wiring Schematic

GM3412624

Courtesy of GENERAL MOTORS COMPANY
