Front Turn Signal Lamp Bulb Replacement (TT6,TT7,TT8 Passenger Side Headlamp)

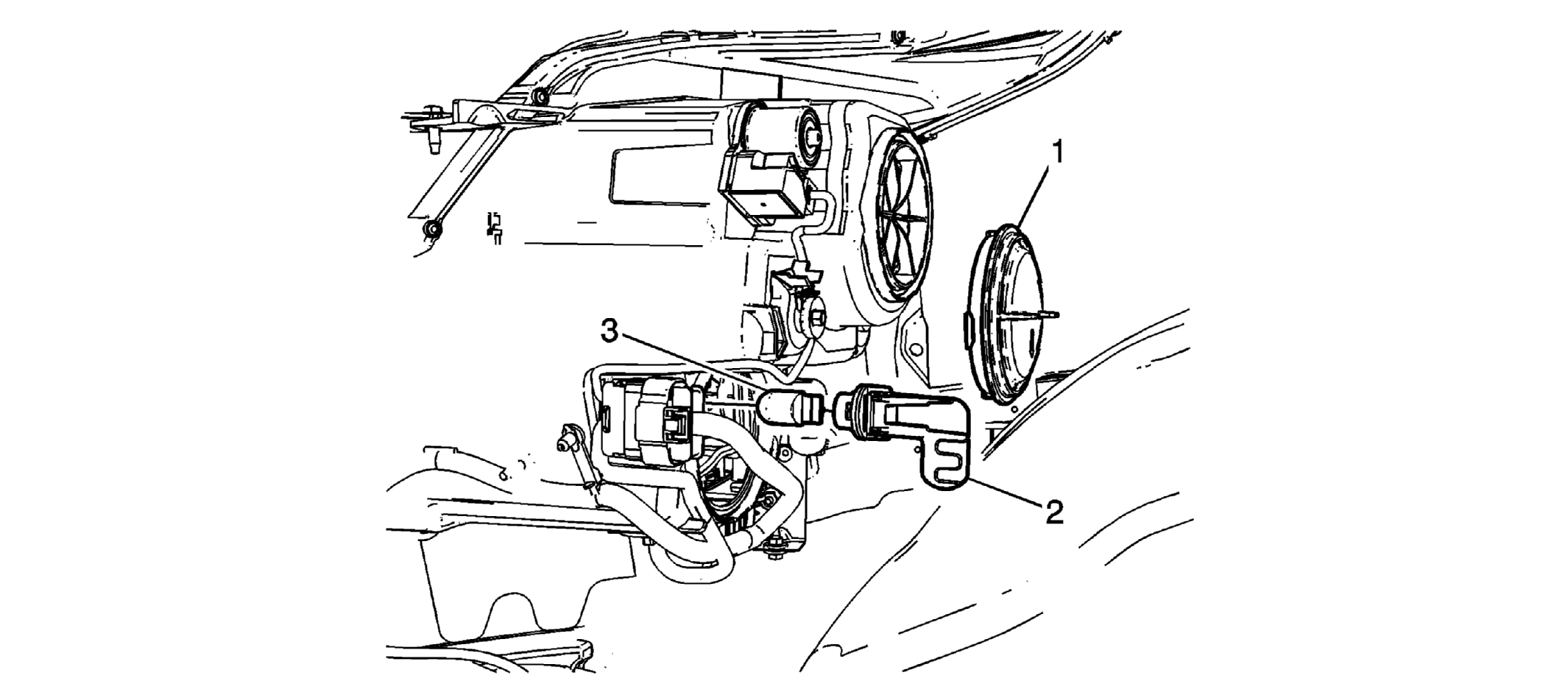

Fig 1: Identifying Front Turn Signal Lamp Bulb (TT6,TT7,TT8 Passenger Side Headlamp)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns: Never open the high intensity discharge system ballast or the arc tube assembly starter. Never probe between the high intensity discharge system ballast output connector and the arc tube assembly. WARNING: The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system. Preliminary Procedure Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Headlamp Bulb Access Cover
2	Park Turn Signal Bulb Socket Procedure Rotate the park turn signal bulb socket counter-clockwise and remove.
3	Park Turn Signal Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Pull the park turn signal bulb from the bulb socket and replace.
