Daytime Running Lamp Bulb Replacement (T84, T85 Passenger Side Headlamp)
Daytime Running Lamp Bulb Replacement (T84, T85 Passenger Side Headlamp)

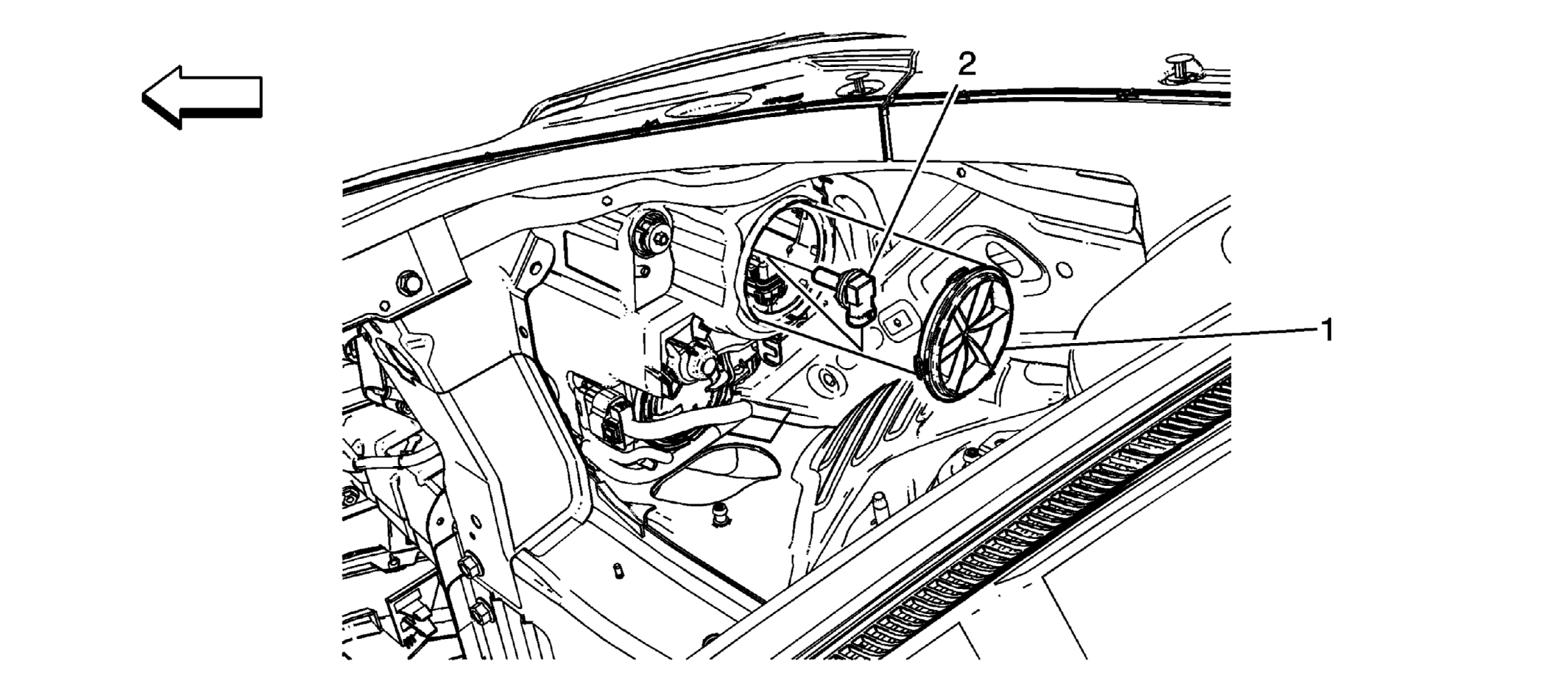

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . |
|
| 1 | Headlamp Bulb Accessory Cover TIP: Rotate the cover counter-clockwise and remove. |
| 2 | Daytime Running Lam / Low Beam Headlamp Bulb
WARNING:
Refer to Halogen Bulb Warning . TIP: Disconnect prior to removing the headlamp bulb from the headlamp housing. Procedure Rotate the bulb socket counter-clockwise and remove. |
