Intrusion Sensor, Switch and Theft Deterrent Alarm Siren (UA2 or UTC)

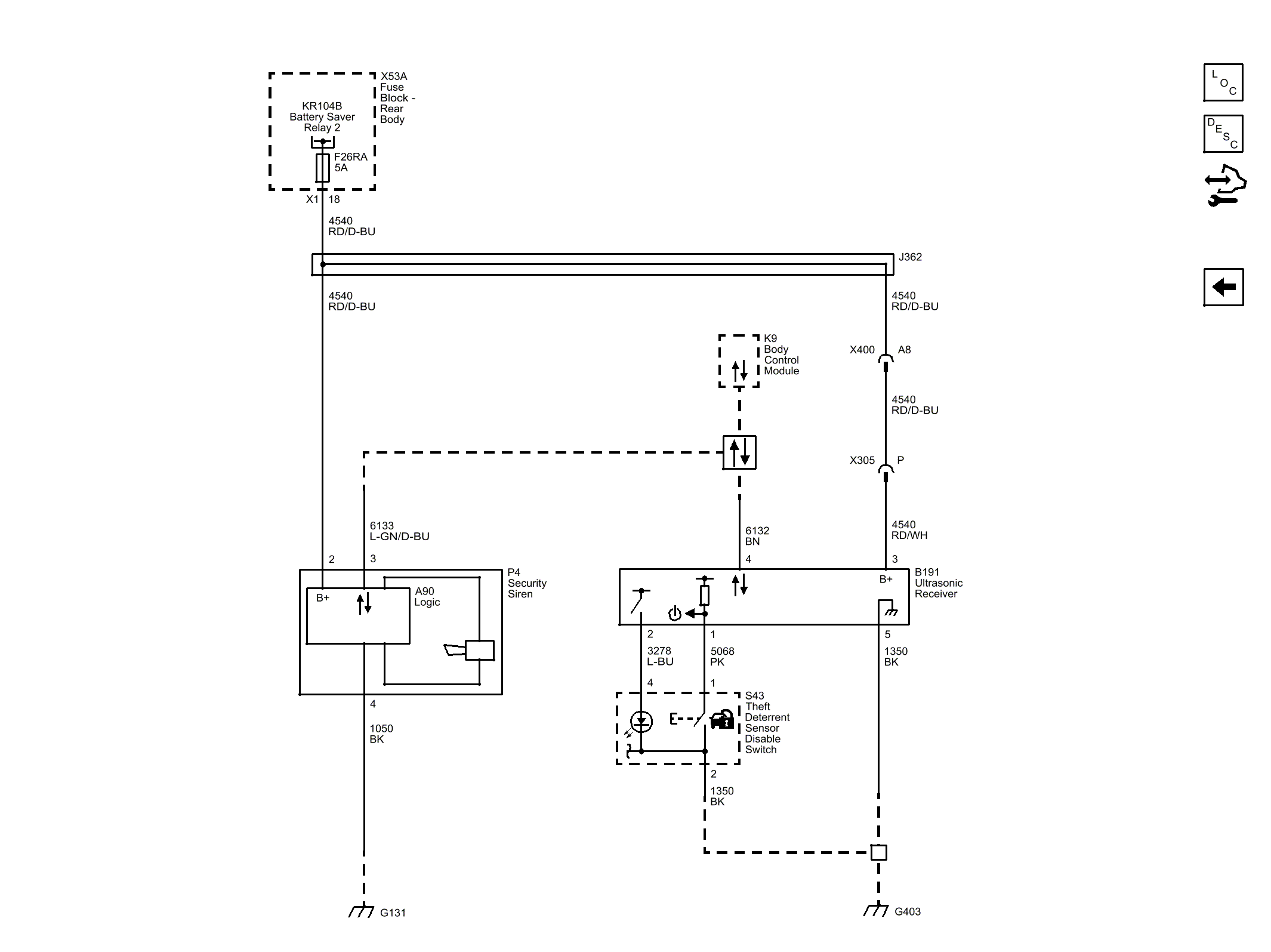

Fig 1: Intrusion Sensor, Switch and Theft Deterrent Alarm Siren Wiring Schematic (UA2 or UTC)

GM3412901

Courtesy of GENERAL MOTORS COMPANY
