Water in Fuel Sensor (Diesel)

WARNING: This page is about a different car, the 2014 GMC Sierra 3500 HD, 2014 GMC Sierra 2500 HD, 2014 Chevrolet Silverado 3500 HD, and 2014 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

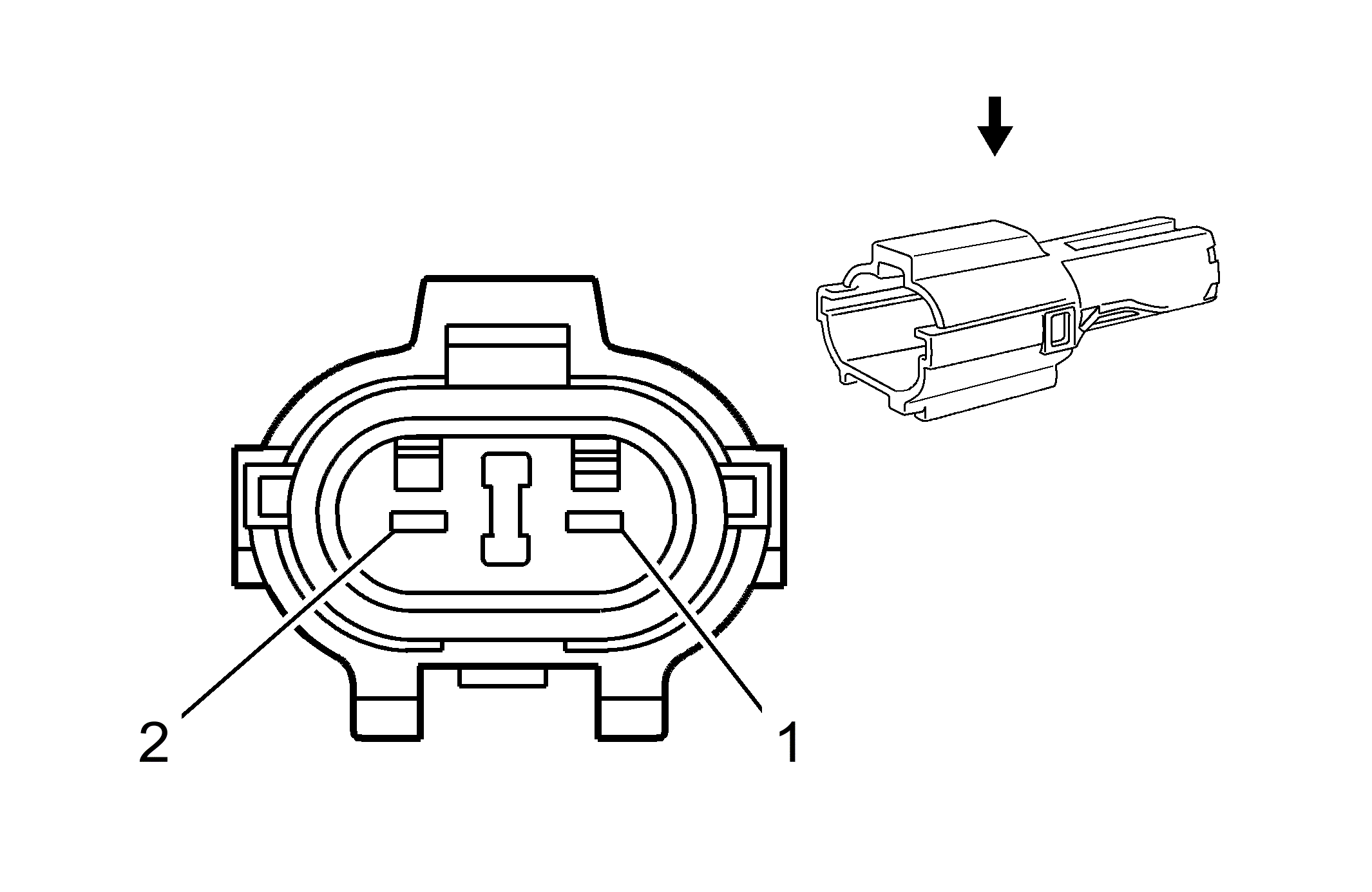

GM2482440Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 7322-1424-40
  • Service Connector: 94447499
  • Description: 2-Way F (L-GY)
Terminal Part Information
  • Terminal/Tray: 7114-1471/12
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: J-38125-12A/J-35616-34 (YE)
Water in Fuel Sensor (Diesel)

Pin Wire Circuit Function
1 0.5 D-BU 6863 Low Reference
2 0.5 D-BU/YE 6861 Water in Fuel Sensor Signal
