Turbocharger Vane Position Control Solenoid Valve (Diesel)

WARNING: This page is about a different car, the 2014 GMC Sierra 3500 HD, 2014 GMC Sierra 2500 HD, 2014 Chevrolet Silverado 3500 HD, and 2014 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

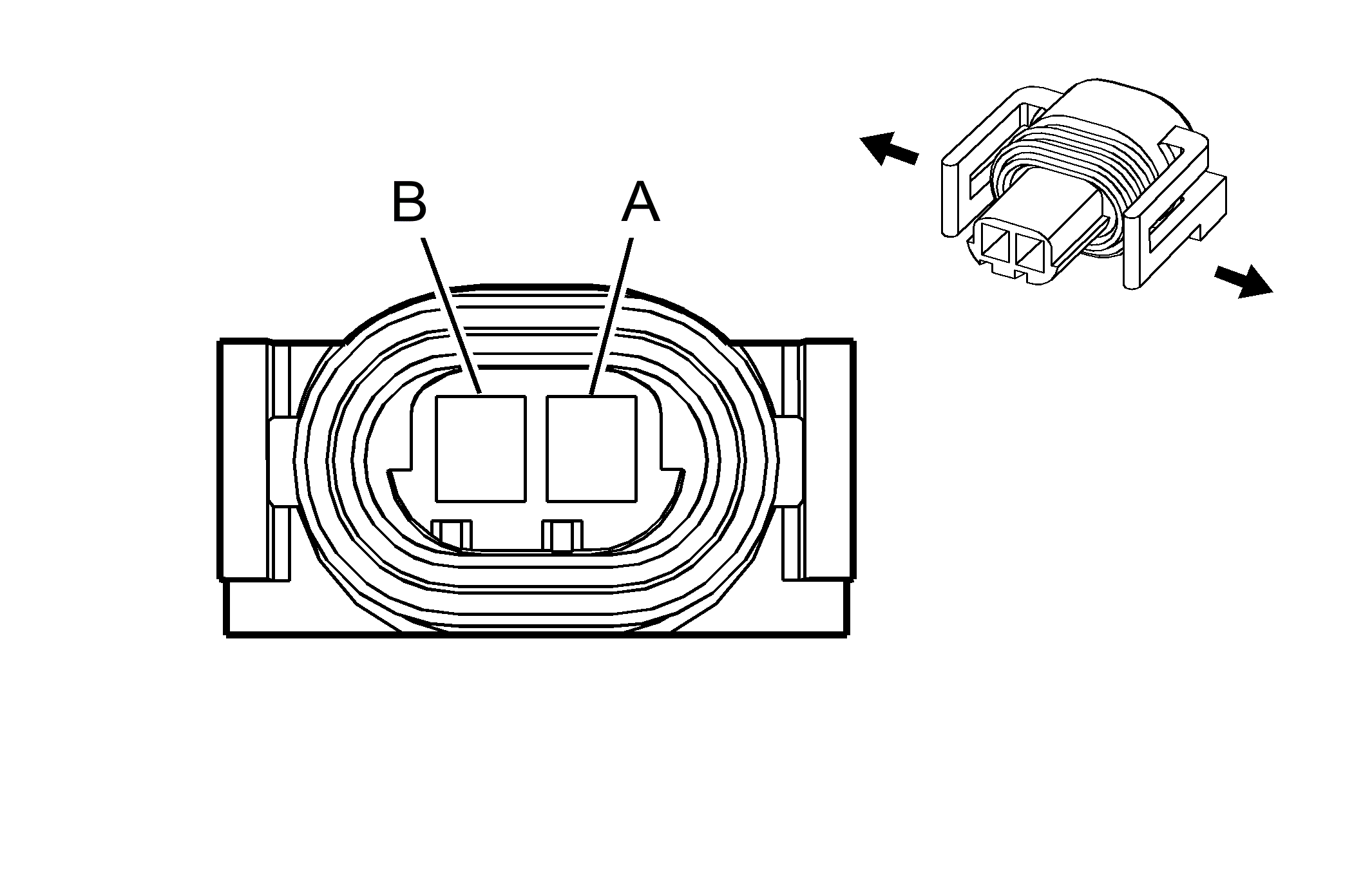

GM2424958Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness: Engine
  • OEM: 12162215
  • Service: 12085496
  • Description: 2-Way F MP 150.2 Series, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 12124075/5
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: J-38125-559/J-35616-14 (GN)
Turbocharger Vane Position Control Solenoid Valve (Diesel)

Pin Wire Circuit Function
A 0.5 D-BU 5930 Turbocharger Vane Position Control Solenoid Valve Control
B 0.5 WH 5931 Low Reference
