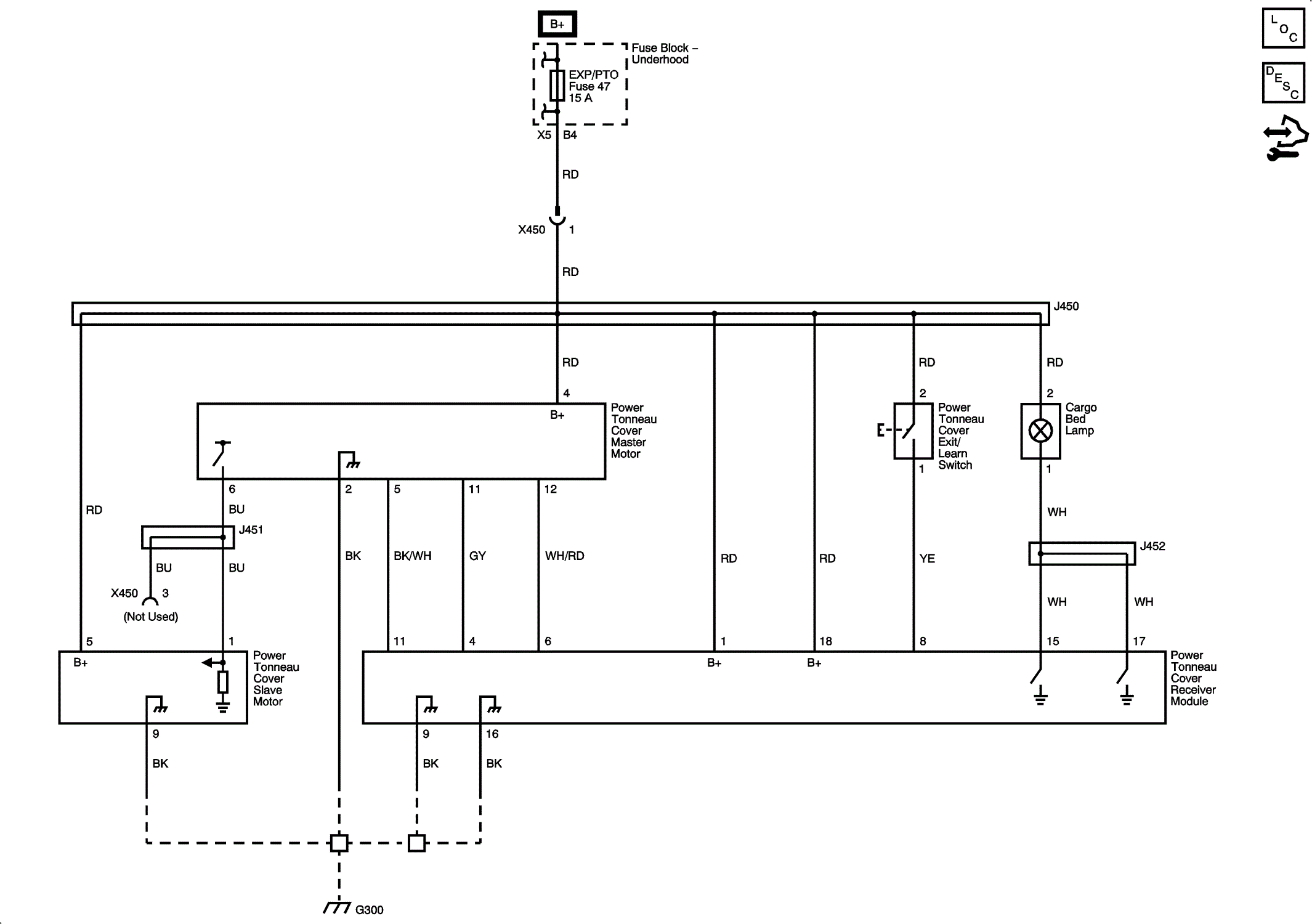

Home >> Cadillac >> 2014 >> Escalade Base, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Bolted Exterior Body Panels And Closures >> Schematic Wiring Diagrams >> Power Tonneau Cover Wiring Schematics >> Power Tonneau Cover (Z75 EXT)
