Instrument Cluster Wiring Schematics: Gages

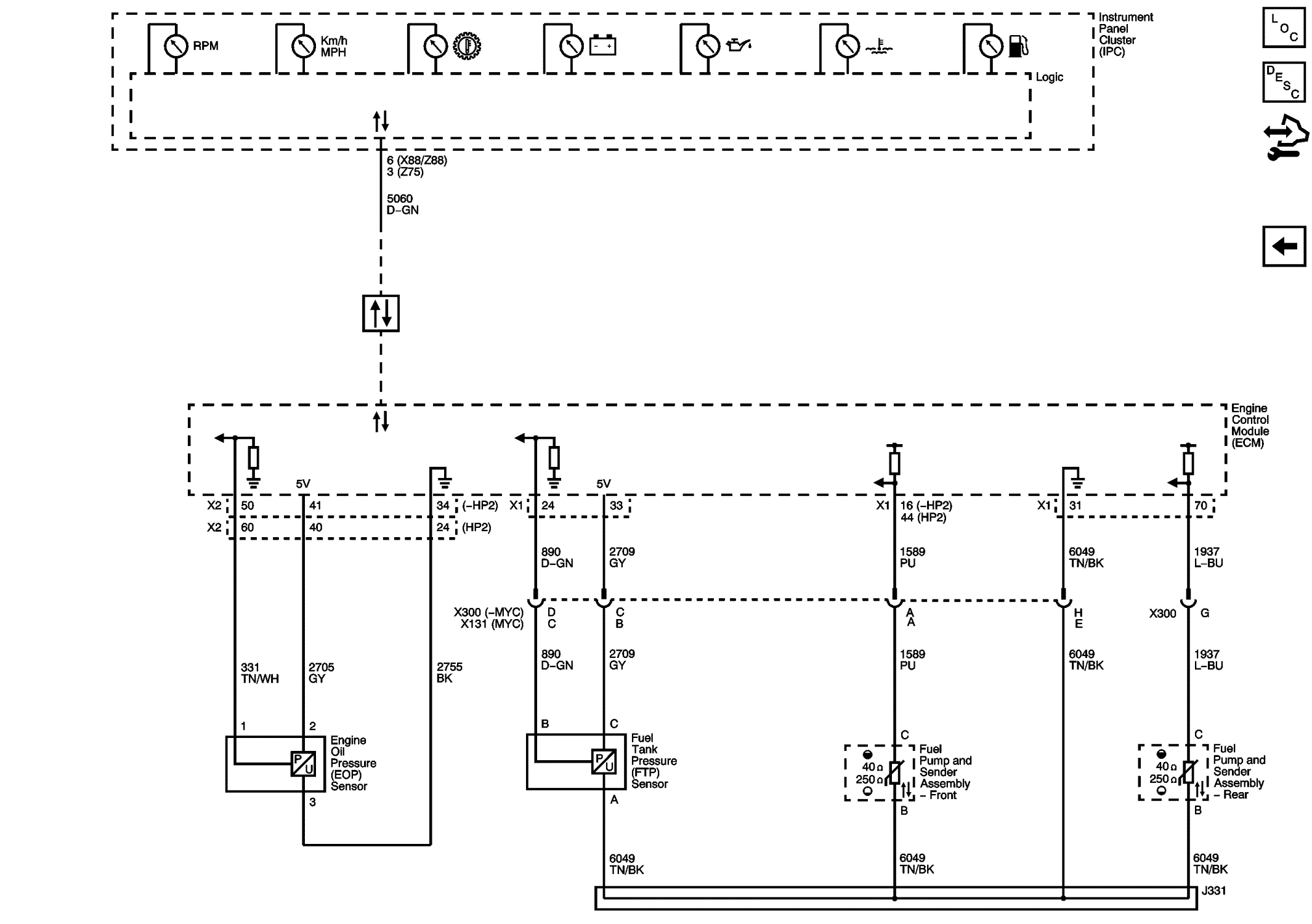

Fig 1: Gages Wiring Schematic

GM2759445

Courtesy of GENERAL MOTORS COMPANY
