Underbody Harness Routing

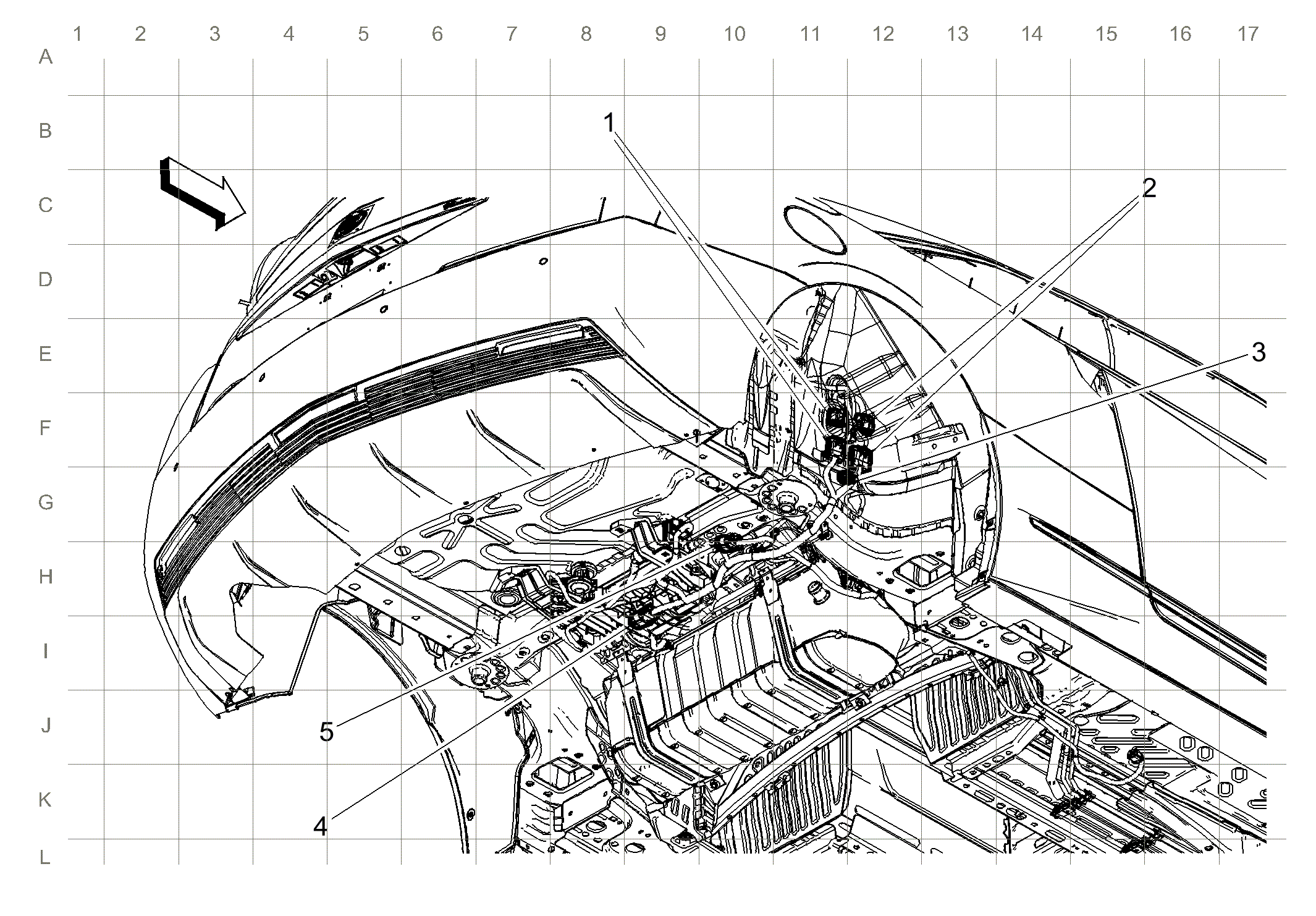

Fig 1: Underbody Harness Routing
GM3617135Courtesy of GENERAL MOTORS COMPANY
Items
1:  X351 X351 Body Harness to EVAP Harness
2:  X350 X350 Body Harness to EVAP Harness
3:  X331 X331 Body Harness to Right Rear Suspension Jumper
4:  X354 X354 EVAP Harness to Fuel Pump Harness
5:  X355 X355 EVAP Harness to Fuel Pressure Harness
