Right Rear of Passenger Compartment Harness Routing

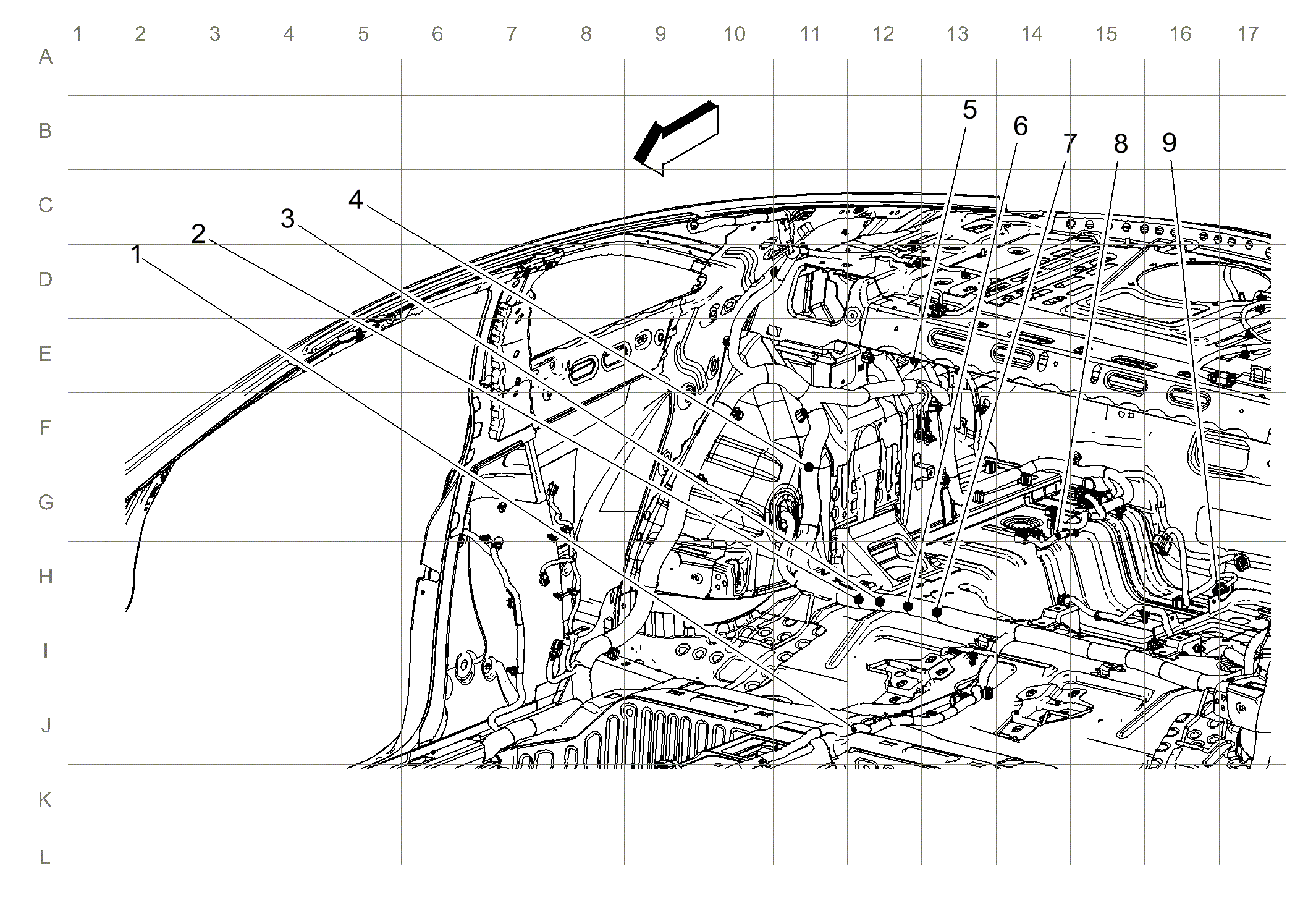

Fig 1: Right Rear of Passenger Compartment Harness Routing
GM3618292Courtesy of GENERAL MOTORS COMPANY
Items
1:  J320
2:  J377
3:  J376
4:  J401
5:  J403
6:  J404
7:  J406
8:  J211
9:  X452 X452 Body Harness to Battery Negative Harness
