Right Front of Passenger Compartment Harness Routing

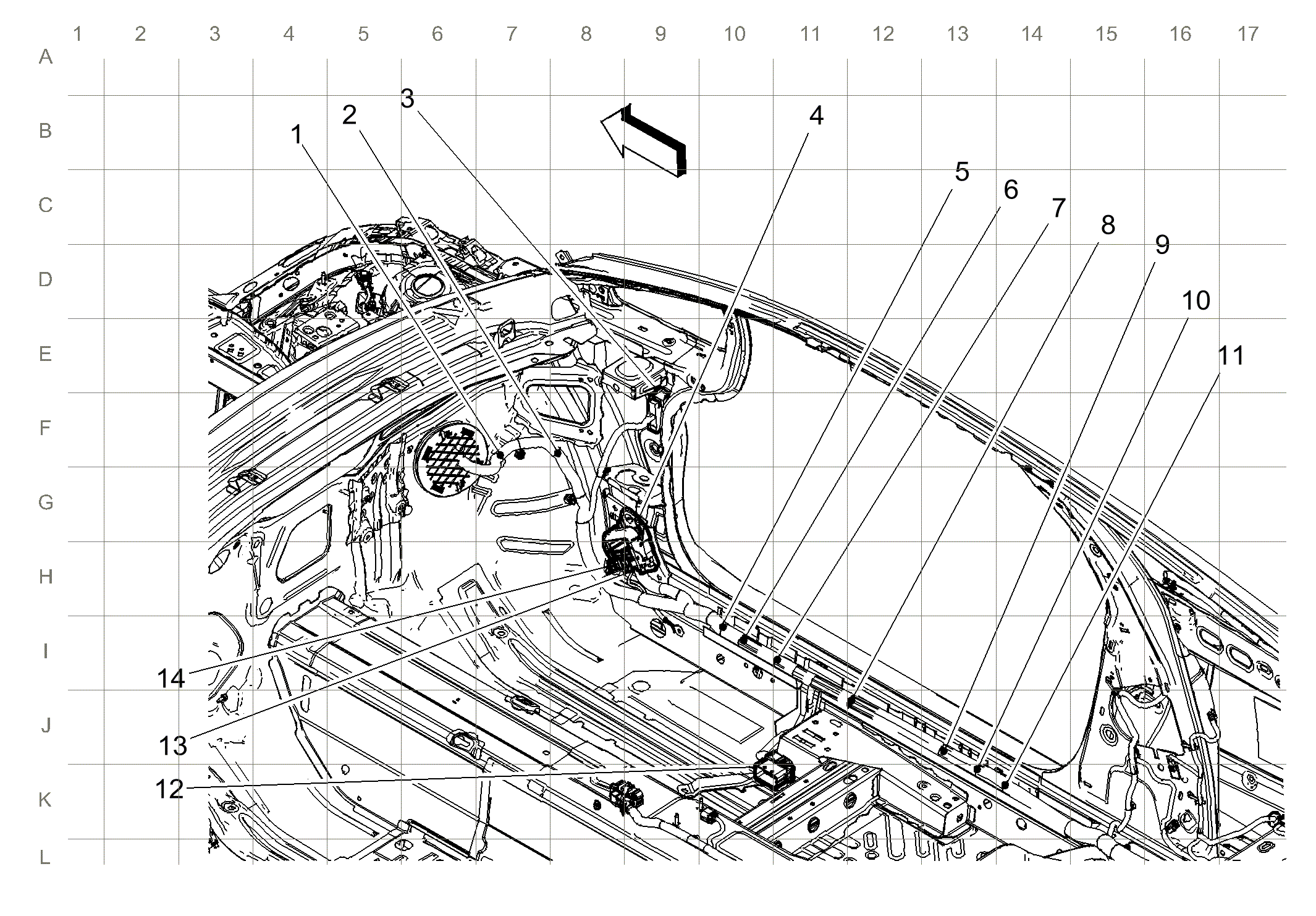

Fig 1: Right Front of Passenger Compartment Harness Routing
GM3617129Courtesy of GENERAL MOTORS COMPANY
Items
1:  J229
2:  J302
3:  X600 X600 Passenger Door Harness to Body Harness
4:  X275 X275 Instrument Panel Harness to Body Harness
7:  J305
8:  J223
9:  J324
10:  J366
11:  J325
12:  J329
13:  J327
14:  X320 X320 Passenger Seat Harness to Body Harness
